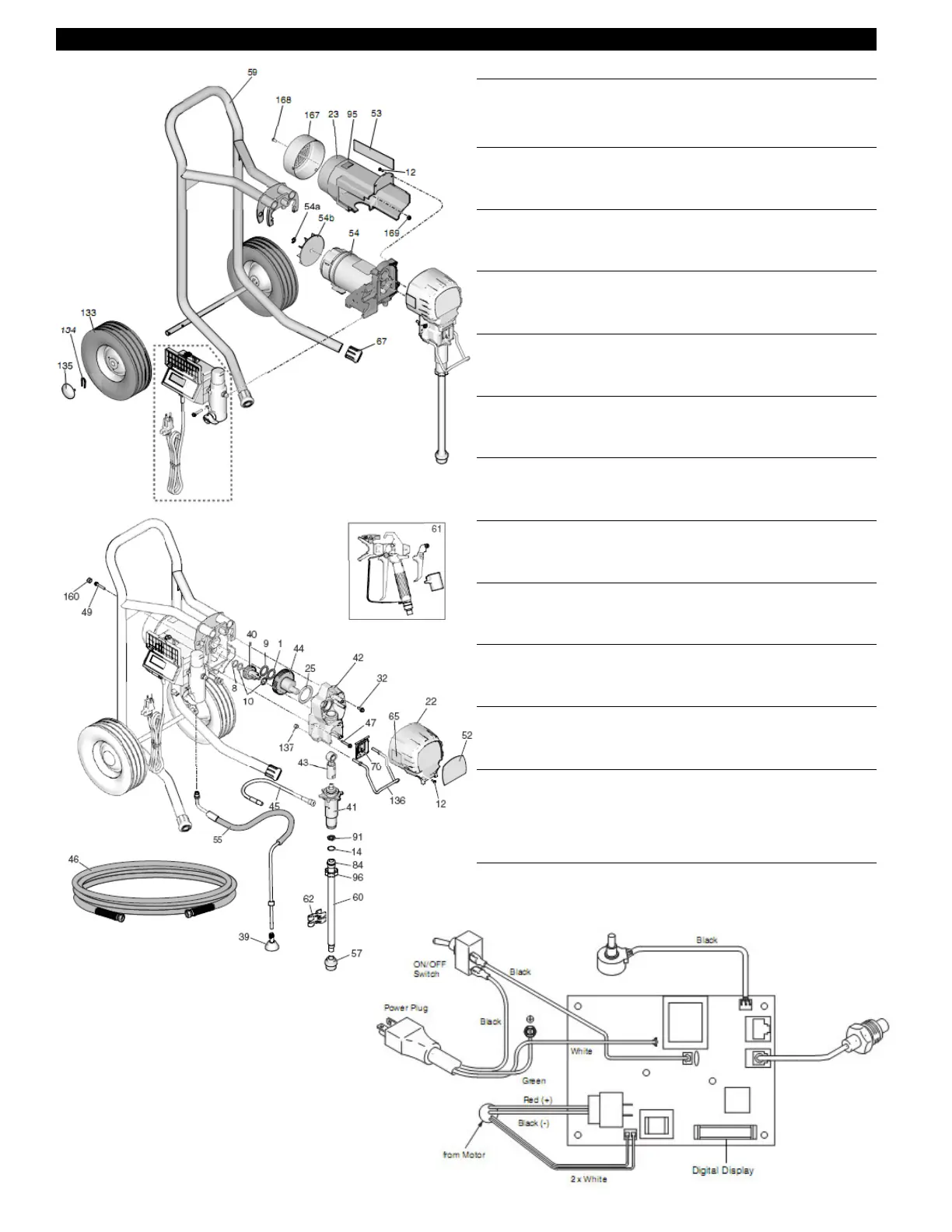

DC-5550 DIAGRAM & PARTS LIST
Jan19
Pos. Part nos. Description Qty.
L045-019 DC-5550 airless piston pump on cart
1 107434 BEARING, thrust 1
8 116073 WASHER, thrust 1
9 116074 WASHER, thrust 1
10 116079 BEARING, thrust 2
12 117501 SCREW, mach, hex washer hd 5
14 103413 O-ring 1
22 17R007 COVER, front, painted 1
23 17N272 KIT, shield, motor, incl 167,168,169 1
25 180131 BEARING, thrust 1
32 113796 SCREW, flanged, hex 1
39 241920 DEFLECTOR, threaded 1
40 249194 GEAR, reducer 1
41 17M991 PUMP, displacement, PC 1
42 17N294 HOUSING, drive, PC, includes 47 1
43 24W640 ROD, connecting, PC 1
44 24X020 GEAR, crankshaft, includes 25 1
45 15M671 HOSE, cpld 1
46 HSE1450 HOSE, cpld, 1/4 in. x 50 ft 1
47 117493 SCREW, mach, hex washer hd 4
49 115495 SCREW, mach, hex washer hd 2
52 L045-911 Front cover decal 1
53 LABEL, side 1
54 287015 MOTOR, includes 54a, 54b 1
54a 118716 RING, retaining 1
54b 248189 FAN, motor, includes 54a 1
55 244240 HOSE, drain, includes 39 1
57 187651 STRAINER, 3/4”-16 1
59 17M446 FRAME, cart 1
60 17C949 TUBE, suction, intake
61 GUN, spray 1
62 276888 CLIP, drain line 1
65 LABEL, warning 1
67 331048 CAP, leg 2
70 17C484 COVER, pump rod 1
84 15B652 WASHER, suction 1
91 115099 WASHER, hose 1
95 15Y118 LABEL, USA 1
96 15E813 NUT, jam 1
133 106062 WHEEL 2
134 15B999 CLIP, retaining 2
135 104811 CAP, hub 2
136 17C990 HANGER, pail 1
137 111040 NUT, lock, insert, nylon 2
160 17N291 PLUG, hole, 5/8” 2
167 331786 COVER, fan
168 136192 SCREW
169 136217 NUT
Accessories
L034-129 Fluid, packing seal, 8oz.
287735 Motor brush kit
To Next Page
