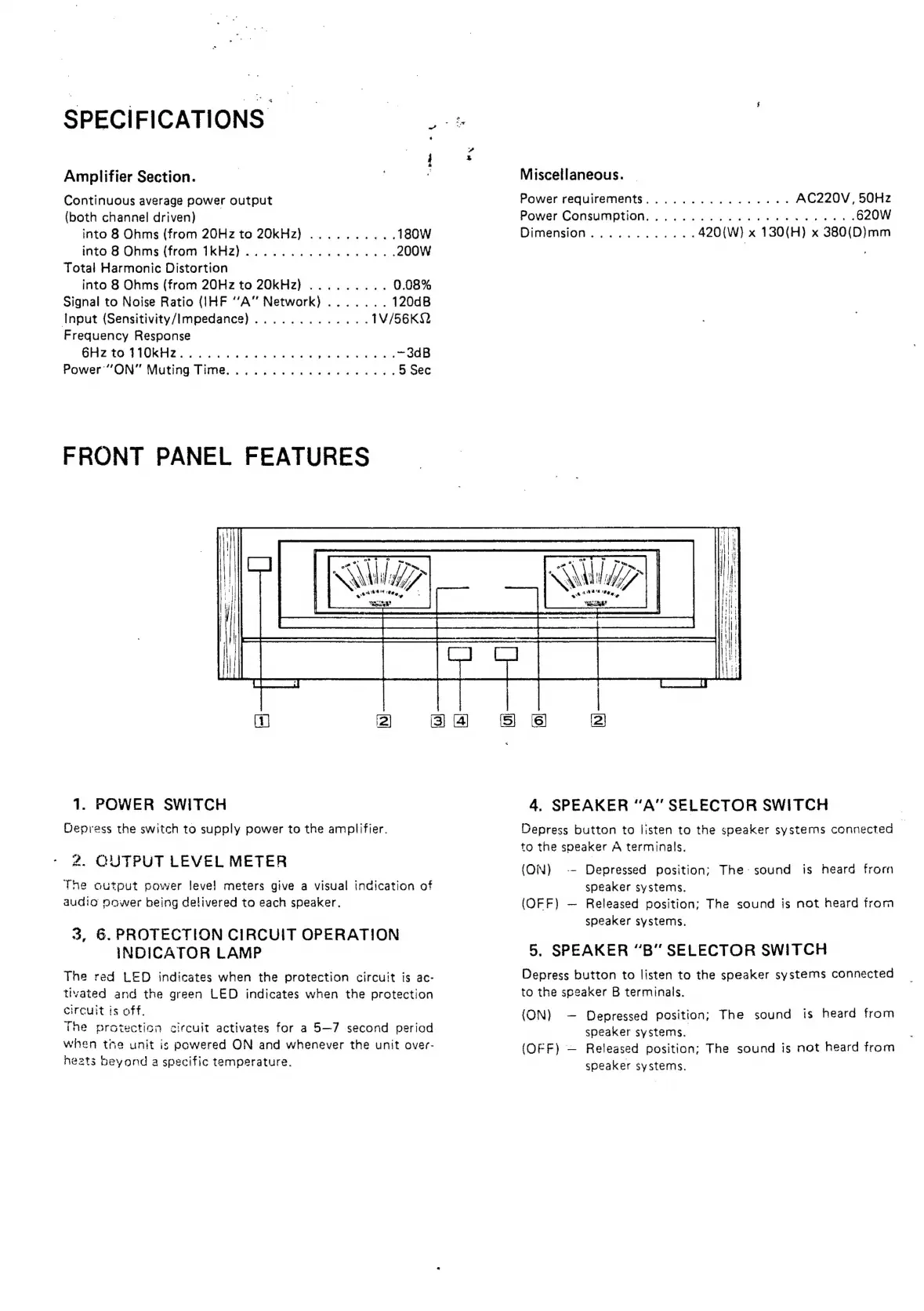

LENCO AF 3310 - Front Panel Features

SPECIFICATIONS
=
_«--
i
Amplifier Section. é
Continuous average power output
(both channel driven)
into 8 Ohms (from 20Hz to 20kHz) .........., 180W
into 8 Ohms (from 1kHz)................. 200W
Total Harmonic Distortion
into 8 Ohms (from 20Hz to 20kHz) ......... 0.08%
Signal to Noise Ratio (IHF ‘‘A’’ Network) ....... 120dB
Input (Sensitivity/Impedance) ............. 1V/56K&2
Frequency Response
GAZ tO: TIOKH Zig os ad wd Sac ss need eek, Sve ~3dB
Power “ON” Muting Time.............0...04. 5 Sec
FRONT PANEL FEATURES
of *\ . |
* a \\
XQ! iM!
Li
| Wf
K yh ot (ey, 4 :
Ps :
Soave
1. POWER SWITCH
Depress the switch to supply power to the amplifier.
4. QUTPUT LEVEL METER
The output power level meters give a visual indication of
audio oawer being delivered to each speaker.
3, 6 PROTECTION CIRCUIT OPERATION
INDICATOR LAMP
Tne rad LED indicates when the protection circuit is ac-
tivated and the green LED indicates when the protection
circuit is off,
The protection circuit activates for a 5—7 second period
when tne unit is powered ON and whenever the unit over-
Neats Heyond a specific temperature.
Miscellaneous.
Power requirements. ........... 000-5 AC220V, 50Hz
Power Consumption. ¢ i442 % sg de hee 6 ew oak e's 620W
DIMENSION 6 44.2 sisa-o-8 os Se 420(W) x 130(H) x 380(D)mm
4. SPEAKER “A” SELECTOR SWITCH
Depress button to listen to the speaker systems connected
to the speaker A terminals.
(ON)
--
Depressed
position;
The:
sound
is
heara
from
speaker
systems.
(OFF)
—
Released
position;
The
sound
is
not
heard
from
speaker
systems.
5. SPEAKER “B” SELECTOR SWITCH
Depress button to listen to the speaker systems connected
to the speaker B terminals.
(ON)
—
Depressed
position;
The
sound
is
heard
from
speaker
systems.
(OFF) — Released position; The sound is not heard from
speaker systems.
