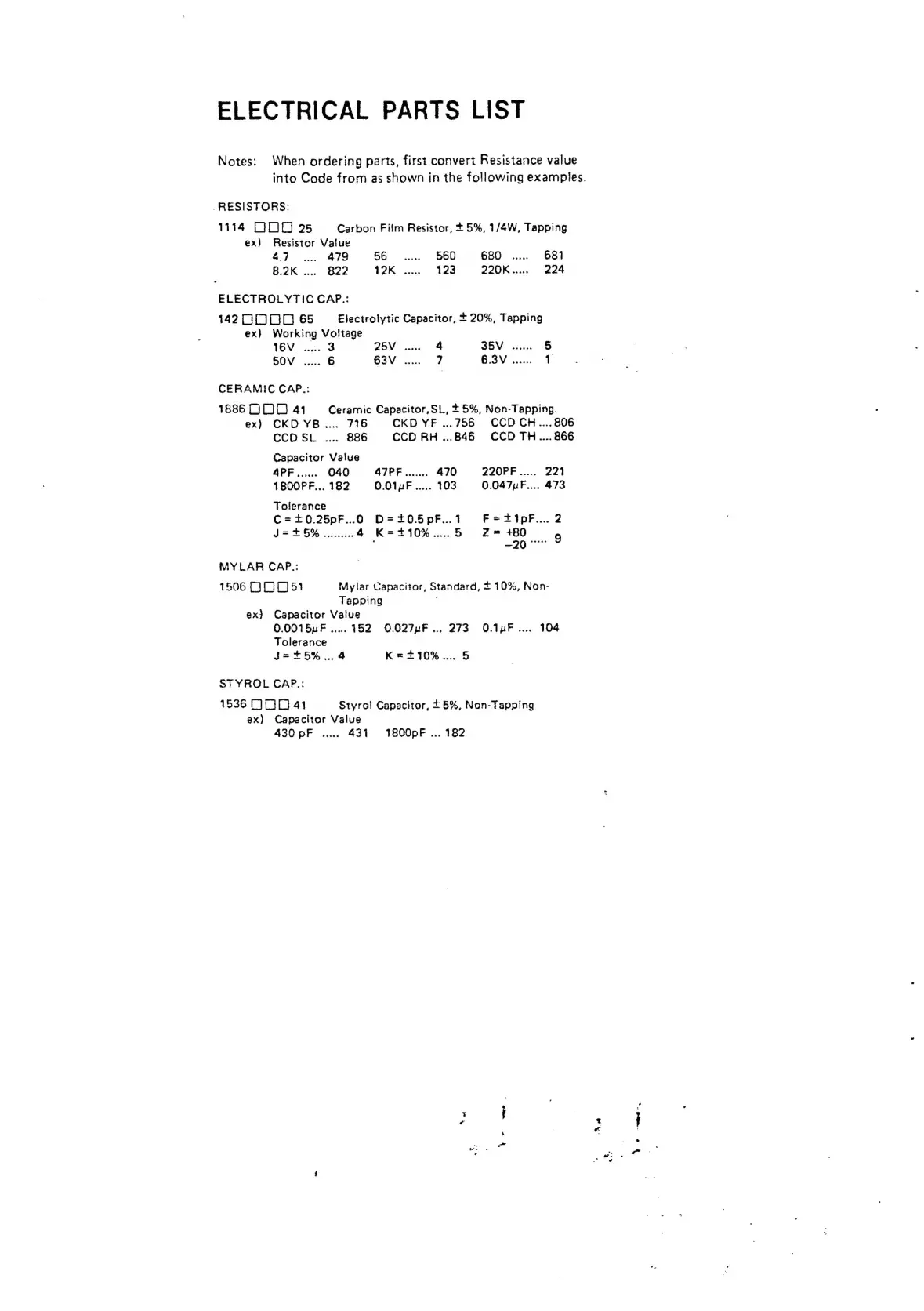

LENCO AF 3310 - Electrical Parts List

ELECTRICAL PARTS LIST
Notes: When ordering parts, first convert Resistance value
into Code from as shown in the following examples.
RESISTORS:
1114 [009 25 Carbon Film Resistor, + 5%, 1/4W, Tapping
ex) Resistor Value
4.7... 479 56 .... 560 680 ..... 681
8.2K .... 822 9 OK acess 123 220K..... 224
ELECTROLYTIC CAP.:
1420000 65 Electrolytic Capacitor, + 20%, Tapping
ex) Working Voltage
16V .... 3 25V .... 4 35V ...... 5
50V ..... 6 63V .... 7 6.3V ...... 1
CERAMIC CAP.:
1886 70D 41 ~~ Ceramic Capacitor,SL, + 5%, Non-Tapping.
ex) CKD YB.... 716 CKD YF...756 CCDCH....806
CCO SL .... 886 CCD RH ...846 CCDTH.... 866
Capacitor Value
4PF...... 040 47PF....... 470 220PF ..... 221
1800PF...182 O.01pF ..... 103 0.047 F.... 473
Tolerance
C=+1t0.25pF...0 D=t0.5pF...1 F=tipF.... 2
he G: vscecaces 4 K=2+10%..... 5 Z= +80 9
. 90 °°"
MYLAR CAP.:
1506 (100051 Mylar Capacitor, Standard, t 10%, Non-
Tapping
ex} Capacitor Value
0.0015uF .... 152 O.027uF .. 273 O.1uF.... 104
Tolerance
J=+5% 4 K=t10%.... 5
STYROL CAP.:
1636 0D 41 Styrol Capacitor, + 5%, Non-Tepping
ex) Capacitor Value
430 pF ..... 431 1800pF ... 182
~
>)
