LENCO L-90 User Manual

10

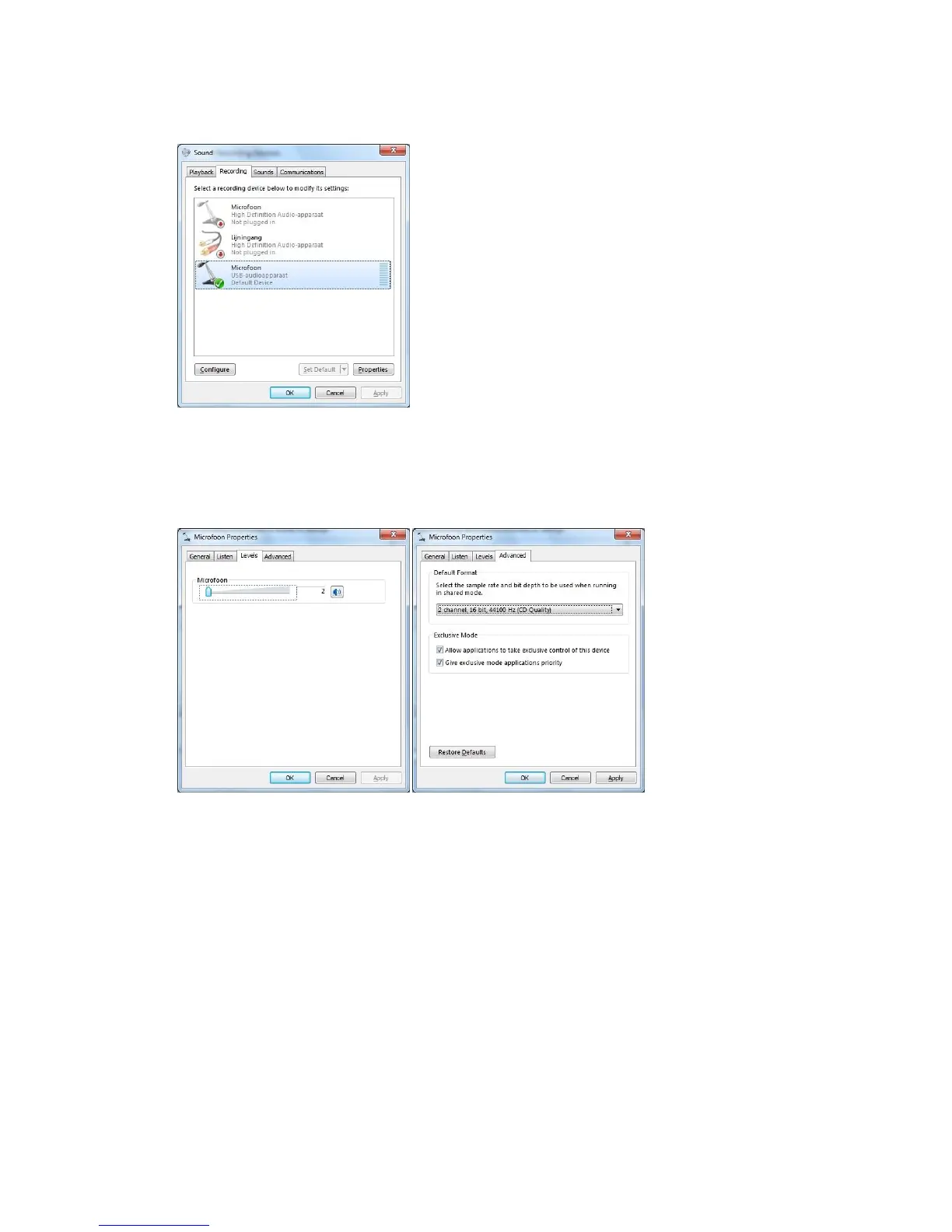

4. Click with the right mouse-button on the speaker icon (taskbar) and select
“recording”. The screen as shown in the example below appears.
5. Click on “microphone USB audio device”.
6. Click on “properties”.
7. Go to the Tab "levels" and move the volume slider down to level 2 as shown in
example below.
8. Go to the tab “advanced” and select in the pull-down menu: “2 channel, 16 bit,
44100 Hz (Cd-Quality)”.
9. Click consecutively on “apply”, “OK” and once again on “OK” (now all programs
are closed).
10. Insert the Audacity software CD into the disk drive, or download new software,
free of charge, via http://audacity.sourceforge.net/.
11. Follow the installation instructions as described in the instruction manual.
12. Run the Audacity software.

LENCO L-90 Specifications

General

Type	Belt-drive audio turntable
Operation	Semi Automatic
Stylus type	mm
Product color	Wood
Nominal speeds	33, 45 RPM
USB version	2.0
USB ports quantity	1
Power supply type	AC
AC adapter input voltage	110 - 230 V
Power consumption (standby)	1 W
Power consumption (typical)	10 W
Compatible operating systems	Windows XP, Windows Vista Home+, Windows 7 Home+, OS X 10.4+
Mac operating systems supported	Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Yes

Weight and Dimensions

Weight	4620 g
Platter diameter	332 mm
Product dimensions (WxHxD)	450 x 130 x 367.5 mm
Product dimensions when open (WxDxH)	450 x 367.5 x 400 mm
