8

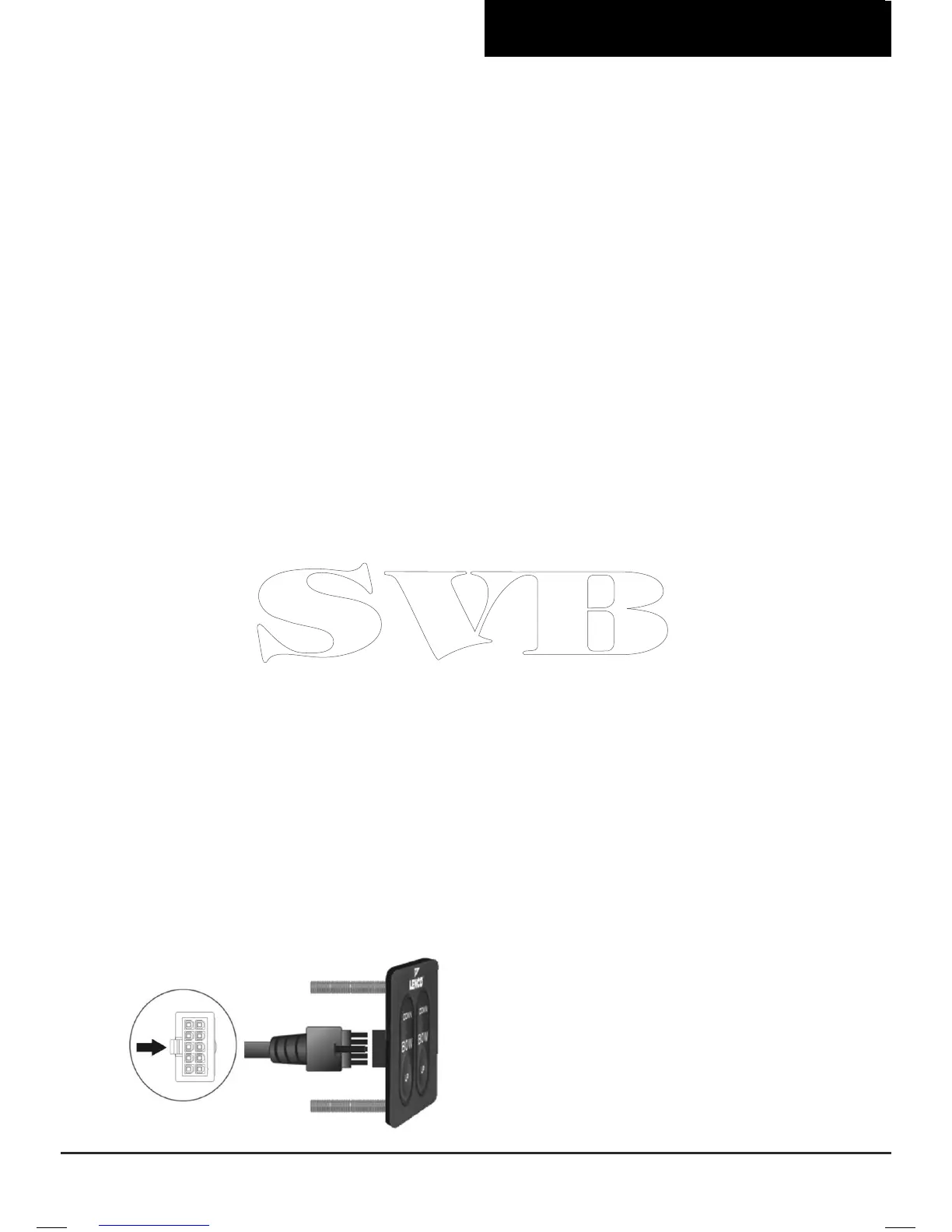

On the cable from the control box to
the key pad plug, there is a release
mechanism that needs to be squeezed
and released prior to pulling the cable
from the key pad plug (see Fig 1).
NOTE: Not releasing the locking
mechanism on the end of the cable
before pulling will cause damage to
the connector on the backside of the
key pad. This will cause failure with the
trim tab system and void the warranty.
Insert the four key pad posts into
the four holes and drop key pad
into place. Make sure that the 2"
hole has been cut to protect the
electronics on the underside of
the key pad. Secure the key pad with
the nylon nuts
(KIT9 - Part# 10008-001)
provided. DO N
O
T OV
E
R
TI
GHTEN
.
3
. Following the trim tab switch wiring
diagram on pages 10-12, connect the
actuator wire leads or the actuator
extension cables to the switch
control box. Be very careful of sharp
edges that may damage the cables.
Remember the left side of the key pad
controls the right (starboard) tab and
the right side of the key pad controls
the left (port) tab.
Each digital tactile switch has a retractor
wire (orange) coming from the control
box. The tabs retract to the up position
when power or analog signal is removed
and then shuts the system down. You
have several switch options from which
to choose depending on your boating /
shing needs:
Orange Wire Connection Options
Standard Tactile Switch (124SSR):
• Connect to Key switch or ON/OFF
power source. Do not install the orange
and red wire on the same mechanical
switch.
•
C
onnect to an engine analog tach signal
(Retractor feature activated when tach
or 12 Volt signal is removed).
•
D
o not install orange wire and retractor
feature will not be operational (it is not
necessary for the orange wire to be
installed for system to operate).
•
1
2 Volt system only.
Indicator Switches (123SC/123DR)
• Connect to Key switch or ON/OFF
power source. Do not install the orange
and red wire on the same mechanical
switch.
•
C
onnect to an engine analog tach signal
(Retractor feature activated when tach
or 12/24 Volt signal is removed).
•
O
range wire must be installed for
system to operate.
•
F
or 12 Volt & 24 Volt systems.
Installation for Dual Rocker Switch (122)
This switch kit does not require a control
box. Please follow the wiring diagram on
page 13 for installation instructions.
Fig. 1
Trim Tab Installation Instructions
Congratulations you have just
successfully installed the #1
T
rim Tab System in the world.
Please follow the instructions
a
nd drawings carefully.
For further assistance please
vi
sit
us at www.lencomarine.com
email us at info@lencomarine.com
o
r call us at 772-288-2662
After mounting the control box, feed
the key pad cable up thru the 2" hole
and connect it to the backside of the
key pad. Leave adequate slack in the
cable connecting to the plug on the
backside of the key pad. No slack or
the tight bundling of the wires can
cause damage to the key pad plug!
