Lennox 2PGE13 series User Manual

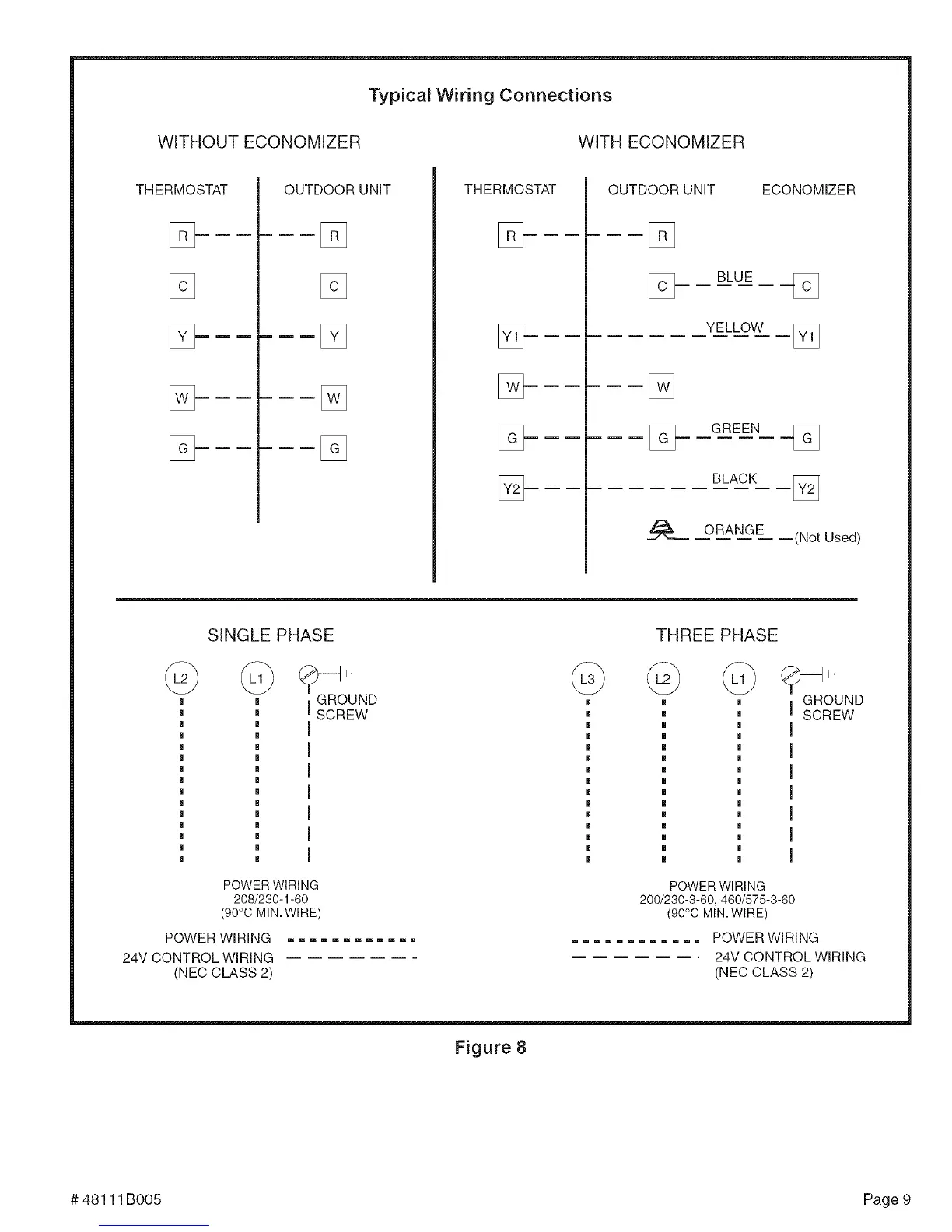

Typical Wiring Connections
WITHOUT ECONOMIZER WITH ECONOMIZER
THERMOSTAT OUTDOOR UNIT THERMOSTAT OUTDOOR UNIT
BLUE
YELLOW
-%
[_ GREEN
BLACK
ORANGE
ECONOMIZER
[]
(Not Used)
SINGLE PHASE
@
GROUND
SCREW
THREE PHASE
@ @
GROUND
SCREW
POWER WIRING
208/230-1-80
(80°C MIN.WIRE)
POWER WIRING ............
24V CONTROL WIRING .......
(NEC CLASS 2)
POWERWIRING
200/230-3-80, 480/575-3-80
(90°C MIN.WIRE)
............ POWER WIRING
....... 24V CONTROL WIRING
(NEC CLASS 2)
Figure 8
# 48111B005 Page 9
