Lennox Allied Air A95UH1D - Unit Start-Up

507270-03 Page 45 of 60Issue 1917

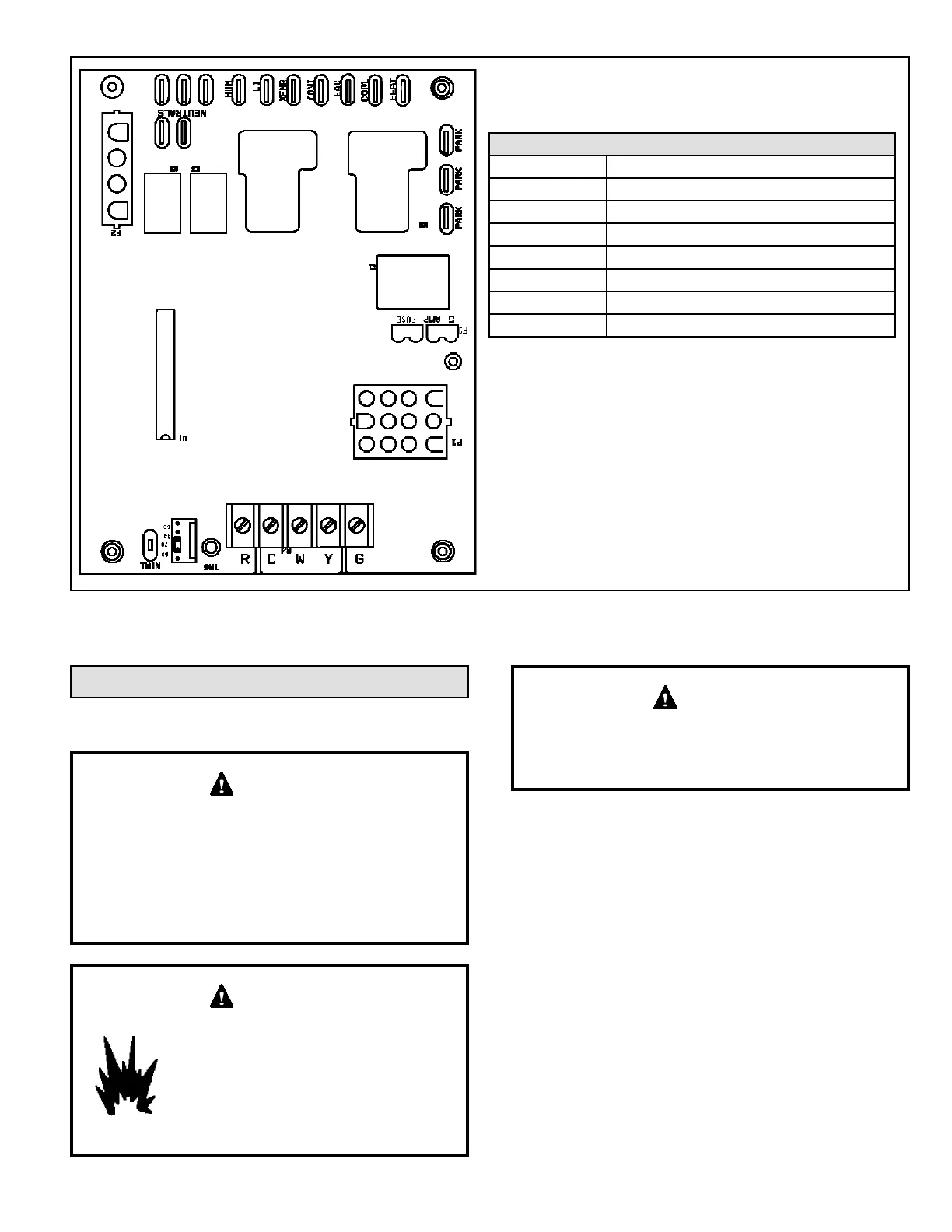

Figure 68. Integrated Control
(Automatic Hot Surface Ignition System)
Terminal Designations
HUM Humidier (120 VAC)
LINE Input (120 VAC)
XFMR Transformer (120 VAC)
EAC Electronic Air Cleaner (120 VAC)
COOL Blower - Cooling Speed (120 VAC)
HEAT Blower - Heating Speed (120 VAC)
PARK Dead terminals to park alternate speed taps
NEUTRALS Neutral terminals (120 VAC)
Unit Start-Up
FOR YOUR SAFETY READ BEFORE OPERATING
Do not use this furnace if any part has been underwater.
A ood-damaged furnace is extremely dangerous.
Attempts to use the furnace can result in re or explosion.
Immediately call a qualied service technician to inspect
the furnace and to replace all gas controls, control
system parts, and electrical parts that have been wet or
to replace the furnace, if deemed necessary.
WARNING
Danger of explosion. Can cause injury or
product or property damage. Should the
gas supply fail to shut off or if overheating
occurs, shut off the gas valve to the
furnace before shutting off the electrical
blower deck, before performing any
service procedure.
WARNING
Before attempting to perform any service or
maintenance, turn the electrical power to unit OFF at
disconnect switch.
CAUTION
BEFORE LIGHTING the unit, smell all around the furnace
area for gas. Be sure to smell next to the oor because
some gas is heavier than air and will settle on the oor.
The gas valve on the unit is equipped with a gas control
switch (lever). Use only your hand to move switch. Never
use tools. If the switch will not move by hand, do not try to
repair it. Force or attempted repair may result in a re or
explosion.
Placing the Furnace into Operation
This furnace is equipped with an automatic hot surface
ignition system. Do not attempt to manually light burners
on this furnace. Each time the thermostat calls for heat, the
burners will automatically light. The ignitor does not get hot
when there is no call for heat on these units.
