Page 6

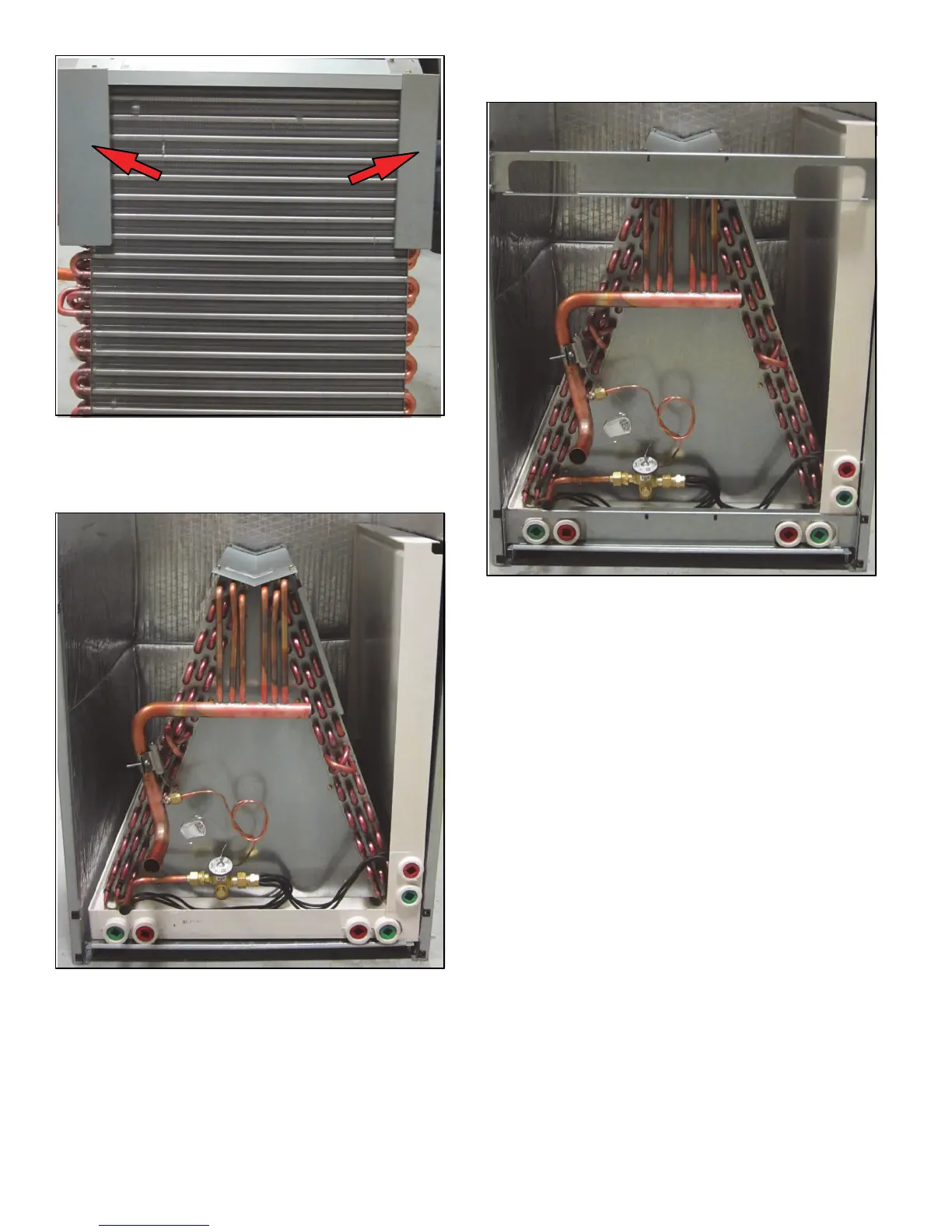

Figure 7. Reinstall the Top Cap. Brackets Must
Cover the Hairpins
6. Slide coil assembly, bottom drain pan and horizontal
drain pan as one unit back into the air handler.
Figure 8. Slide Coil Assembly, Bottom Drain Pan
and Horizontal Drain Pan Back Into the Air Handler
as a Unit
7. Reinstall the brackets that hold the coil and horizontal
drain pan in place. See figure 9.
Figure 9. Reinstall Brackets that Hold the Coil and
Horizontal Drain Pan in Place
8. Reinstall the blower and coil access panels.

Lennox CBX25UH Specifications

General

Type	Air Handler
Brand	Lennox
Model	CBX25UH
Cooling Capacity	Up to 5 tons
Airflow	Up to 2000 CFM
Refrigerant	R-410A
Voltage	208/230V
Dimensions	Varies by model
Weight	Varies by model
Filter Type	Standard 1" Filter
Coil Type	Copper tube with aluminum fins
Motor Type	Variable Speed
