Lennox eCOMFORT R32 GAC 035S

• 36 •
GAH B-BOX 035S-040S-045S
GAH B+-BOX 050S-055S-060S
Installation manual / eCOMFORT R32-MIL166E-0222 - 09/2022

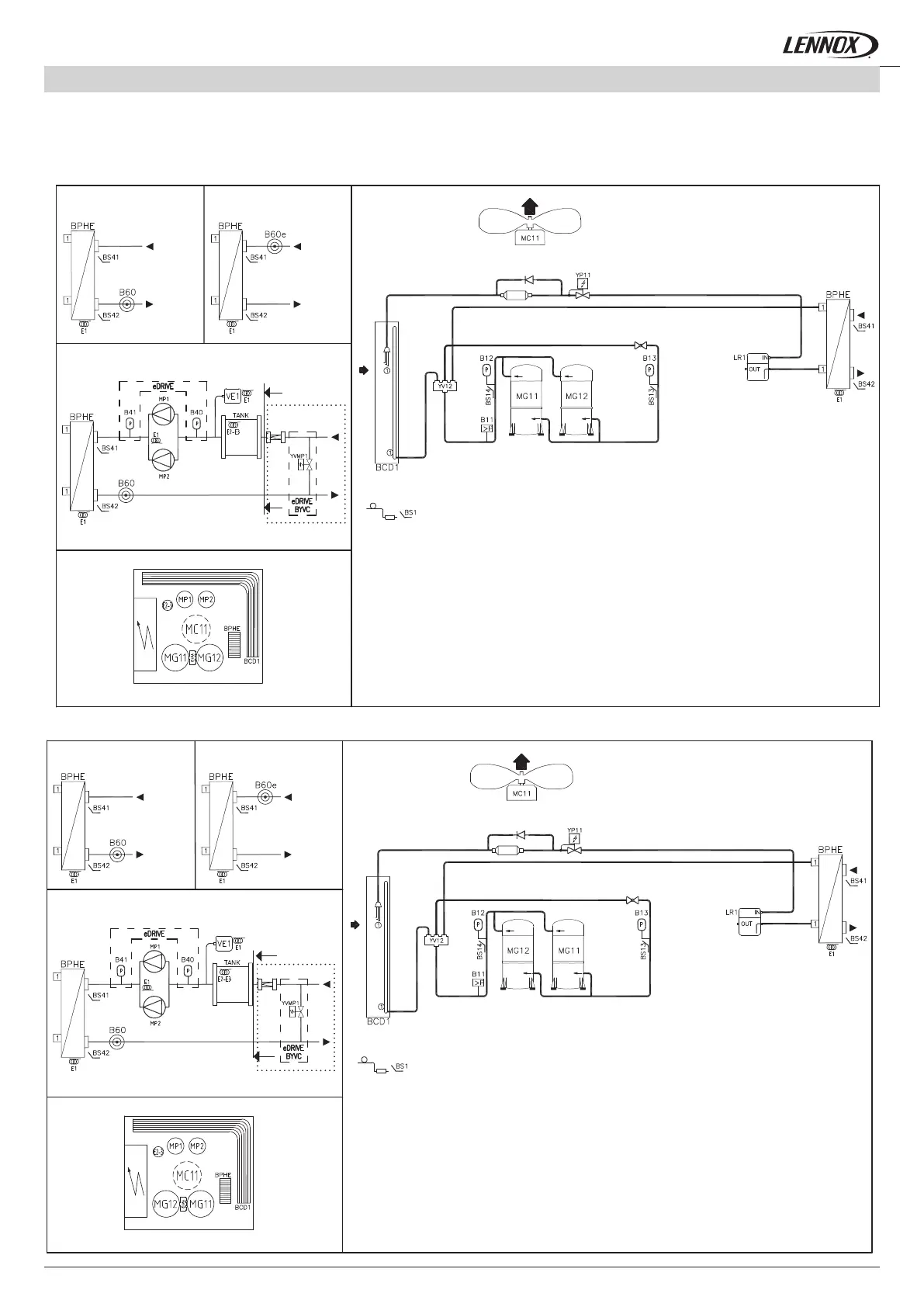

1.8.- PIPING DRAWINGS
HEAT PUMP UNITS
Electronic
ow switch
Electronic
ow switch
Flow switch
Flow switch
CUSTOMER
CONNECTIONS
FILTER
FILTER
eDRIVE pump + water pump (options)
eDRIVE pump + water pump (options)
CUSTOMER
CONNECTIONS
1.- GENERAL CHARACTERISTICS
