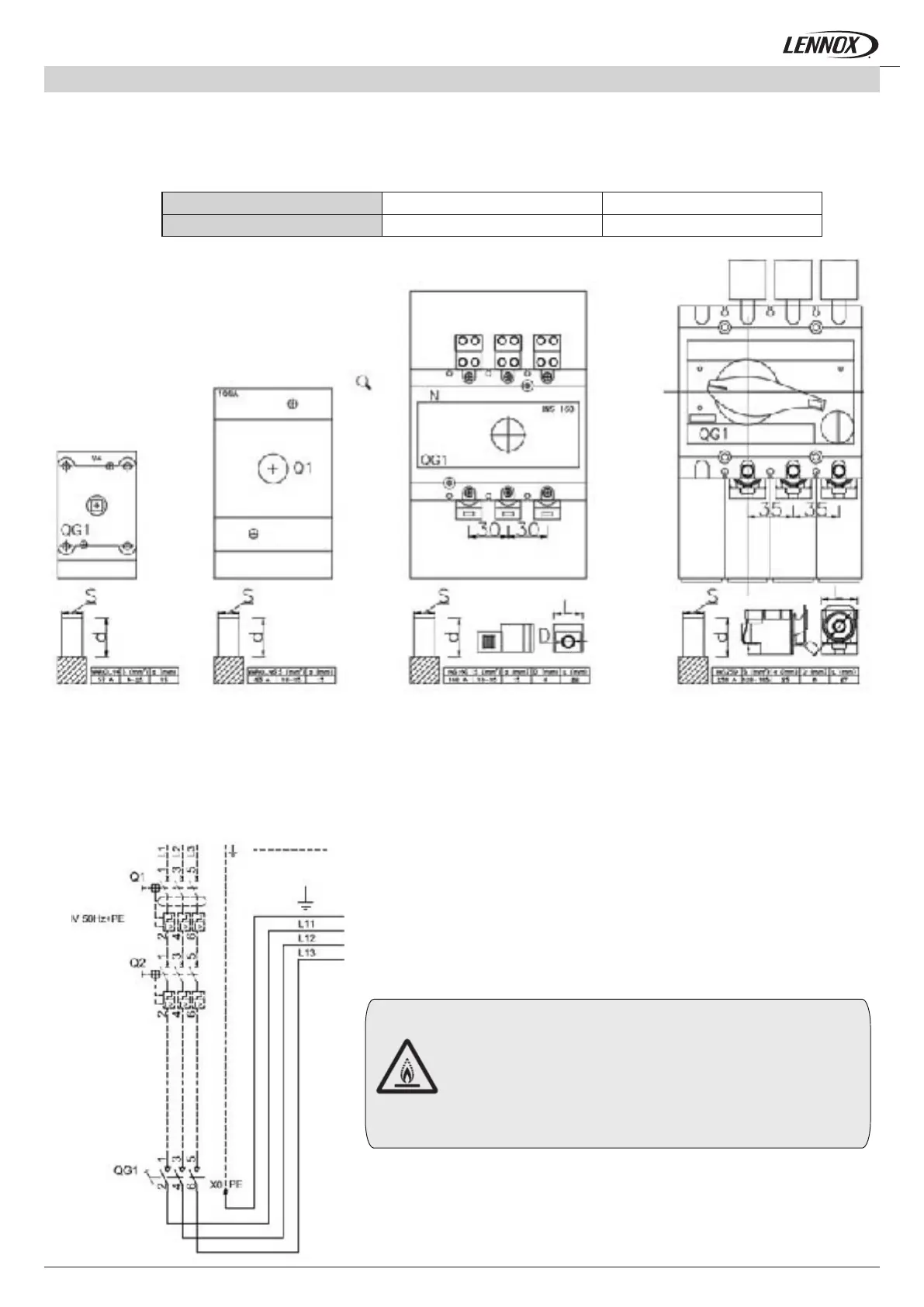

Main switch pad dimension
Customer protection information
In order to protect our unit, LENNOX recommends the implementation of this type of protection upstream. There are two options
available, either circuit breaker protection or fuse protection.
The customer must provide the necessary equipment in his installation to protect the power line that feeds our unit.
A differential of 300mA is recommended.
If the unit is equipped with variable condenser fans or variable speed pumps or compressor, a type B differential is recommended.
CUSTOMER CONNECTIONS
VOLTAGE OPERATION LIMITS
MODELS VOLTAGE LIMITS
2.8.- ELECTRICAL CONNECTIONS
WARNING:
Ignition source in a potentially ammable atmosphere: Fire hazard. Any
work on the energized terminals in the unit terminal box could create an
igntion. Do not touch the energized terminals wit a tool or cable when
the unit is energized. Circuits operating with ammable refrigerants shall
use only the qualied terminal box supplied by the Lennox.
