Page 23

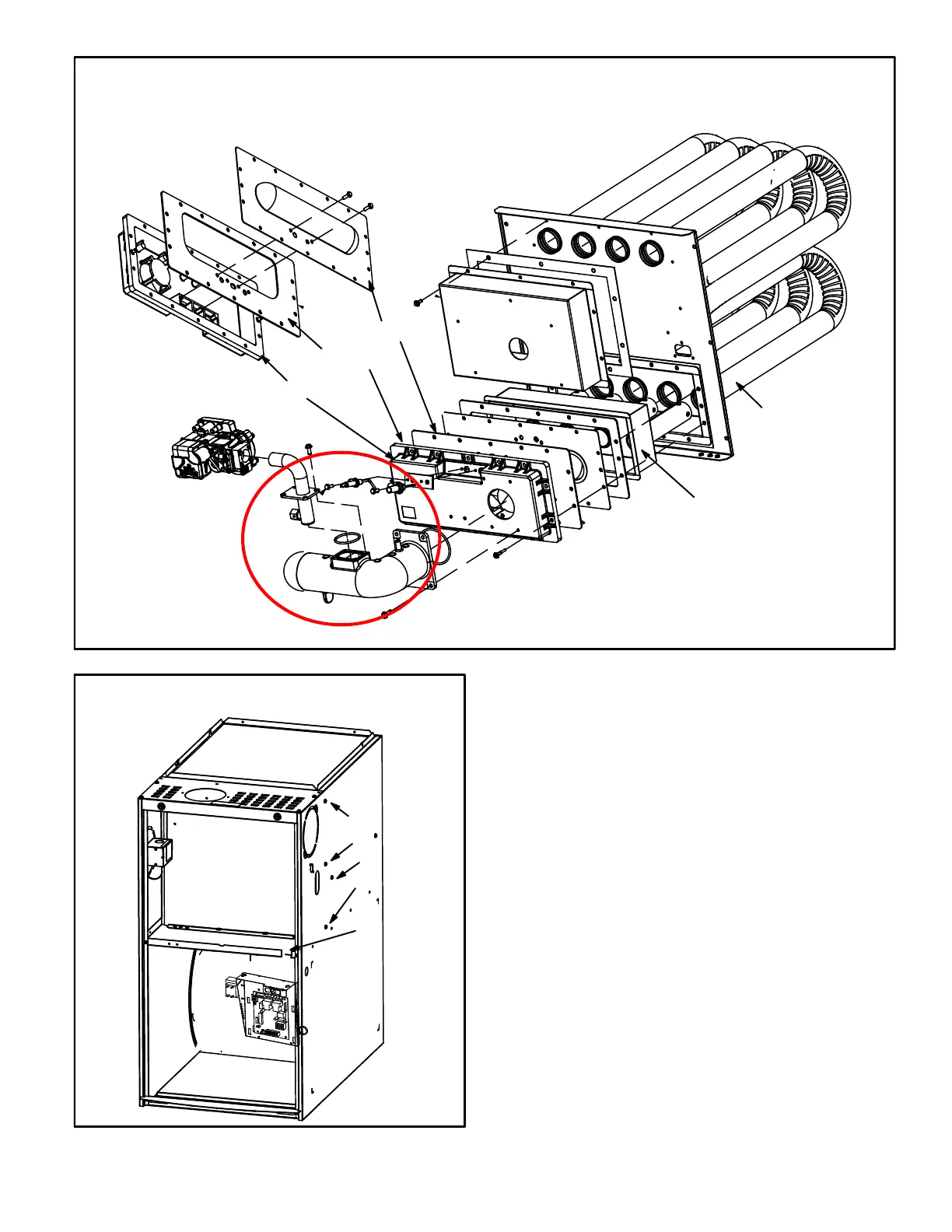

BURNER, C.A.I ASSEMBLY &
HEAT EXCHANGER REMOVAL
FIGURE 23
Gas Valve
Air Intake Assembly
(leave intact)
Heat Exchanger
Air Gas Plenum
Gasket
Burner
Burner Box Liner
(leave intact)
FIGURE 24
Remove 5 screws if necessary
(either side of cabinet)
1
2
3
4
5
