Page 41
on the condensate trap and line. Heating cable kit is
available from Lennox in various lengths; 6 ft. (1.8m) -
kit no. 26K68; 24 ft. (7.3m) - kit no. 26K69; and 50 ft.
(15.2m) - kit no. 26K70.

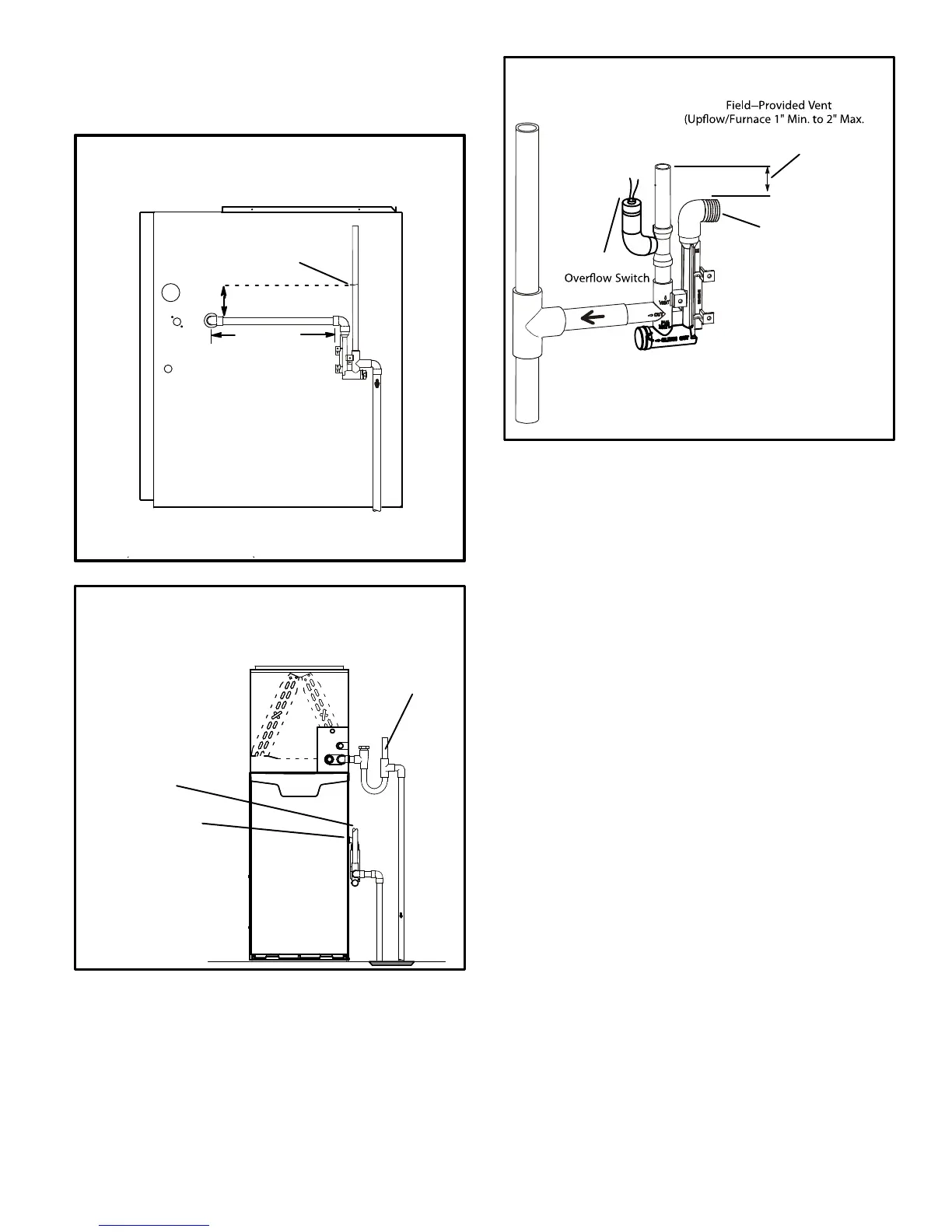

FIGURE 43
(Unit shown in upflow position with remote trap)
*5’ max.
To Drain
PVCPipeOnly
FieldProvidedVent
Min.1” AboveCondensate
Drain
Connection
1”
Min.
2” Max.
CONDENSATE TRAP LOCATIONS
*Piping from furnace must slope down a minimum of
1/4” per ft. toward trap.
FIGURE 44
EL29UHE With Evaporator
Coil Using A Separate Drain
Condensate
Drain
Connection
Field Provided Vent
(1” min. 2” max. above
condensate connec
tion)
Evaporator drain
line required
FIGURE 45
HorizontalFurnace4”Min.to 5” Max.above
condensatedrainconnection)
FurnaceCondensate
DrainConnection
From Evaporator Coil
Optional
Condensate Trap With Optional Overflow Switch
