Lennox Elite CBA27UHE Series User Manual

Page 34

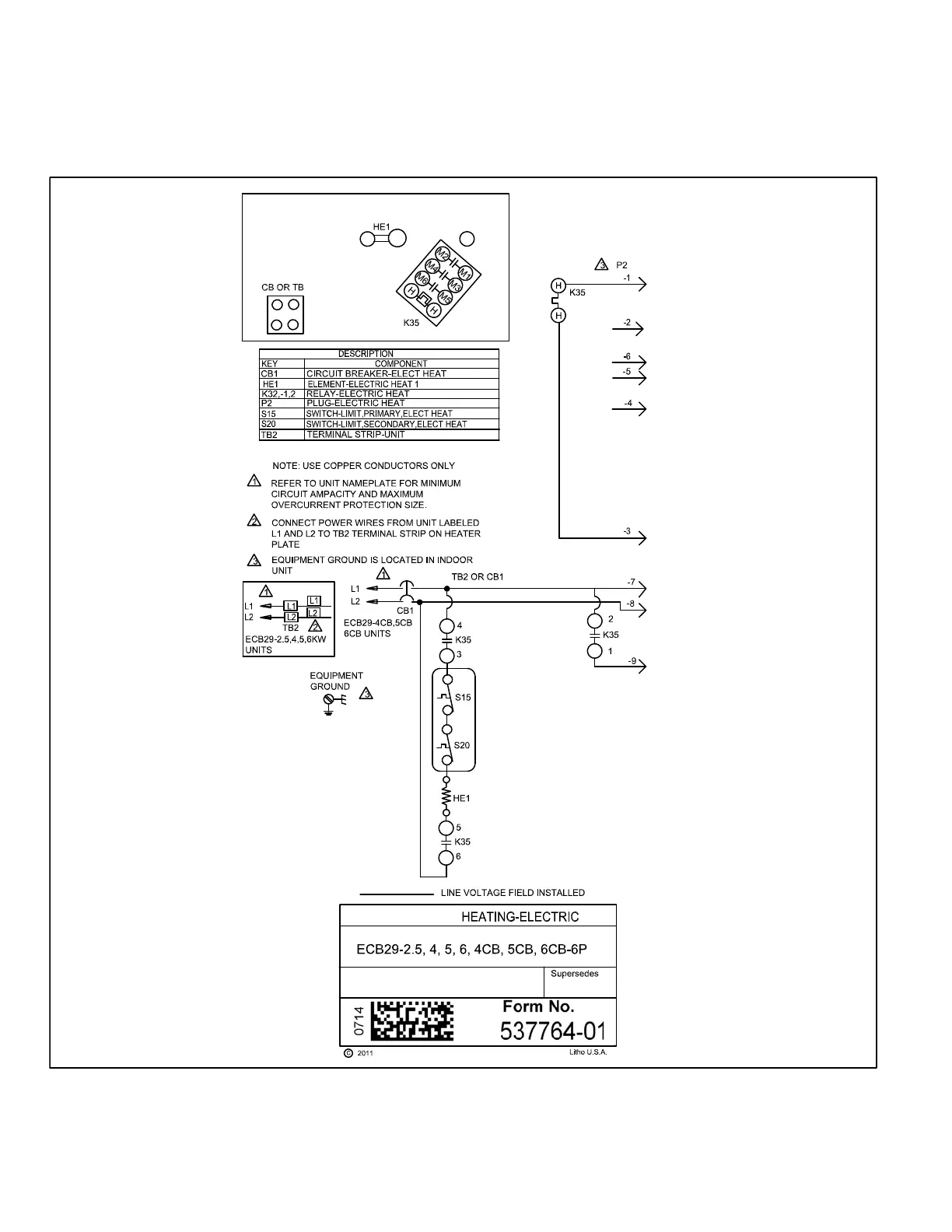

B-ECB29‐2.5, -4, ‐5, -6, 4CB, 5CB, 6CB - 208/230V SINGLE PHASE -
SEQUENCE OF OPERATION
1- When there is a call for heat, W1 of the thermostat ener
gizes the electric heat relay K35 with 24VAC.
2- When K35‐1 closes, the blower is energized on heat
ing speed.
3- Assuming the N.C. primary (S15) and secondary (S20)
limit switches are closed, electric heat element HE1 is en
ergized.

Lennox Elite CBA27UHE Series Specifications

General

Type	Blower
Refrigerant	R-410A
Configuration	Upflow/Horizontal
Cabinet Material	Galvanized steel
Voltage	208/230V
Motor Type	ECM
Cabinet	Insulated
Warranty	5-Year Limited Warranty on covered components
Airflow Capacity	Up to 2000 CFM
Static Pressure	Up to 1.0 in. wc
Speed Settings	Variable Speed
