Lennox Elite CBA27UHE Series User Manual

Page 45

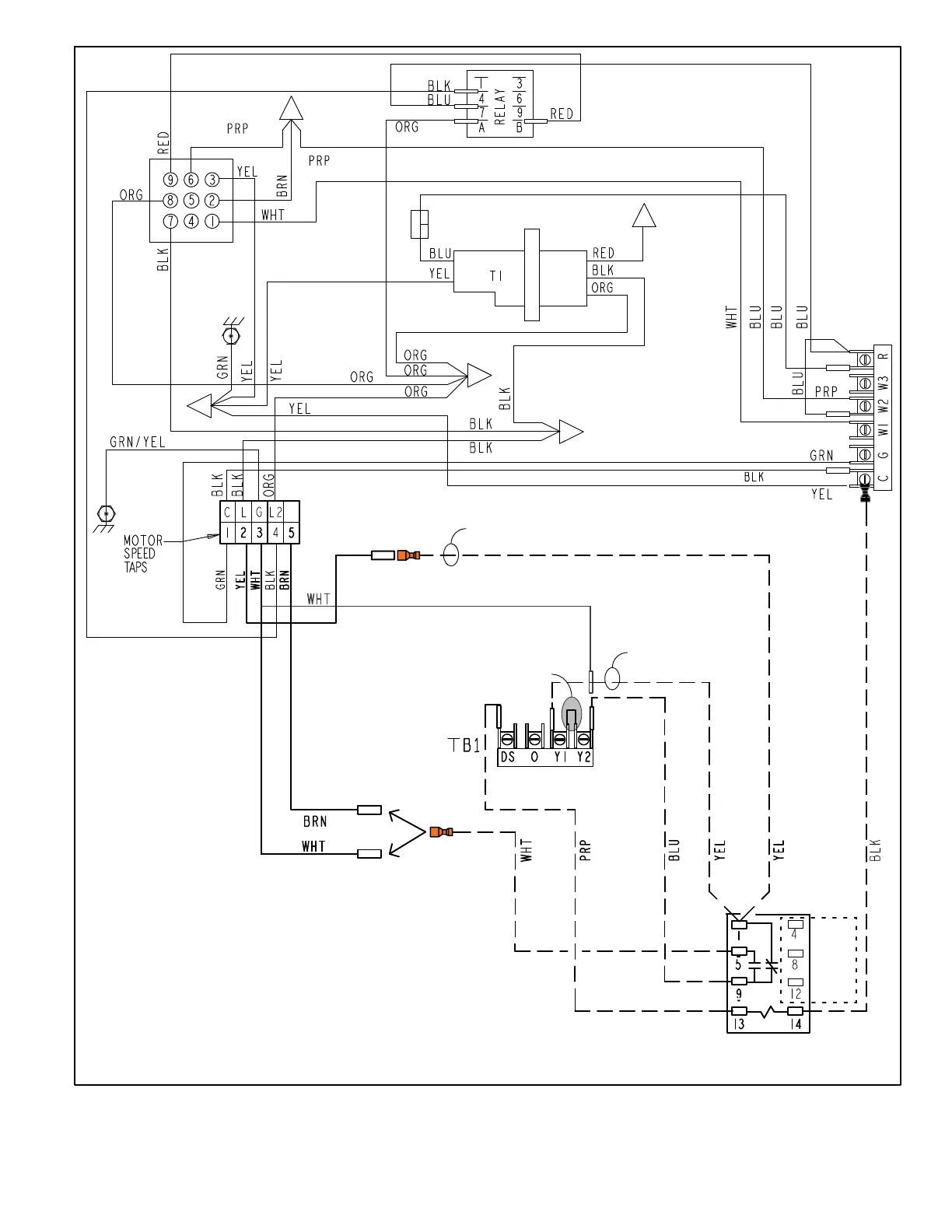

CONNECT FOR 0.50 - 0.80
IN.W.G., TWO-STAGE ONLY;
OTHERWISE, NOT USED
(PINS
4,8,12
NOT
USED)
CONNECT FOR 0.50 - 0.80 IN.W.G.
ONLY; OTHERWISE, NOT USED
Y1-Y2 JUMPER IN FOR
SINGLE-STAGE;
REMOVED FOR
TWO-STAGE
K183 DEHUMIDIFICATION RELAY
AND WIRING HARNESS
0.10 - 0.49 IN.W.G.
WHT - WHT
0.50 - 0.80 IN.W.G.
WHT - BRN
DISCONNECT FROM Y2

Lennox Elite CBA27UHE Series Specifications

General

Type	Blower
Refrigerant	R-410A
Configuration	Upflow/Horizontal
Cabinet Material	Galvanized steel
Voltage	208/230V
Motor Type	ECM
Cabinet	Insulated
Warranty	5-Year Limited Warranty on covered components
Airflow Capacity	Up to 2000 CFM
Static Pressure	Up to 1.0 in. wc
Speed Settings	Variable Speed
