ON - OFF
The unit is declared On if set point 6 (C06) is ON.
The unit can be stopped by a remote control command
by hard contact.
On KP12 extension card - see chapter on BMS contact
kit.
For certain configurations a CLIMATIC™ system
actuator can be used to control an external function
(option: Client).
The Client option is declared On if set point 7 (C07) is
ON.
DEFINITION OF TIME SLOT PARAMETERS
The CLIMATIC™ allows you to programme 5 operating
zones per day, in addition to an idle zone for the
weekend.
Slot activation is :
- automatically controlled by the CLIMATIC™, if
you have defined these time parameters for each
slot
- forced manually by action on the controller
(instructions 02/03 and 04 for KP02).
- forced by the BMS contacts kit ( see this chapter).
- forced by the computer connection.
The five available time slots are :
WEEK-END
NIGHT
MORNING
NOON
EVENING
If none of the time slots listed above is active, the
active slot is :
DAY
A particular time slot :
BMS is activated if the unit is connected
to a computer network.

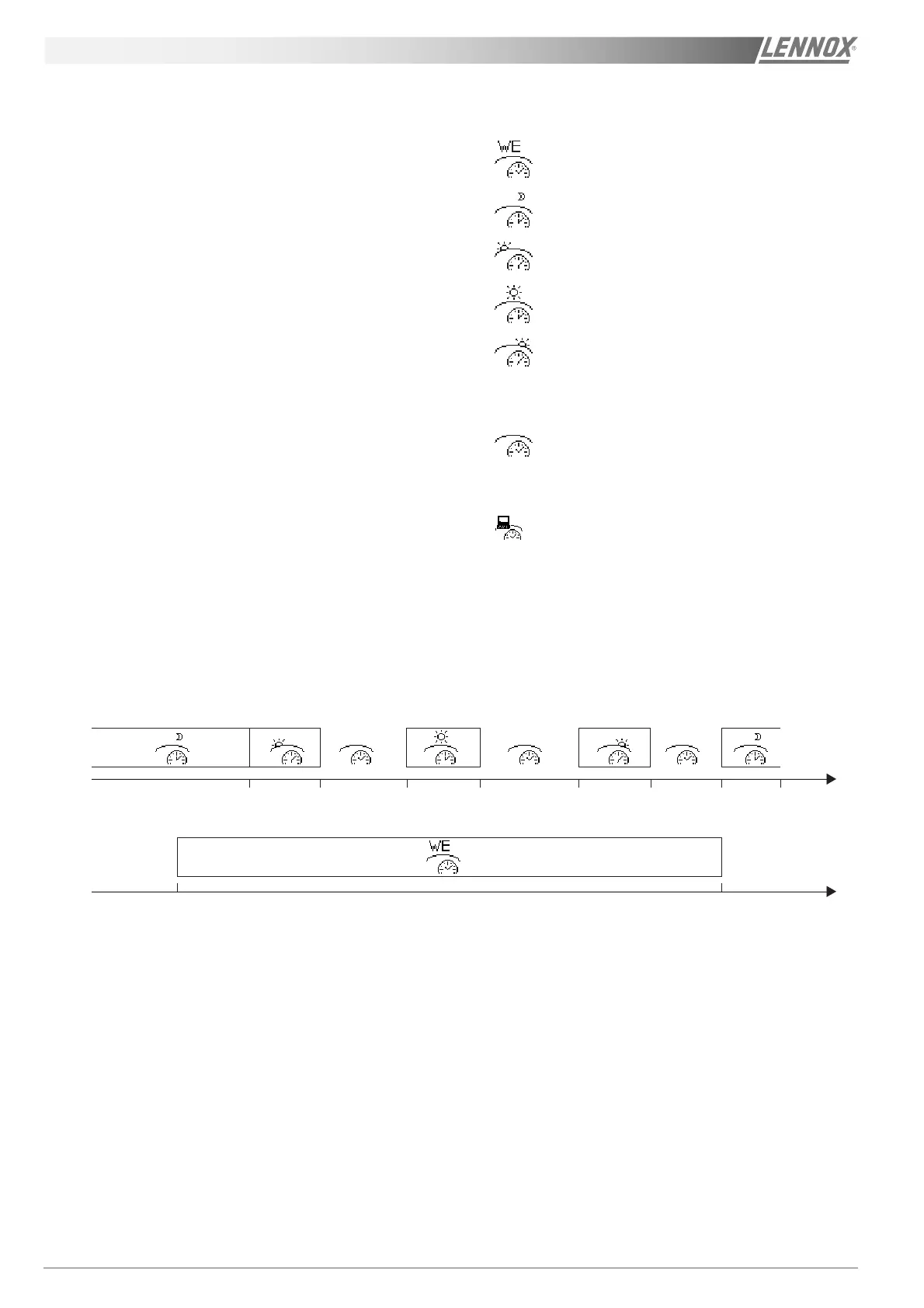

0123
Vendredi 22h. Lundi 8h.
456789101112131415161718192021222324
With the KP07 :
- Go directly to the screen concerning the time slot
to be modified, enter the parameters described
below on the screen (see organisation of screens
in KP07chapter).
With the KP02 :
- The slot to be set up must first be defined by the
08 instruction. Enter the information below then
return to the 08 instruction to go to the next slot.
