As levels are adjustable, observe the following
recommendations for correct installation of the
equipment.
Above all, ensure that all the flaps are facing
outward (1 - Figure 5).
They are sometimes stored inside for transport.
Place the roof mounting frame on the trimmer
beam by first lining up the inlet and then the outlet.
(2 - Figure 6).
After levelling the frame, fix the surface flaps onto
the trimmer.

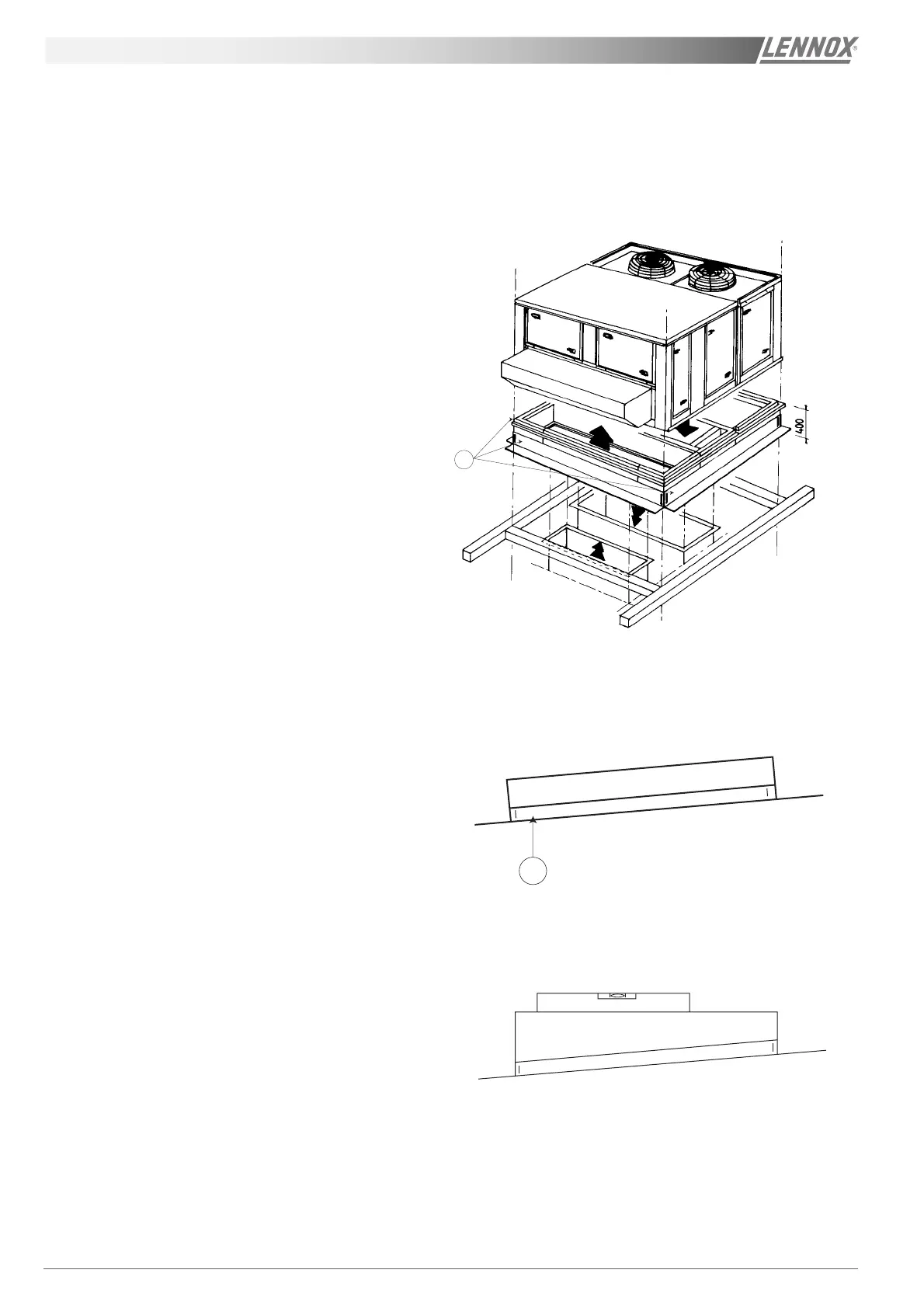

1
Figure 5
Figure 6
Figure 7
