Page 8 - IOM / ROOF-TOP FLEXY™ Series
INSINS
INSINS
INS
TT
TT
T
ALLAALLA
ALLAALLA
ALLA
TION ON A ROOFMOUNTING FRTION ON A ROOFMOUNTING FR
TION ON A ROOFMOUNTING FRTION ON A ROOFMOUNTING FR
TION ON A ROOFMOUNTING FR
AMEAME
AMEAME
AME

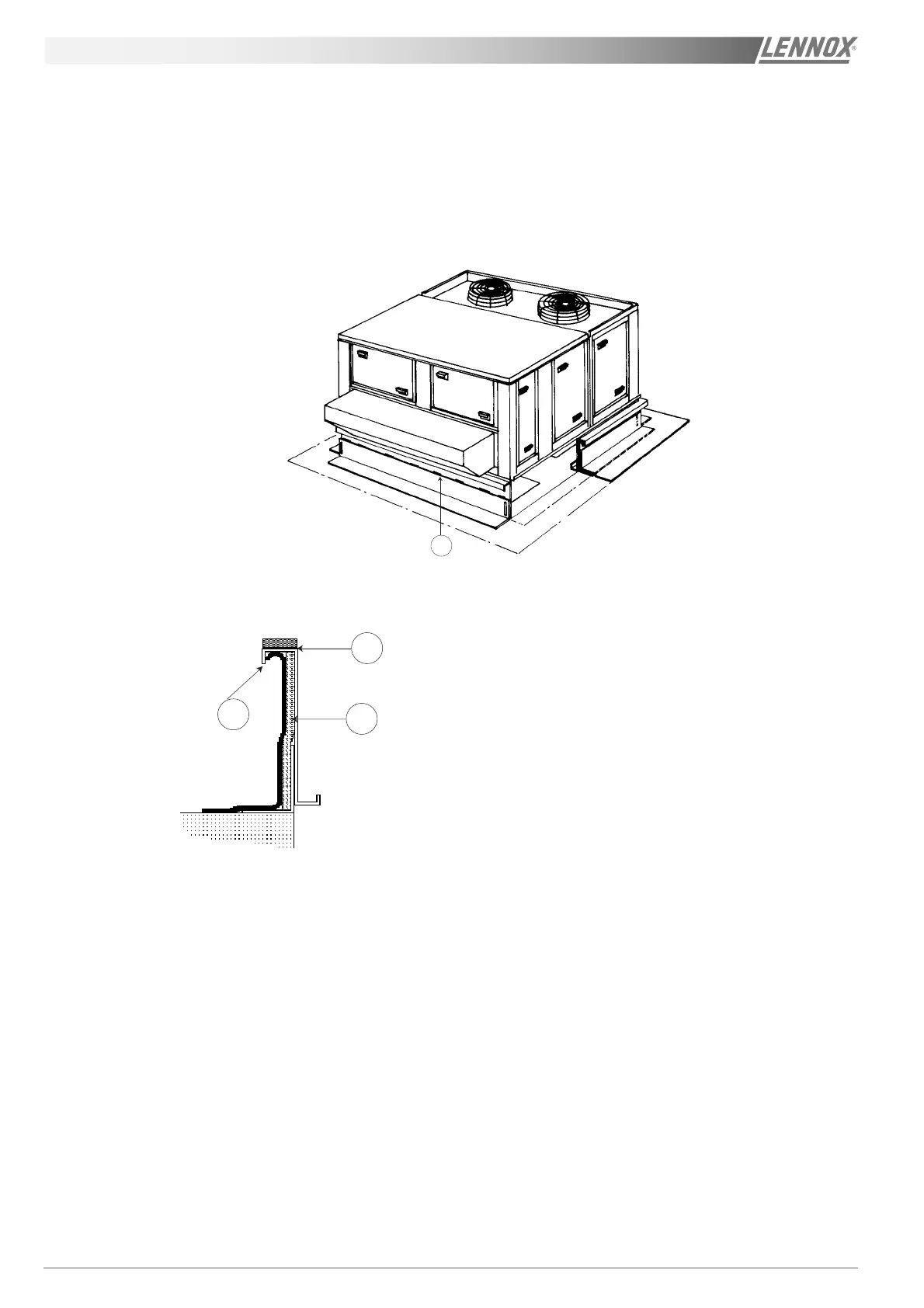

When the frame is correctly positioned, it is essential to secure the assembly with a disconnected welding seam
(20 to 30 mm for every 200 mm) along the outside, or by using an alternative method (1 - Figure 8).
Assembly joint (1 - Figure 9)
Insulate the frame before installation. We recommend
the minimum application of 20 mm thick insulation.
Check that the covering is continuous and apply a
seal (2 - Figure 9).
CAUTION : To be effective, the upstream must end
below the drop edge (3 - Figure 9)
Before installing the equipment, make sure that the assembly seal or the puttying is not damaged and check that
the unit is fixed to the mounting frame so that it is resting flat on the frame. Once in position, the bottom of the
equipment must be horizontal.
The installer must comply to local authority standards and specifications.
1
2
3
Figure 4
1
Figure 8
