IOM / ROOF-TOP FLEXY™ Series - Page 5
TRTR
TRTR
TR
ANSPORT - HANDLINGANSPORT - HANDLING
ANSPORT - HANDLINGANSPORT - HANDLING
ANSPORT - HANDLING
Model
Length Side Ventil. Width Height Weight Sling
louver louver
Length
FX* 25 4070 490 600 1633 1055 950 3000
FX* 30 4070 490 600 1633 1055 980 3000
FX* 35 4750 490 600 2254 1290 1400 3700
FX* 40 4750 490 600 2254 1290 1450 3700
FX* 55 4750 490 600 2254 1290 1600 3700
FX* 70 5050 890 600 2254 1725 1800 3900
FX* 85 5050 890 600 2254 1725 1900 3900
FX* 100 5050 890 600 2254 1725 2000 3900
FX* 110 5650 860 2254 2000 2300 4300
FX* 140 5650 860 2254 2000 2400 4300
FX* 170 5650 860 2254 2000 2600 4300

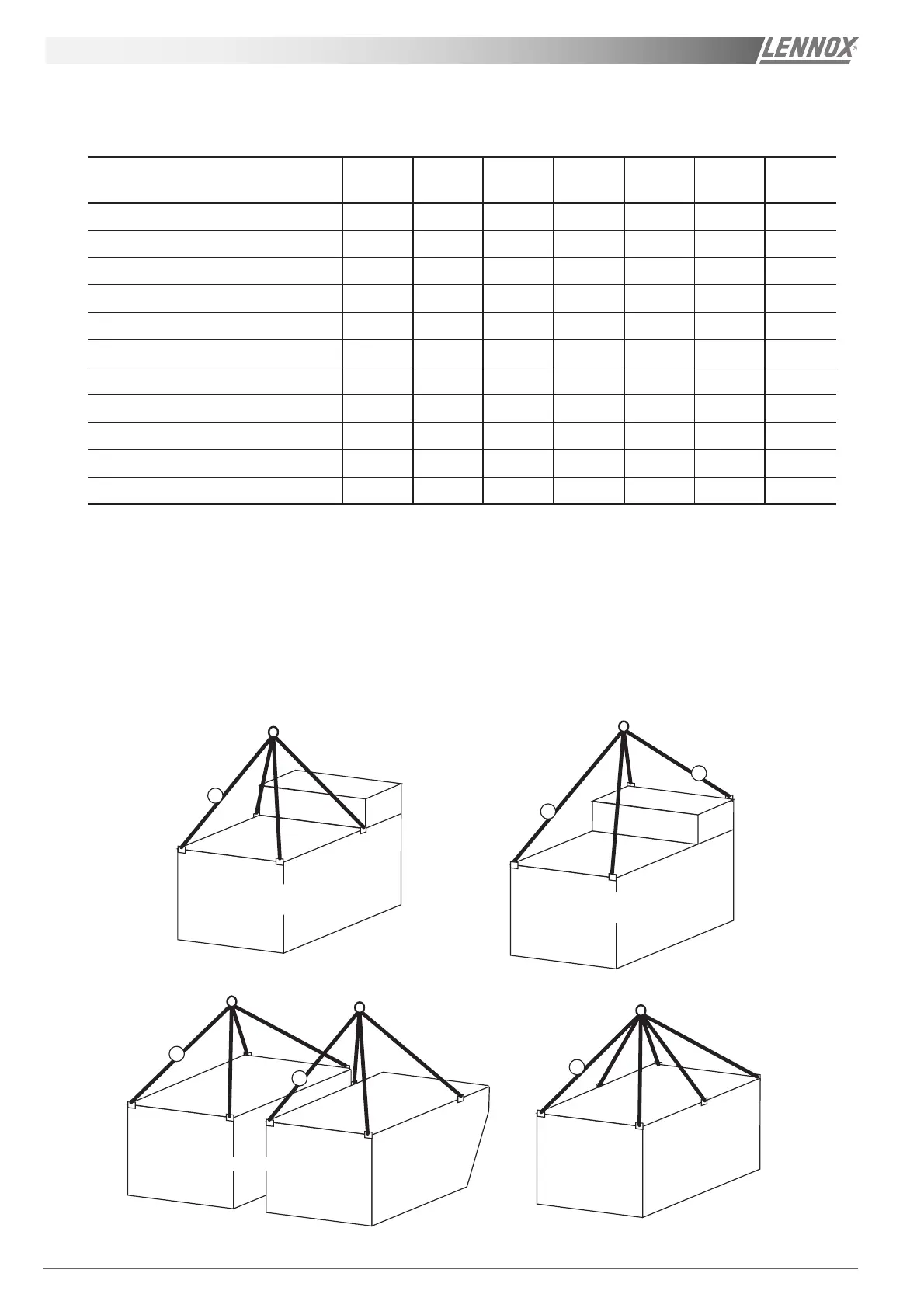

Figure 3
1
FC*/FH*/FG*/FD* 60-70
with centrifugal condenser fan
1
2
FC*/FH*/FG*/FD* 85 / 160
with centrifugal condenser fan
1
1
FC*/FH*/FG*/FD*
1
FX*
HANDLING
The equipment can be moved using the lifting hooks
on the top of the unit.
The dimension specified in the "sling" column is the
sling length that we recommend for safe handling of
the equipment.
Some units can only be supported by four slings at
right-angles. Others require different lengths (see
Figure 3).
It is essential that all lifting hooks are used and that the
slings are all of the same size to avoid damaging the
equipment.
