Lennox G61MPV Engineering Data

40
(1016)
A
UP−FLOW POSITION
B
40
(1016)
A
HORIZONTAL
B
Coil
Height
Overall
Height
40
(1016)
Furnace
Width
Coil
Width
DOWN−FLOW POSITION

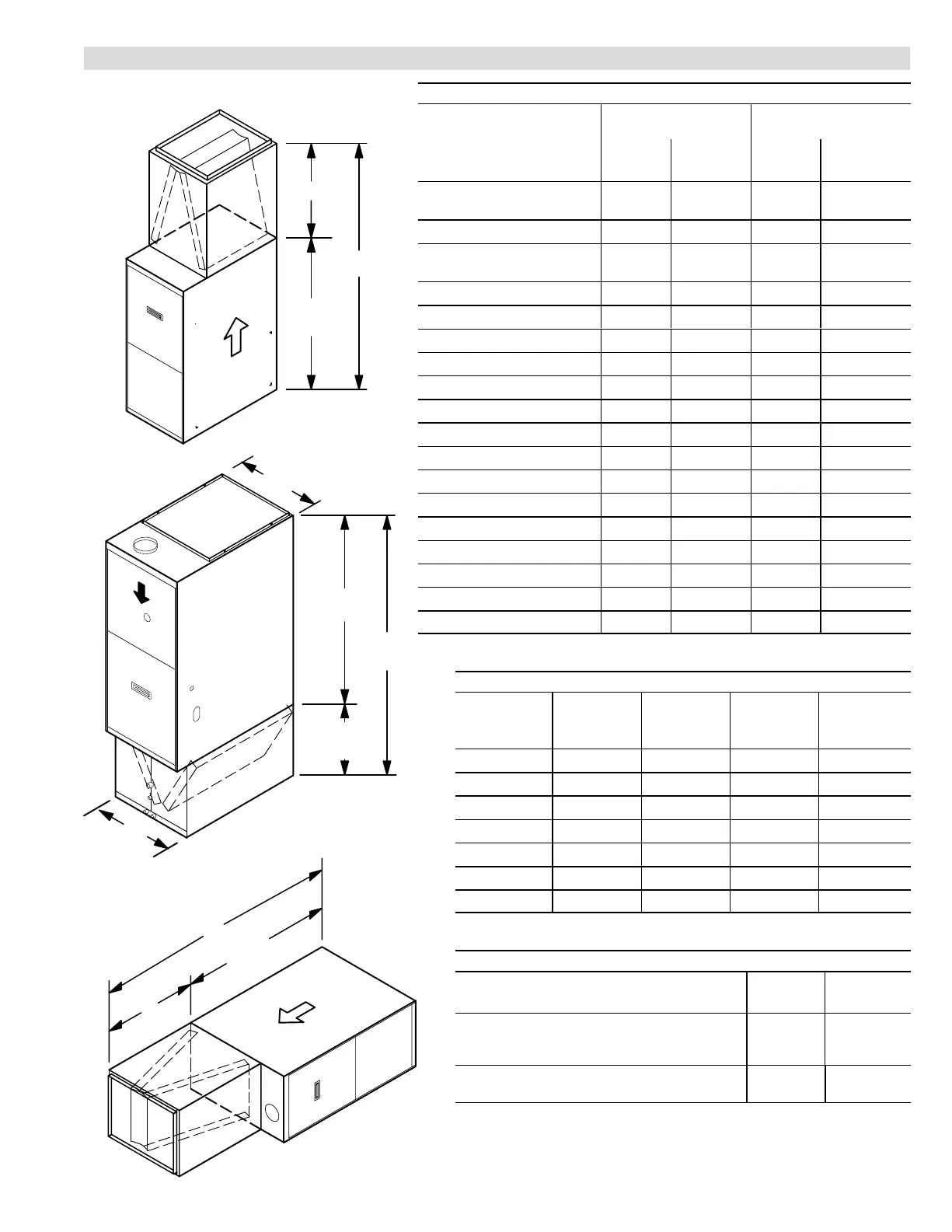

G61MPV / Page 11
DIMENSIONS − INCHES (MM) − FURNACE/COIL COMBINED DIMENSIONS
UP−FLOW POSITION
MdlN
Cased
Uncased
(CX34 − cased only)
Model No
A
B A B
in. mm in. mm in. mm in. mm
CX34−18/24B−6F
CX34−18/24C−6F
C33−24B
C33−24C
16−1/2 419 56−1/2 1435 13−7/8 352 53−7/8 1368
CX34−25B−6F C33−25B 19−1/2 495 59−1/2 1511 15−7/8 403 55−7/8 1419
CX34−30B−6F
CX34−30C−6F
C33−30B
C33−30C
20−1/2 521 60−1/2 1537 17−3/4 451 59−3/4 1467
CX34−31B−6F C33−31B 23−1/2 597 63−1/2 1613 20−1/4 514 60−1/4 1530
CX34−36B−6F C33−36B 24−1/2 622 64−1/2 1638 21−7/8 556 61−7/8 1572
CX34−36C−6F C33−36C 24−1/2 622 64−1/2 1638 21−1/4 540 61−1/4 1556
CX34−38B−6F C33−38B 24−1/2 622 64−1/2 1638 22 559 62 1575
CX34−42B−6F C33−42B 24−1/2 622 64−1/2 1638 21−7/8 556 61−7/8 1572
CX34−43B−6F C33−43B 28−1/2 724 68−1/2 1740 26−1/4 667 66−1/4 1683
CX34−43C−6F C33−43C 28−1/2 724 68−1/2 1740 25−3/4 654 65−3/4 1670
C33−44C 24−1/2 622 64−1/2 1638 21−1/2 546 61−1/2 1562
CX34−44/48B−6F C33−48B 24−1/2 622 64−1/2 1638 22−1/8 562 62−1/8 1578
CX34−44/48C−6F C33−48C 24−1/2 622 64−1/2 1638 21−1/2 546 61−1/2 1562
CX34−49C−6F C33−49C 29−1/2 749 70−1/2 1791 28−1/2 724 68−1/2 1740
CX34−50/60C−6F C33−50/60C 27−1/2 699 67−1/2 1715 24−3/4 629 64−3/4 1645
CX34−60D−6F C33−60D 25−1/2 648 65−1/2 1664 24−3/4 629 64−3/4 1645
CX34−62C−6F C33−62C 32−1/2 826 72−1/2 1842 30−5/8 778 70−5/8 1793
CX34−62D−6F C33−62D 29−1/2 749 69−1/2 1765 28−3/4 730 68−3/4 1746
DOWN−FLOW POSITION
Model
Number
Coil Width
Furnace
Width
Coil Height
Overall
Height
N
um
b
er
in.
mm in. mm in. mm in. mm
CR33-24B−F
17−1/2 446 17−1/2 446 13−1/4 337 53−1/4 1353
CR33-30/36B−F 17−1/2 446 17−1/2 446 16−1/8 410 56−1/8 1426
CR33-30/36C−F 21 533 21 533 16−1/8 410 56−1/8 1426
CR33-48B−F
21 533 17−1/2 446 20 508 60 1524
CR33-48C−F
21 533 21 533 20 508 60 1524
CR33-50/60C−F 24−1/2 622 21 533 23−5/8 600 53−5/8 1362
CR33-60D−F 24−1/2 622 24−1/2 622 23−5/8 600 53−5/8 1362
HORIZONTAL POSITION
Model
A B
Model
Number
in.
mm in. mm
CH33−36B−2F
CH33−36C−2F
CH33−42B−2F
CH33−48C−2F
CH33−60D−2F
26−1/2 673 66−1/2 1689
CH33−44/48B−2F
CH33−50/60C−2F
CH33−62D−2F
31−1/2 800 71−1/2 1816

Lennox G61MPV Specifications

General

Blower Type	Variable speed
Energy Star Certified	Yes
Gas Valve	Modulating
Fuel Type	Natural gas or propane
Ignition Type	Electronic
Heating Stages	2
Warranty	Limited Lifetime warranty on heat exchanger; 10-Year limited warranty on covered components
Heating Capacity	44, 000 to 132, 000 BTUH
