Lennox G61MPV User Manual

Page 43

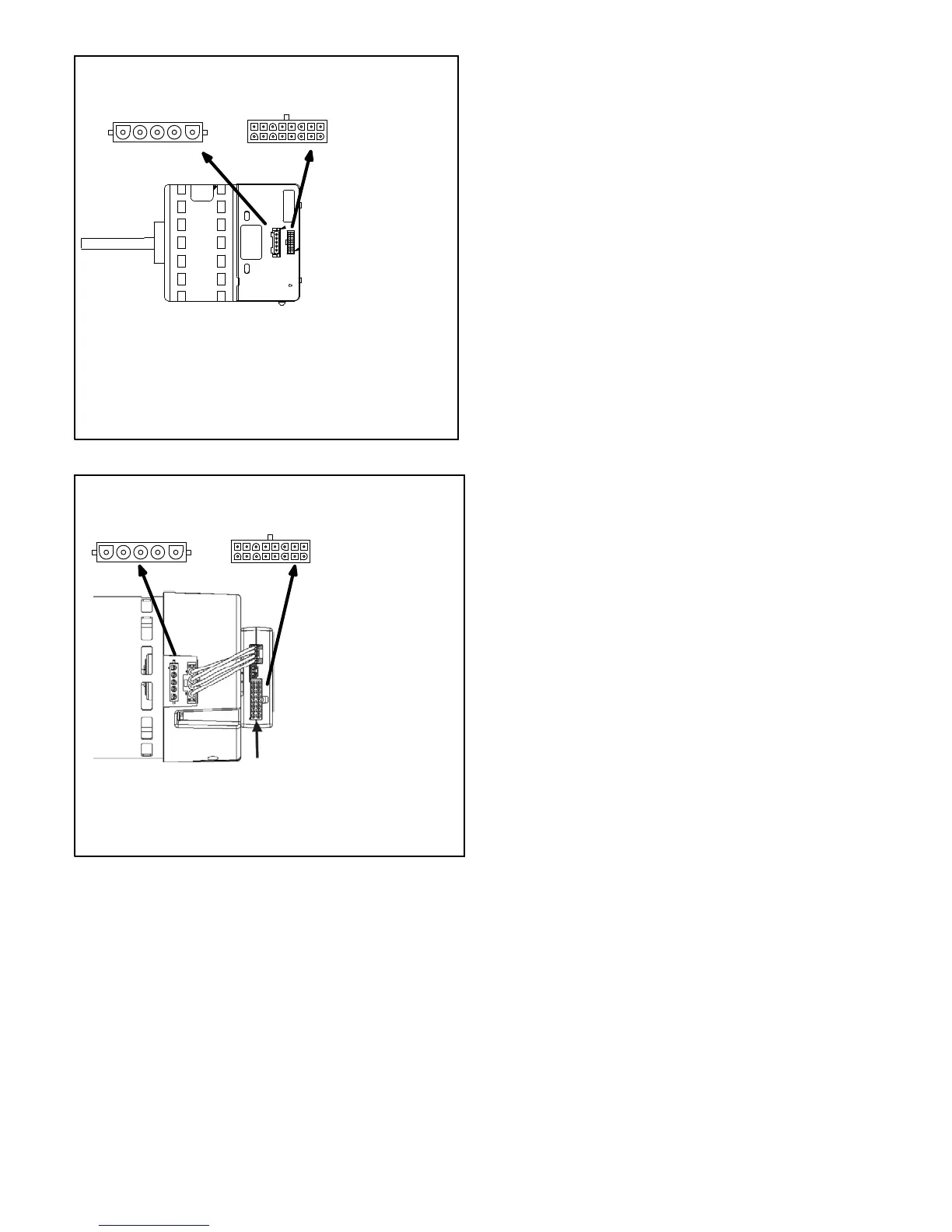

FIGURE 11
POWER
CONNECTOR J48
CONTROL
CONNECTOR J49
GenTeq HARNESS CONNECTORS
J49
PIN 1 - C1
PIN 2 - W / W1
PIN 3 - C2
PIN 4 − Delay
PIN 5 - Cool
PIN 6 - Y1
PIN 7 - Adjust
PIN 8 - 0ut
PIN 9 - 0
PIN 10 - DS(PWM)
PIN 11 - Heat
PIN 12 - R
PIN 13 - EM / W2
PIN 14 - Y / Y2
PIN 15 - G
PIN 16 - Out +
J48
PIN 1 - Jumper PIN 1 to PIN2 for 120VAC line input only.
PIN 2 - Jumper PIN 1 to PIN2 for 120VAC line input only.
PIN 3 - Ground
PIN 4 - AC Line
PIN 5 - AC Line
1
1
16
FIGURE 12
EMERSON MOTOR HARNESS CONNECTORS
POWER
CONNECTOR J48
CONTROL
CONNECTOR J49
1
J49
PIN 1 - C1
PIN 2 - W / W1
PIN 3 - C2
PIN 4 − Delay
PIN 5 - Cool
PIN 6 - Y1
PIN 7 - Adjust
PIN 8 - 0ut
PIN 9 - 0
PIN 10 - DS(PWM)
PIN 11 - Heat
PIN 12 - R
PIN 13 - EM / W2
PIN 14 - Y / Y2
PIN 15 - G
PIN 16 - Out +
J48
PIN 1 - Jumper PIN 1 to PIN2 for 120VAC line input only.
PIN 2 - Jumper PIN 1 to PIN2 for 120VAC line input only.
PIN 3 - Ground
PIN 4 - AC Line
PIN 5 - AC Line
16
1
Power Choke (L13)
A choke coil is used on G61MPV 5 ton 1 hp units. The
choke is located on the blower housing and is used to sup-
press transient current spikes.
Precautions
If the G61MPV or its electronically controlled blower motor is
improperly or inadequately grounded, it may cause television
interference (commonly known as RFI or radio frequency in-
terference).
This interference is caused by internal switching fre-
quencies of the motor controller. TV interference may
show up as small specks or lines which randomly appear
on the TV screen accompanied by pops or clicks in the sound.
Before attempting any service, make sure the indoor unit is
causing the interference. To check, disconnect power to indoor
unit then check TV for continued signs of interference.
TV interference may be stopped by making sure the mo-
tor is solidly grounded to the cabinet (metal to metal) and
by making sure the cabinet is solidly grounded. If TV in-
terference persists, make sure the television (and all af-
fected RF appliances) are moved away from the G61MPV.
Also make sure affected appliances are connected to a sepa-
rate electrical circuit.

Lennox G61MPV Specifications

General

Blower Type	Variable speed
Energy Star Certified	Yes
Gas Valve	Modulating
Fuel Type	Natural gas or propane
Ignition Type	Electronic
Heating Stages	2
Warranty	Limited Lifetime warranty on heat exchanger; 10-Year limited warranty on covered components
Heating Capacity	44, 000 to 132, 000 BTUH
