2nd STAGE
EVAPORATOR
COIL
1st STAGE
EVAPORATOR COIL

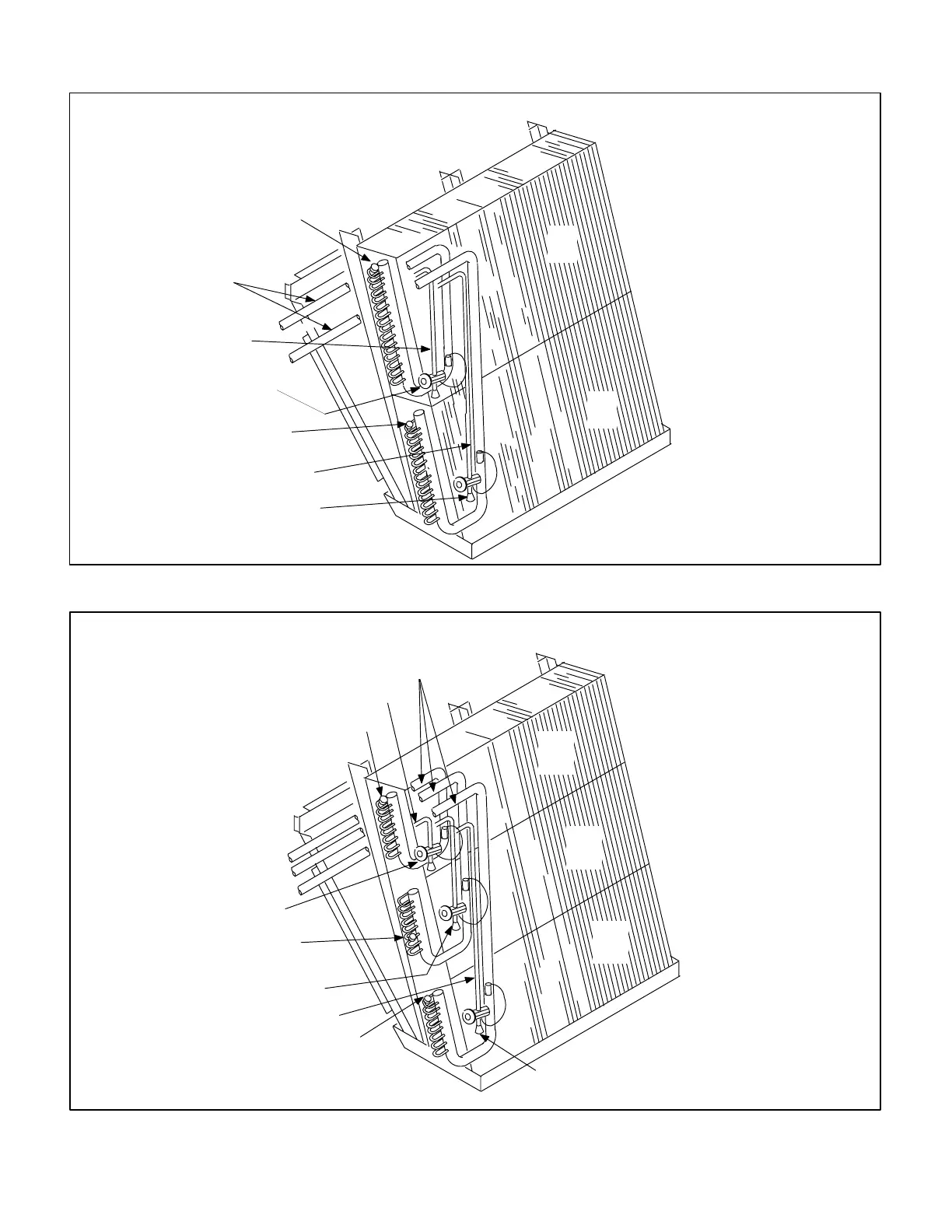

GCS16823, 953, 1353, 1603 EVAPORATOR PLUMBING
FIGURE 34
1
2
LIQUID LINE
2nd STAGE
EXPANSION VALVE
1ST STAGE
EXPANSION VALVE
FREEZESTAT
S50
FREEZESTAT
S49
SUCTION LINE
LIQUID LINE
GCS16-1853 PLUMBING COMPONENTS
EVAPORATOR SECTION
FIGURE 35
LIQUID LINE
LIQUID LINE
1
2
3
1st STAGE
COMP. 1
EVAPORATOR COIL
1st STAGE
COMP. 2
EVAPORATOR COIL
2nd STAGE
COMP. 3
EVAPORATOR COIL
2nd STAGE EXPANSION VALVE
1ST STAGE PUMP 2
EXPANSION VALVE
FREEZESTAT
S53
FREEZESTAT
S50
FREEZESTAT
S49
1ST STAGE PUMP 1
EXPANSION VALVE
SUCTION LINE
