Lennox GCS16-240 User Manual

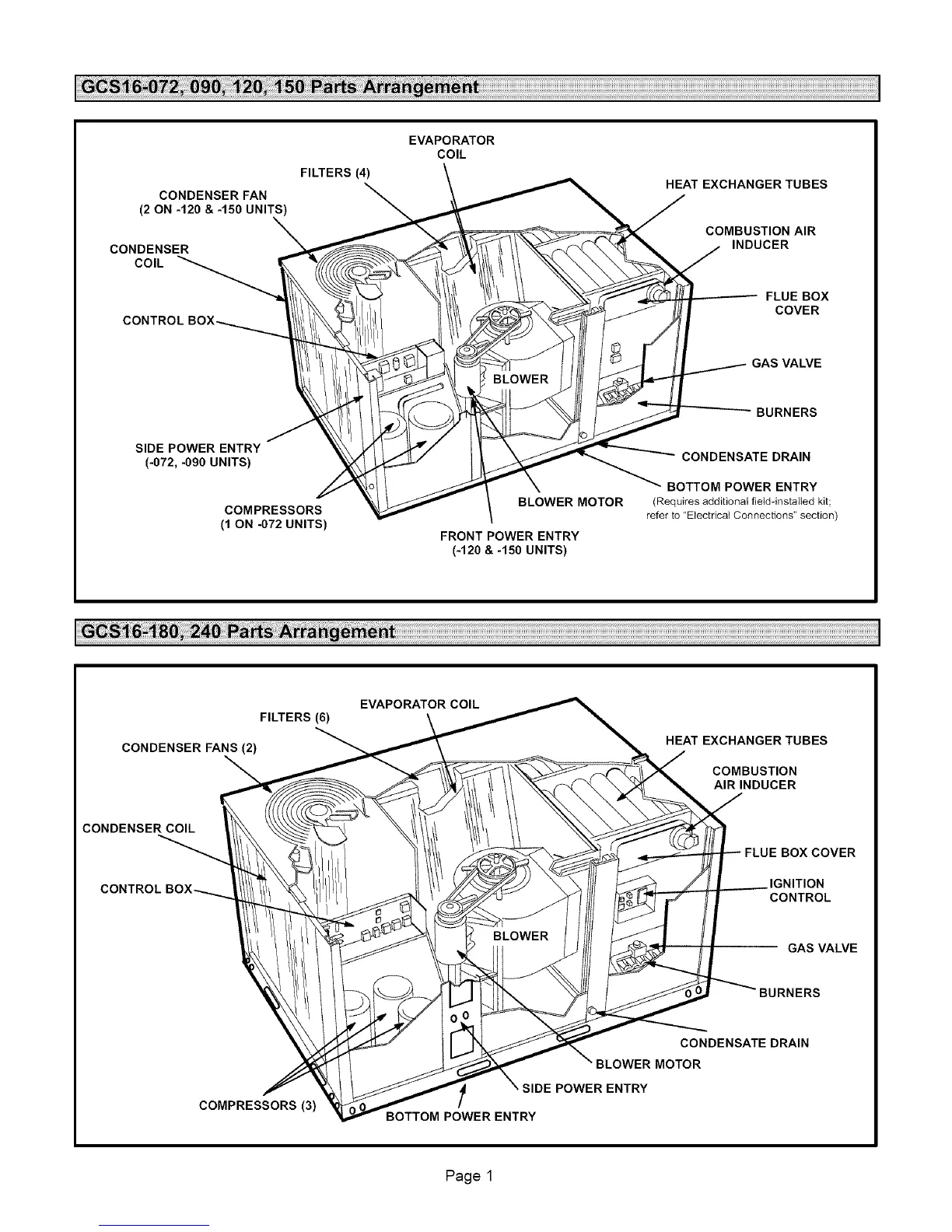

CONDENSER FAN
(2 ON -120 & -150 UNITS)
CONDENSER
COIL
CONTROLBOX_
SIDE POWER ENTRY
(-072, -090 UNITS)
COMPRESSORS
(10N-072UNITS)
FILTERS (4)
EVAPORATOR
COIL
HEAT EXCHANGERTUBES
COMBUSTION AIR
INDUCER
FLUE BOX
COVER
GAS VALVE
BURNERS
CONDENSATE DRAIN
BOTTOM POWER ENTRY
BLOWER MOTOR (Requires additionalfield-installed kit;
refer to "Electrical Connections" section)
FRONT POWER ENTRY
(-120 & -150 UNITS)
EVAPORATOR COIL
FILTERS (6)
CONDENSER FANS (2)
HEAT EXCHANGERTUBES
COMBUSTION
AIRINDUCER
CONDENSER COIL
CONTROL
COVER
IGNITION
CONTROL
GAS VALVE
COMPRESSORS(3)
BOTTOM POWER ENTRY
CONDENSATE DRAIN
BLOWER MOTOR
POWER ENTRY
Page 1

Lennox GCS16-240 Specifications

General

Brand	Lennox
Model	GCS16-240
Category	Heat Pump
Language	English
