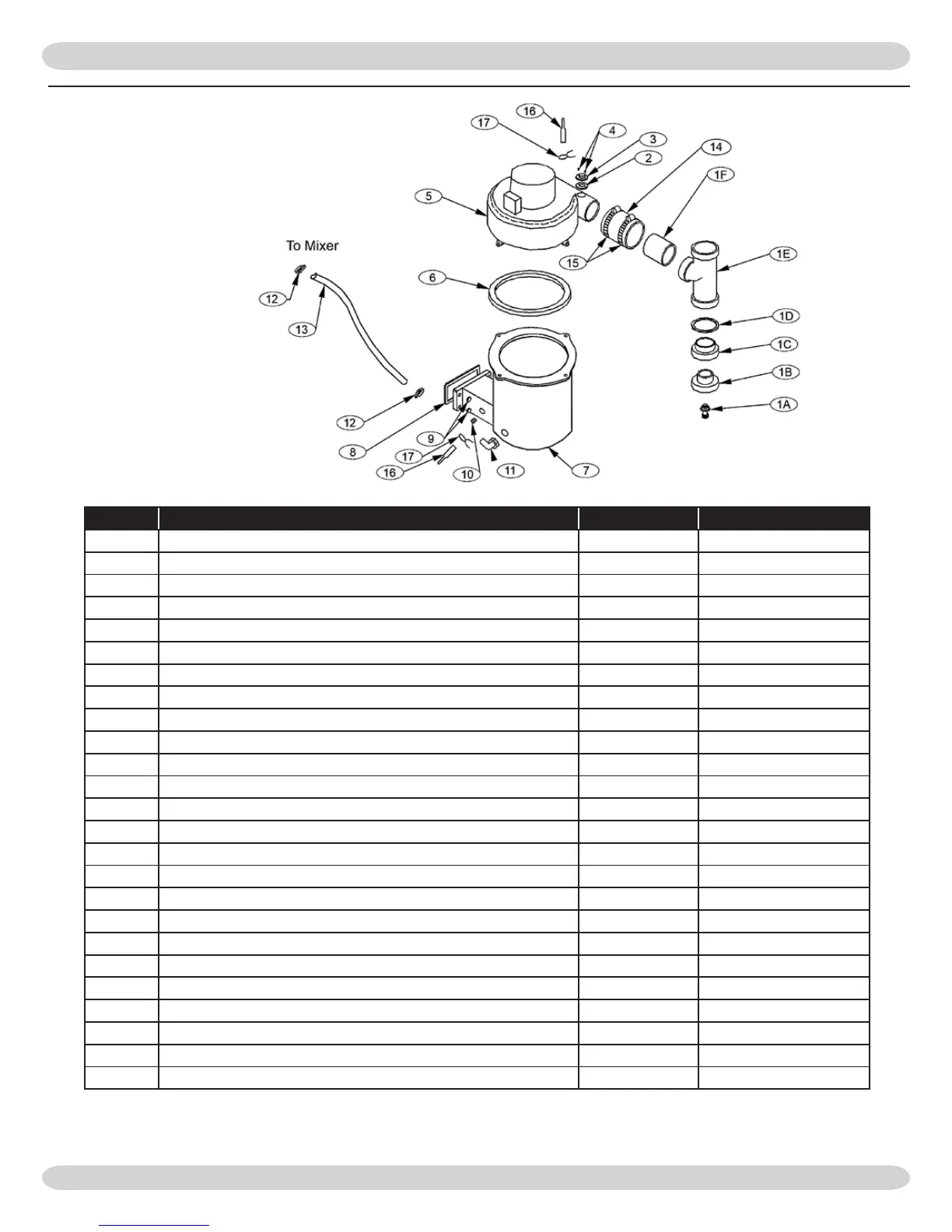

KEY # DESCRIPTION QUANTITY ITEM NUMBER
1 EXHAUST TEE ASSEMBLY - 1-A,B,C,D,E & F 1 43800001
1A 62017 1/2”NPTx1/2”ID TUBE STRAIGHT 1 14631101
1B PVC 1 1/2” MALE SLIP x 1/2” FEMALE NPT 1 14631013
1C PVC SCH 40 2”x1-1/2” REDUCER S636 1 240006817
1D 3/4’’ ALUMINUM FLAT WASHER 1 14695815
1E 2” CPVC TEE, SCH 80 S636 1 240006819
1F 2” CPVC PIPE´2-1/2’’, SCH 40 S636 1 240006821
2 VENT SWITCH GASKET 1 14631028
3 36TX11-22491 INDUCER TEMP SAFETY SWITCH 1 14631303
4 #4-20x1/4” HWH PLAST FORM SCREW 2 14695808
5** INDUCED DRAFT BLOWER KIT 1 2272065
6 BLOWER GASKET 1 14631026
7 FLUE CONNECTOR 1 12101021
8 RECOVERY COIL GASKET 1 14631027
9 1/4”-20 HEX NUT W/SERRATED WASHER BLOCK 4 14695810
10*** 1/8” NPT 1/4” HOSE ID BRASS BARB FITTING 1 14693804
11 62043 1/2’’ NPT´1/2’’ ID TUBE ELBOW 1 14631103
12 57134 3/4’’ SNAP GRIP CLAMP 2 14631141
13 59019 ½’’ ID´1/8 THK VINYL TUBE AS REQUIRED 14631035
14 HOSE, 3” LONG 2-3/8” ID X 2-3/4” OD 1 14631301
15 S. S. CLAMP, SIZE 44 2 14631302
16 PC250-12 VINYL CAP 2 14631151
17 3/8” HOSE CLAMP HC-6ST 2 14631143
* VENT PIPE 2” CPVC SCH-40 X 29½” LONG 2 240006821
* COUPLING CPVC SCH-80 1 240006822
*
- Not Shown
** - Includes items 2,3,4,5,6,16,17
*** - Combustion Test Port
