Lennox GWB9

66
8

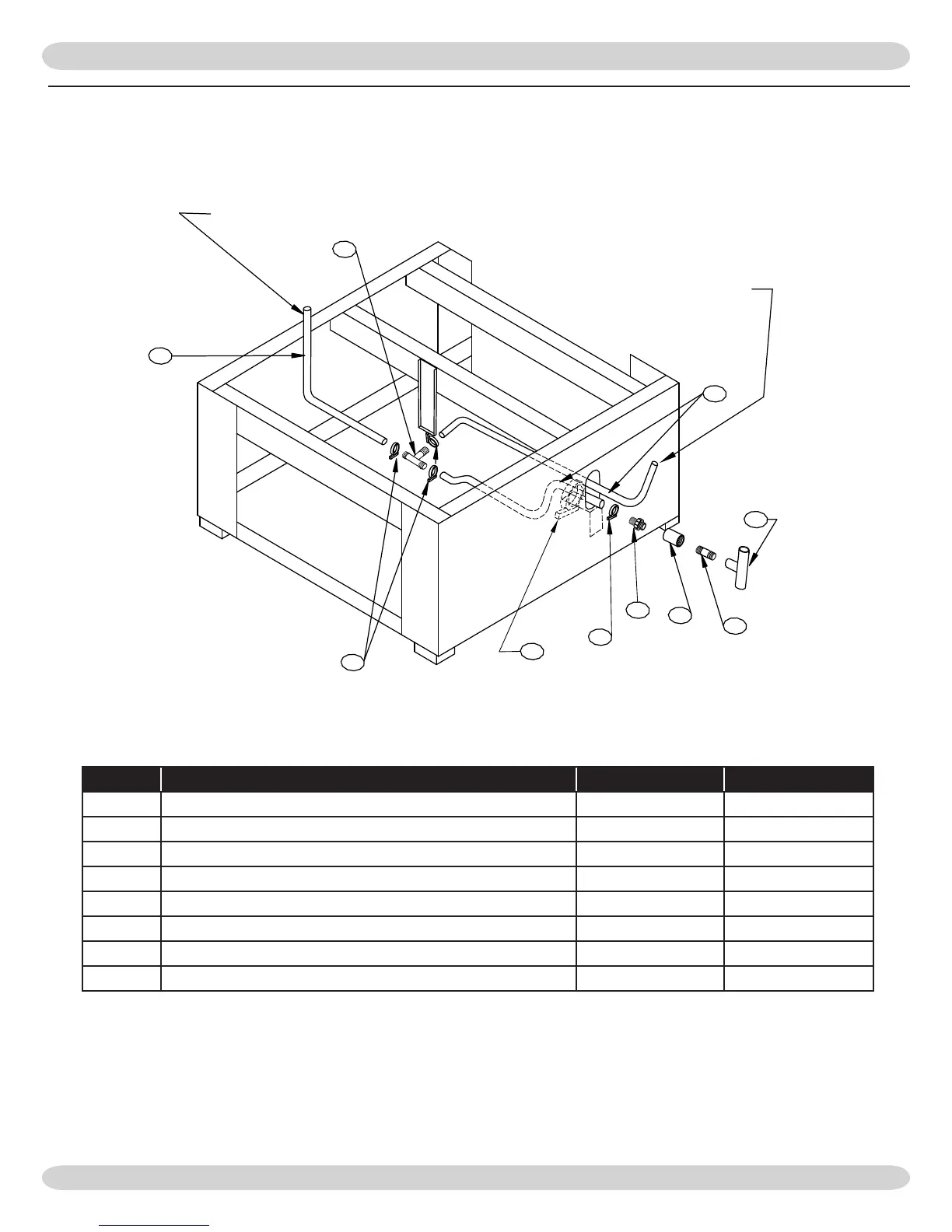

Connect to the drain port at
the bottom of boiler
Connect to the
drain port at
the exhauster
3
1
2
2
4
5
6
7
1
KEY # DESCRIPTION QUANTITY ITEM NUMBER
1 59019 ½”IDx1/8” THK VINYL TUBING AS REQUIRED 14631035
2 57134 ¾” SNAP GRIP CLAMP 6 14631141
3 62067 ½”ID HOSE TEE 1 14631320
4 62017 ½”NPTx ½”ID TUBE STRAIGHT 1 14631101
5 ½” PVC COUPLING, SCH 80 1 14631306
6 ½”´4” PVC NIPPLE, SCH 80 1 14631322
7 TEE PVC ½”SLIP x ½”SLIP x ½”NPT FEMALE 1 14631020
8 S. S. CLAMP, SIZE 16 (13/16”~1 ½”) 1 14631323


