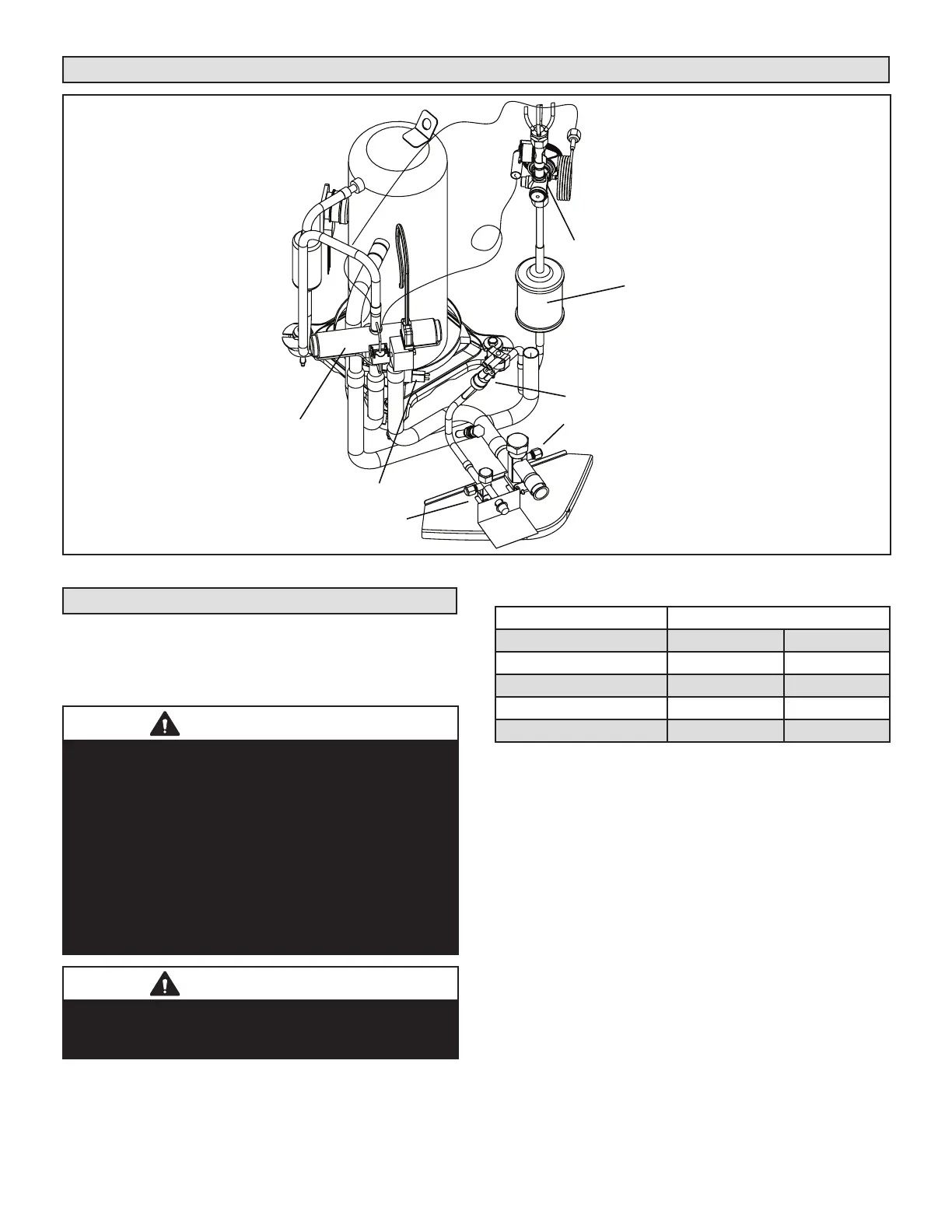

SPECIFICATIONS
General
Data
Model No. ML14XP1-036-233 ML14XP1-042-233 ML14XP1-048-233 ML14XP1-060-233
Nominal Tonnage 33.5
1
Sound Rating Number 76 79 80 80
Connections
(sweat)
Liquid line o.d. - in. 3/83/8 3/8 3/8
Vapor line o.d. - in. 7/87/8 7/8 1-1/8
2
Refrigerant R-410A charge furnished 8 lbs. 10 oz.11 lbs. 14 oz.10 lbs. 7 oz.12 lbs. 11 oz.
Outdoor
Coil
Net face area - sq. ft. Outer coil 21.0 24.9324.93 29.09
Inner coil 20.3 24.1324.13 28.16
Tube diameter - in. 5/16 5/16 5/16 5/16
No. of rows
Fins per inch 22 22 22 22
Outdoor
Fan
Diameter - in. 22 22 22 22
No. of Blades
Motor hp 1/61/3 1/
/3
Cfm 28704347 4347 4500
Rpm 839843 843830
Watts 205299 299307
Shipping Data - lbs. 1 package 229272 273295
ELECTRICAL DATA
Line voltage data - 60 Hz - 3ph 208/230V208/230V 208/230V 208/230V
3
Maximum overcurrent protection (amps) 20 30 30 30
4
Minimum circuit ampacity 12.2 18.3 18.5 18.3
Compressor Rated Load Amps 9.013.513.713.2
Locked Rotor Amps 71 88 83.1 93
Power Factor 0.80 0.84 0.91 0.97
Outdoor
Fan Motor
Full Load Amps 1.01.8 1.
.8
Locked Rotor Amps 1.92.9 2.
.9
OPTIONAL ACCESSORIES - ORDER SEPARATELY
45F08
Compressor Sound Cover 69J03
Freezestat 3/8 in. tubing 93G35
5/8 in. tubing 50A93
58M81
5
Low Ambient Kit (30°F) 54M89
⁵ Low Ambient
Control (0°F)
Speed Control X5867
Weatherproof Kit 56N41
Mild Weather Kit 11B97
Monitor Kit - Service Light 76F53
Outdoor
Thermostat Kit
Thermostat 10Z23
Mounting Box 31461
Refrigerant Line
Sets
L15-65-30, L15-65-40, L15-65-50 •••
Field Fabricate •
Snow Guard 94M98
94J45
NOTE - Extremes of operating range are plus 10% and minus 5% of line voltage.
