• 12 •
SSP
Installation, operation and maintenance / INALTO-IOM-1809-E
Size 05 to 28
x8 Screw TC+M5x12 UNI7687
x6 Hex nut M5 fl anged with corrugated washer DIN4161
Sizes 49 & 57
x10 Screw TC+M5x12 UNI7687
x6 Hex nut M5 fl anged with corrugated washer DIN4161
Size 05 to 28
x5 Screw TC+M5x12 UNI7687
x4 Hex nut M5 fl anged with corrugated washer DIN4161
Sizes 49 & 57
x6 Screw TC+M5x12 UNI7687
x4 Hex nut M5 fl anged with corrugated washer DIN4161
CANALIZABLE SIDE
Lined up to the edge
UNIT + ACCESSORIES
SIDE
Shorter to mix the air fl ow

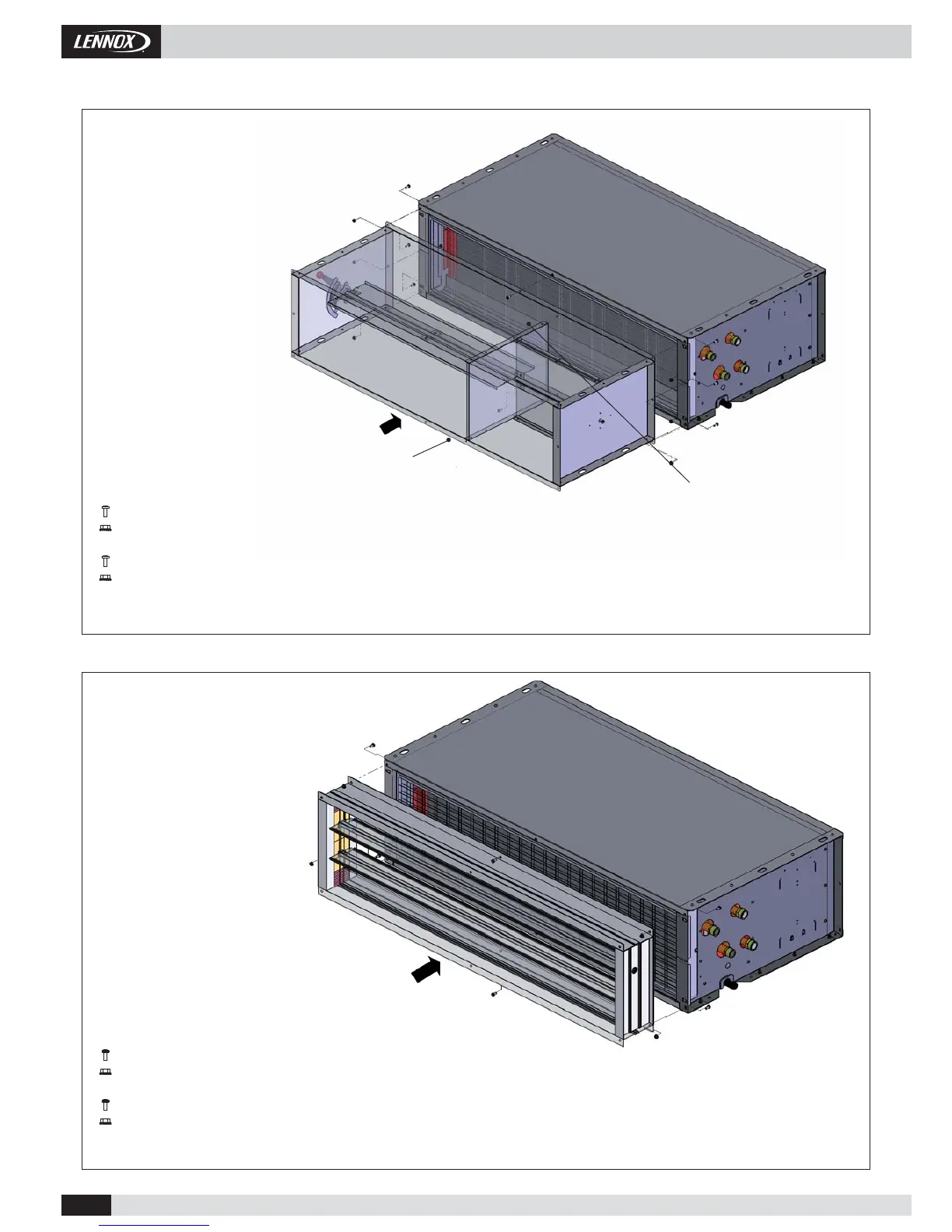

ASSEMBLY DIAGRAMS
Figure 17
Figure 18
ALUMINIUM DAMPER
