• 21 •
PE
L
N
Com
I
II
III
A2
C1
M1
Installation, operation and maintenance / INALTO-IOM-1809-E
Sizes 25 & 28
Cross section area = 1,5 mmq
UNIT LIMIT
LXTFF01M
LEGEND:
PE Earth (yellow/green)
L Phase
N Neutral
Com Common
I Minimum speed
II Medium speed
III Maximum speed
A2 SDP power chart
C1 Capacitor
M1 Motor
Pic. 33

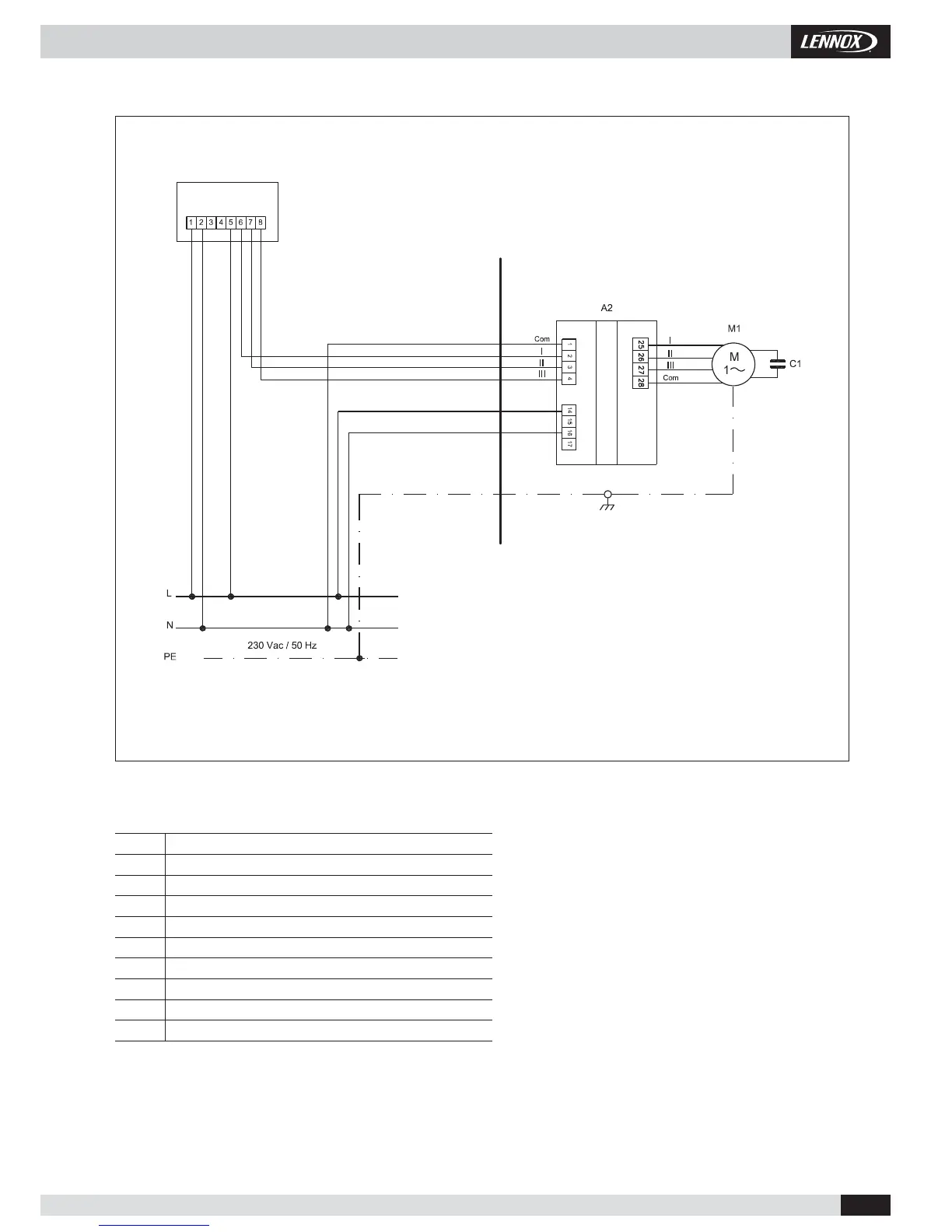

3-SPEED MOTOR + LXTFF01M CONTROLLER
WIRING DIAGRAM
