• 20 •
PE
Com
I
II
III
A2
C1
M1
XA1
Installation, operation and maintenance / INALTO-IOM-1809-E
Size 05 to 15
LEGEND:
Earth (yellow/green)
Common
Minimum speed
Medium speed
Maximum speed
SDP power chart (ACCESSORY NECESSARY)
Capacitor
Motor
Terminal board for fan speed control M1

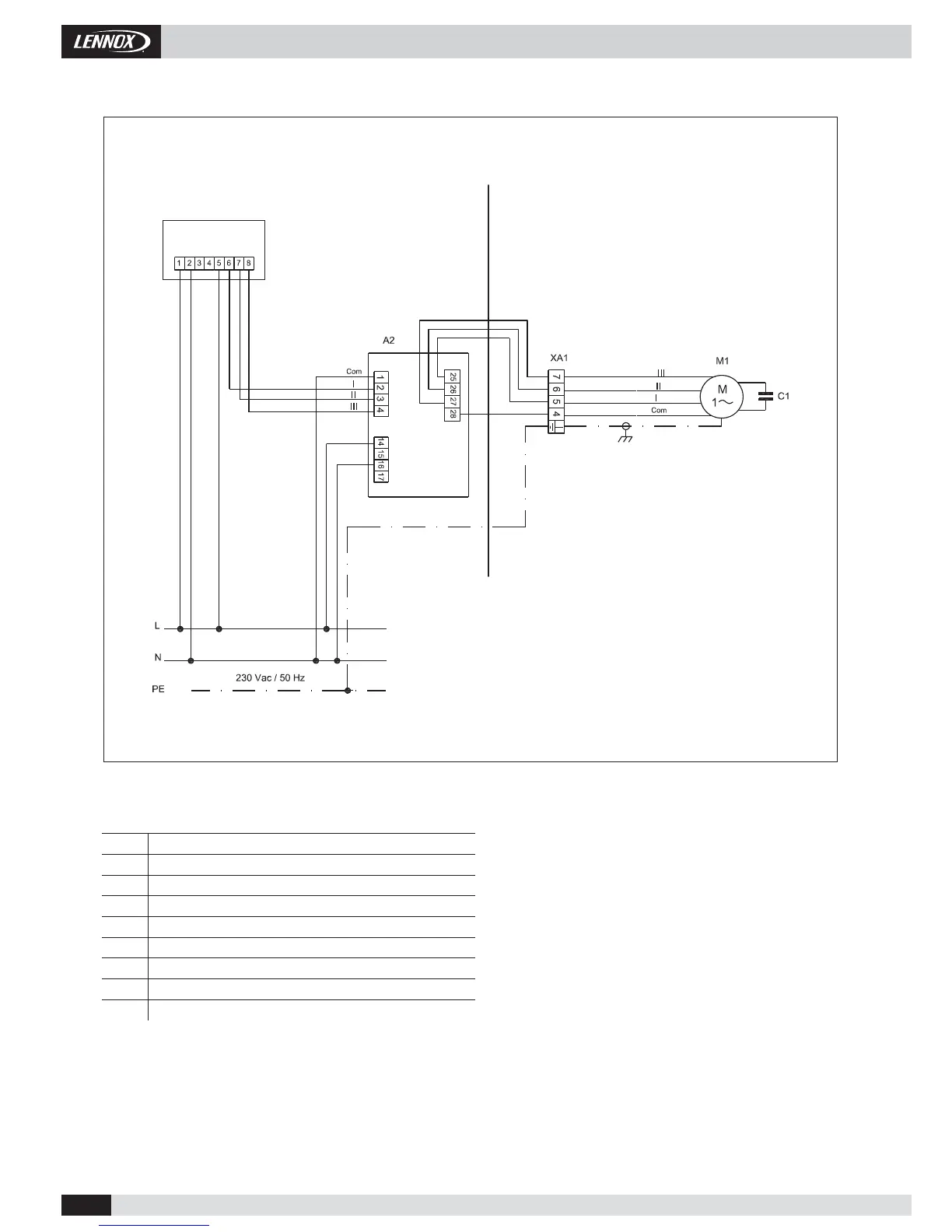

Pic. 32
Cross section area = 1 mmq
UNIT LIMIT
LXTFF01M
3-SPEED MOTOR + LXTFF01M CONTROLLER
WIRING DIAGRAM
