• 24 •
PE
L
N
A1
M1
XA1
TH1
Installation, operation and maintenance / INALTO-IOM-1809-E
Sizes 25 & 28
LEGEND:
PE Earth (yellow/green)
L Phase
N Neutral
A1 Electronic control
M1 Motor
XA1 Terminal board
TH1 Thermal protector

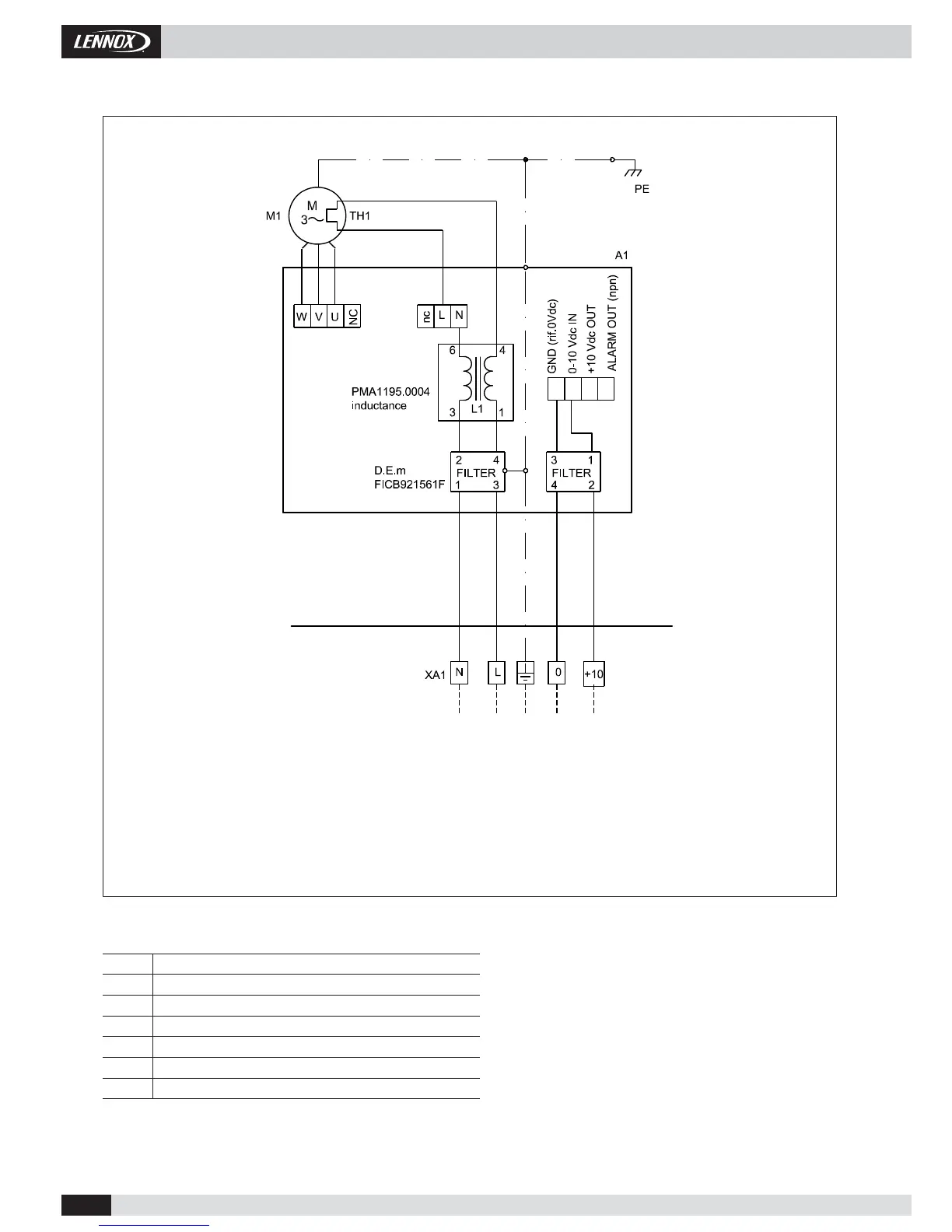

Pic. 36
EC MOTOR
UNIT LIMIT
FAN SPEED CONTROL
0-10 Vdc
2x0,5mmq
(shielded and twisted)
POWER SUPPLY ELECTRONIC CONTROL
230Vac/50Hz
3x1,5mmq
WIRING DIAGRAM
