• 28 •
PE
L
N
A1
A2
M1
M2
XA1
TH1
TH2
Installation, operation and maintenance / INALTO-IOM-1809-E
Sizes 49 & 57

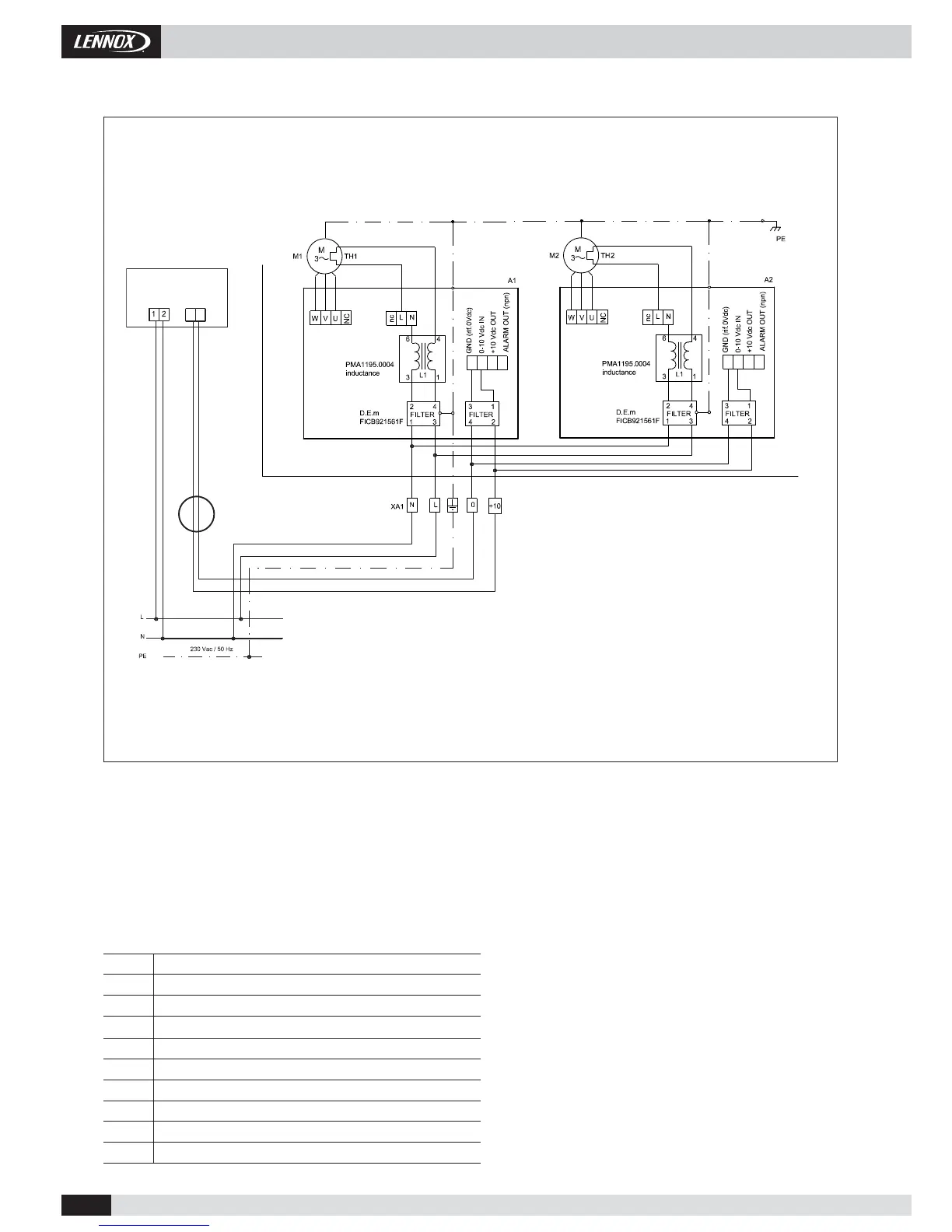

Pic. 40
EC MOTOR + LXTFZ01M CONTROLLER
LEGEND:
Earth (yellow/green)
Phase
Neutral
Electronic control
Electronic control
Motor
Motor
Terminal board
Thermal protector
Thermal protector
LXTFZ01M
LIMITE DELLA MACCHINA
11 12
Shielded and
twisted cable
2x0,50 mmq
Cross section area not indicated = 2,5 mmq
UNIT LIMIT
WIRING DIAGRAM
