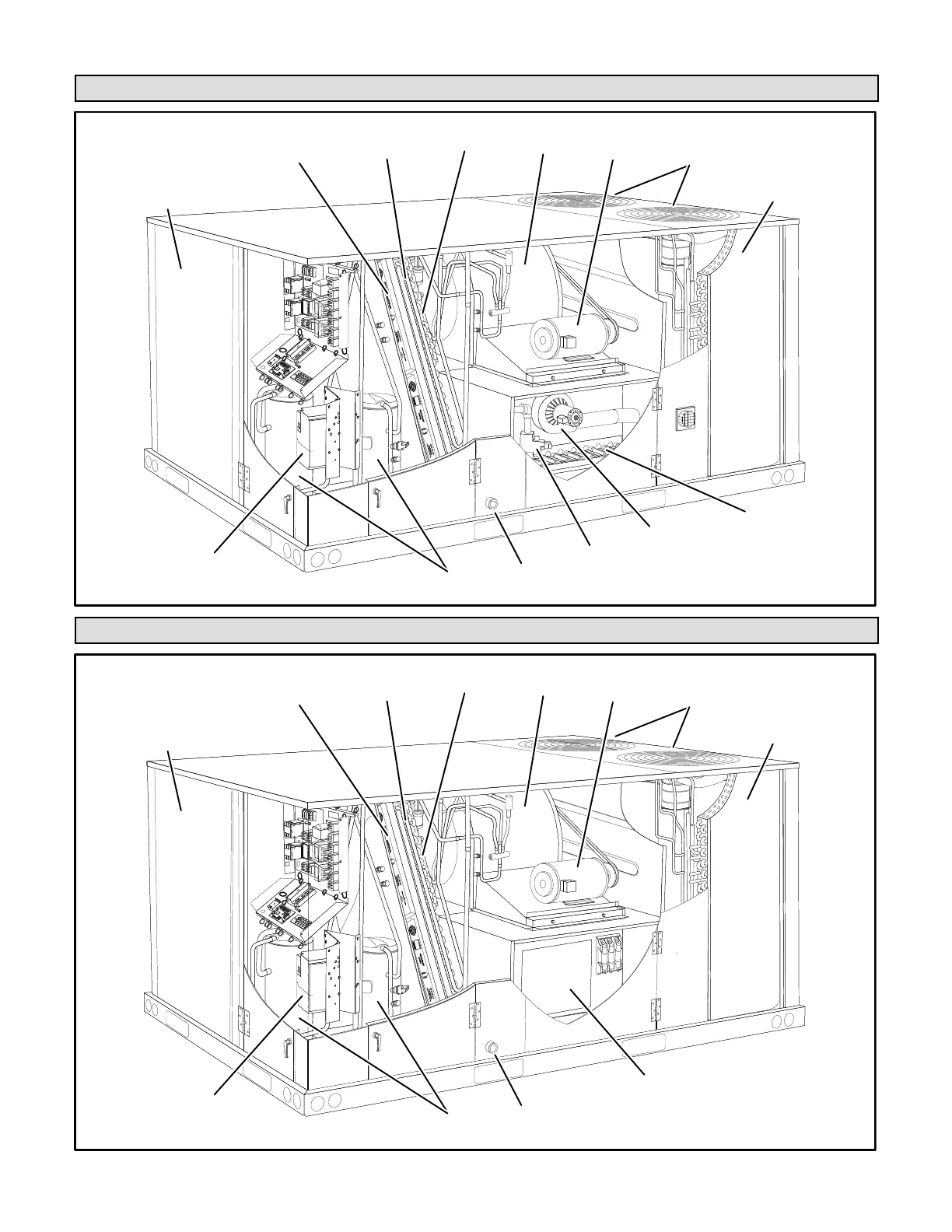

KG 092, 102, 120, & 150 PARTS ARRANGEMENT
EVAPORATOR
COIL
CONDENSER
FANS
CONDENSER
COIL
COMPRESSORS
CONDENSATE
DRAIN
FILTERS
(FOUR - 20 X 25 X 2”)
ECONOMIZER
(OPTIONAL, BEHIND
PANEL)
GAS VALVE
BURNERS
COMBUSTION
AIR INDUCER
BLOWER
INVERTER
REHEAT
COIL
BLOWER
MOTOR
KC 092, 102, 120, & 150 PARTS ARRANGEMENT
ELECTRIC HEAT
(OPTIONAL)
EVAPORATOR
COIL
CONDENSER
FANS
CONDENSER
COIL
COMPRESSORS
CONDENSATE
DRAIN
FILTERS
(FOUR - 20 X 25 X 2”)
ECONOMIZER
(OPTIONAL, BEHIND
PANEL)
BLOWER
INVERTER
REHEAT
COIL
BLOWER
MOTOR
