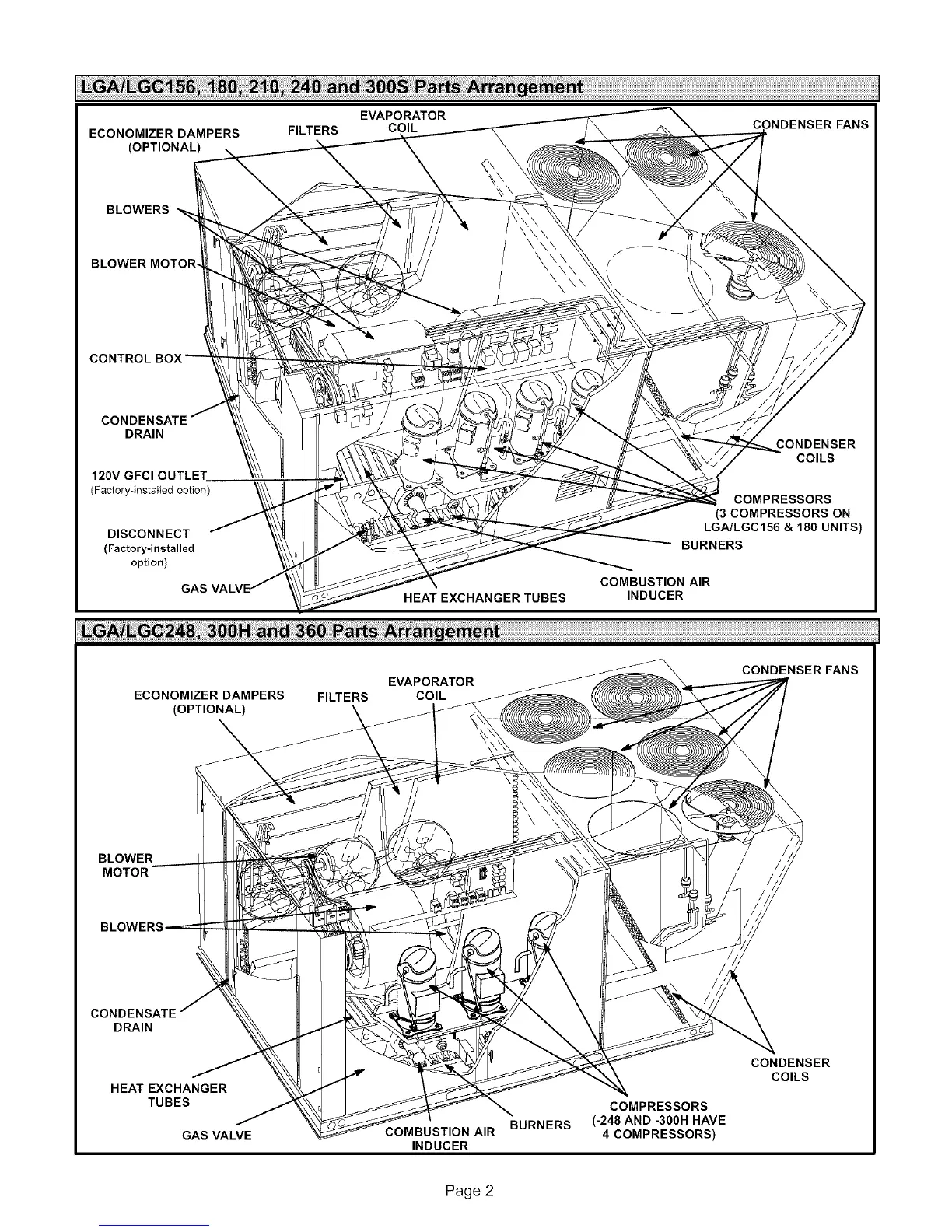

BLOWERS
BLOWER MOTOR,
CONTROL
CONDENSATE
DRAIN
120V GFCI OUTLET
(Factory-installed option)
DISCONNECT
(Factory=installed
option)
HEAT EXCHANGER TUBES
CONDENSER
COILS
COMPRESSORS
(3COMPRESSORS ON
LG_LGC156&180UNITS)
BURNERS
COMBUSTION AIR
INDUCER
ECONOMIZER DAMPERS
(OPTIONAL)
EVAPORATOR
FILTERS COIL
CONDENSER FANS
BLOWER
MOTOR
CONDENSATE
DRAIN
HEAT EXCHANGER
TUBES
GAS VALVE
COMBUSTION AIR
INDUCER
BURNERS
COMPRESSORS
(-248 AND -300H HAVE
4 COMPRESSORS)
CONDENSER
COILS
Page 2
