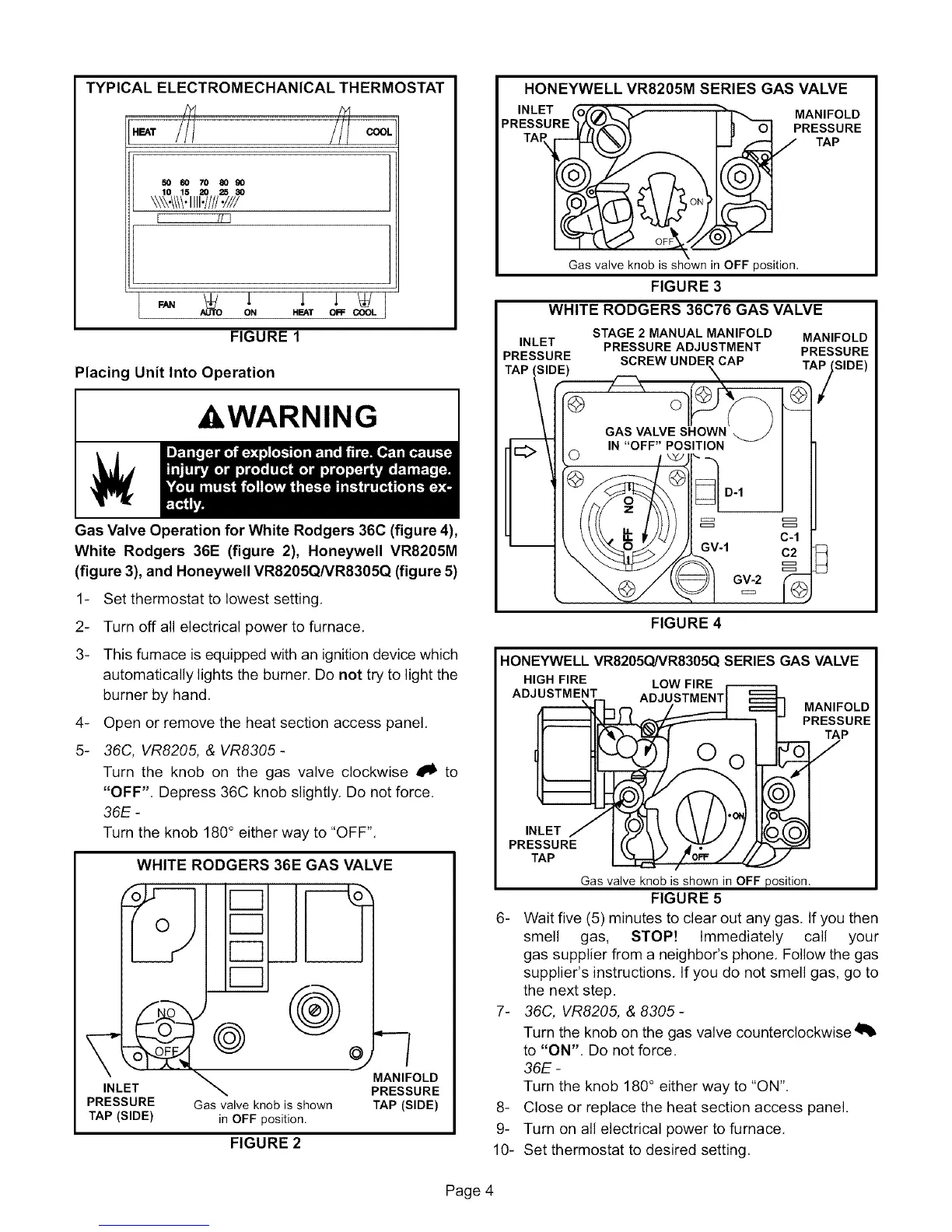

TYPICAL ELECTROMECHANICAL THERMOSTAT
-//I //I
50 60 70 80 g0
10 15 20 25 80
\\\\'\/\/"IIII"11II"////
i !!I
ON HEAT OFF COOL
FIGURE 1
Placing Unit Into Operation
,&WARNING
Gas Valve Operation for White Rodgers 36C (figure 4),
White Rodgers 36E (figure 2), Honeywell VR8205M
(figure 3), and Honeywell VR8205QNR8305Q (figure 5)
1- Set thermostat to lowest setting,
2- Turn off all electrical power to furnace,
3- This furnace is equipped with an ignition device which
automatically lights the burner, Do not try to light the
burner by hand,
4- Open or remove the heat section access panel,
5- 36C, VR8205, & VR8305-
Turn the knob on the gas valve clockwise _1_ to
"OFF", Depress 36C knob slightly, Do not force,
36E -
Turn the knob 180° either way to "OFF",
WHITE RODGERS 36E GAS VALVE
INLET
PRESSURE
TAP (SIDE)
8
\
Gas valve knob is shown
in OFF position.
-1
MANIFOLD
PRESSURE
TAP (SIDE)
FIGURE 2
I HONEYWELL VR8205M SERIES GAS VALVE
I INLET _ :::::::::::_T"_ MANIFOLD
,, _ PRESTASURE
FIGURE 3
WHITE RODGERS 36C76 GAS VALVE
STAGE 2 MANUAL MANIFOLD MANIFOLD
INLET PRESSURE ADJUSTMENT PRESSURE
PRESSURE SCREW UNDER CAP TAP ;SIDE)
FIGURE 4 -- --
HONEYWELL VR8205_ SE_S G"ASVALVE 1
HIGH FIRE LOW FIRE /
ADJ__ ADJ_;÷__ MAN,FOLD/
r,,PRESSURE/
/
Gas valve knob is shown in OFF position. /
FIGURE 5
6- Wait five (5) minutes to clear out any gas, If you then
smell gas, STOP! Immediately call your
gas supplier from a neighbor's phone, Follow the gas
supplier's instructions, If you do not smell gas, go to
the next step.
7- 36C, VR8205, & 8305 -
Turn the knob on the gas valve counterclockwise 41_
to "ON", Do not force,
36E -
Turn the knob 180 ° either way to "ON",
8- Close or replace the heat section access panel.
9- Turn on all electrical power to furnace,
10- Set thermostat to desired setting,
Page 4
