LGH036−360 Agency
United States
The unit is ETL/CSA certified for outdoor installations only
at the clearances to combustible materials listed on the
unit nameplate and in figures 1, 2 and 3.
LGH036, 048, 060, 072

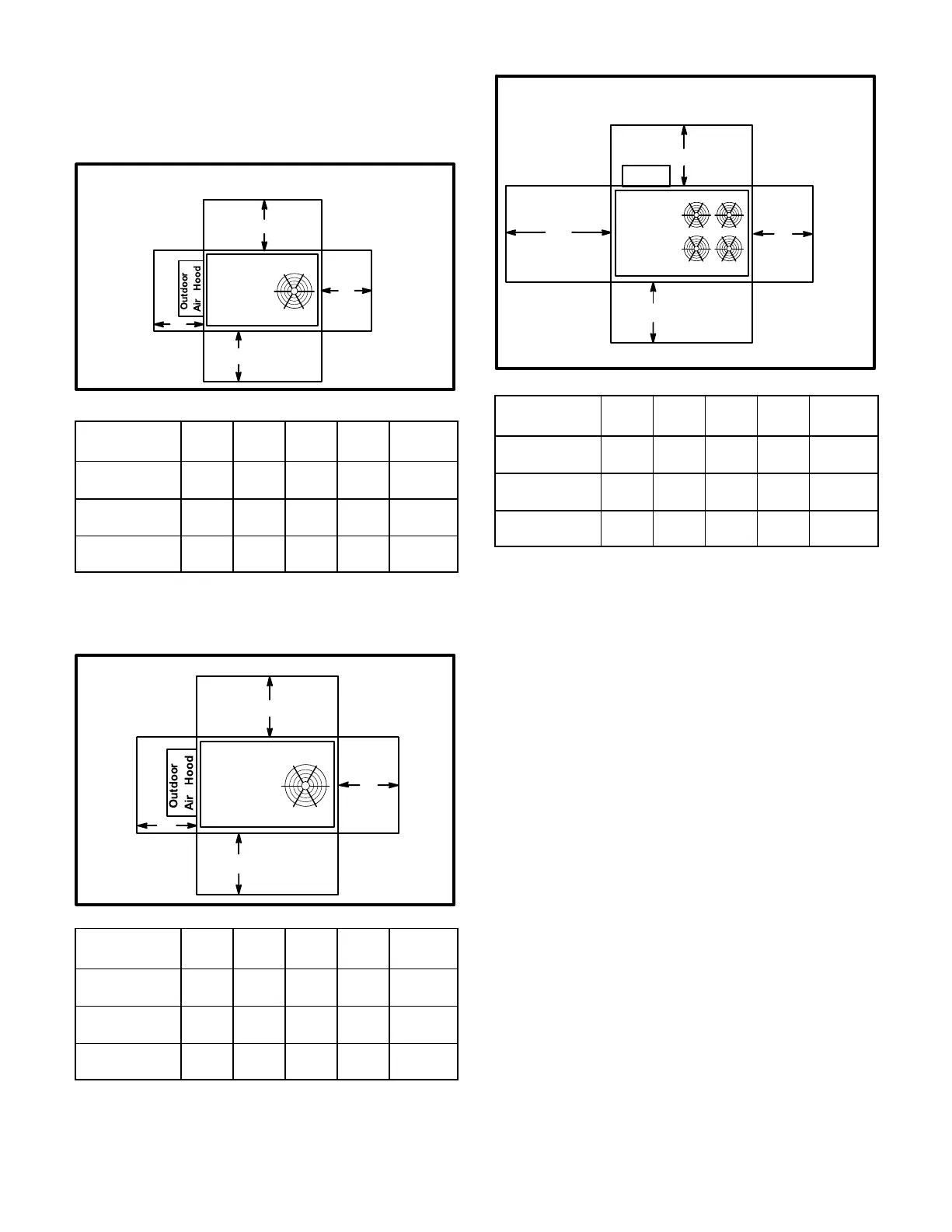

UNIT CLEARANCES
C
D
B
A
FIGURE 1
1
Unit
Clearance
A
in.(mm)
B
in.(mm)
C
in.(mm)
D
in.(mm)
Top
Clearance
Service
Clearance
48
(1219)
36
(914)
36
(914)
36
(914)
Unob-
structed
Clearance to
Combustibles
36
(914)
1
(25)
1
(25)
1
(25)
Unob-
structed
Minimum Opera-
tion Clearance
36
(914)
36
(914)
36
(914)
36
(914)
Unob-
structed
Note − Entire perimeter of unit base requires support when elevated above
mounting surface.
1
Service Clearance − Required for removal of serviceable parts.
Clearance to Combustibles − Required clearance to combustible material.
Minimum Operation Clearance − Required clearance for proper unit operation.
LGH092, 102, 120, 150 UNIT CLEARANCES
FIGURE 2
C
D
B
A
1
Unit
Clearance
A
in.(mm)
B
in.(mm)
C
in.(mm)
D
in.(mm)
Top
Clearance
Service
Clearance
60
(1524)
36
(914)
36
(914)
60
(1524)
Unob-
structed
Clearance to
Combustibles
36
(914)
1
(25)
1
(25)
1
(25)
Unob-
structed
Minimum Opera-
tion Clearance
36
(914)
36
(914)
36
(914)
36
(914)
Unob-
structed
Note − Entire perimeter of unit base requires support when elevated above
mounting surface.
1
Service Clearance − Required for removal of serviceable parts.
Clearance to Combustibles − Required clearance to combustible material.
Minimum Operation Clearance − Required clearance for proper unit operation.
LGH156, 180, 210, 240, 242, 300, 360
UNIT CLEARANCES
C
D
B
A
Outdoor
Air Hood
FIGURE 3
Number of
fans varies
by model.
1
Unit
Clearance
A
in.(mm)
B
in.(mm)
C
in.(mm)
D
in.(mm)
Top
Clearance
Service
Clearance
60
(1524)
36
(914)
36*
(914)
66
(1676)
Unob-
structed
Clearance to
Combustibles
36
(914)
1
(25)
1
(25)
1
(25)
Unob-
structed
Minimum Opera-
tion Clearance
45
(1143)
36
(914)
36**
(914)
41
(1041)
Unob-
structed
*242, 300H and 360 units with high static exhaust fans allow 80in.(2032mm).
**242, 300H and 360 units with high static exhaust fans allow 80in.(2032mm).
Note − Entire perimeter of unit base requires support when elevated above
mounting surface.
1
Service Clearance − Required for removal of serviceable parts.
Clearance to Combustibles − Required clearance to combustible material.
Minimum Operation Clearance − Required clearance for proper unit operation.
Installation of the ETL/CSA certified units must conform
with local building codes. In the absence of local codes,
units must be installed according to the current National
Fuel Gas Code ANSI Z223.1/NFPA 54.
When installed, the unit must be electrically wired and
grounded according to local codes or, in the absence of
local codes, with the current National Electric Code,
ANSI/NFPA 70.
The current American National Standard (ANSI−
Z233.1/NFPA54) National Fuel Gas Code is available
from the following address:
American National Standard Institute Inc.
11 West 42nd Street
New York, NY 10036
The current National Electric Code (ANSI/NFPA 70) is
available from the following address:
National Fire Protection Association
1 Batterymarch Park
PO Box 9101
Quincy, MA 02269−9101
Use only the type of gas approved for use with this
furnace. Refer to unit nameplate.
