Lennox LGH120H4M User Manual

Page 49
−
Circuit 1
Circuit 2
60
70
80
90
100
110
120
100 110 120 130 140 150 160 170 180
Liquid Temperature ( ° F)
Suction Pressure (psig)
Outdoor Temperature (°F)
115°
105°
95°
85°
75°
65°

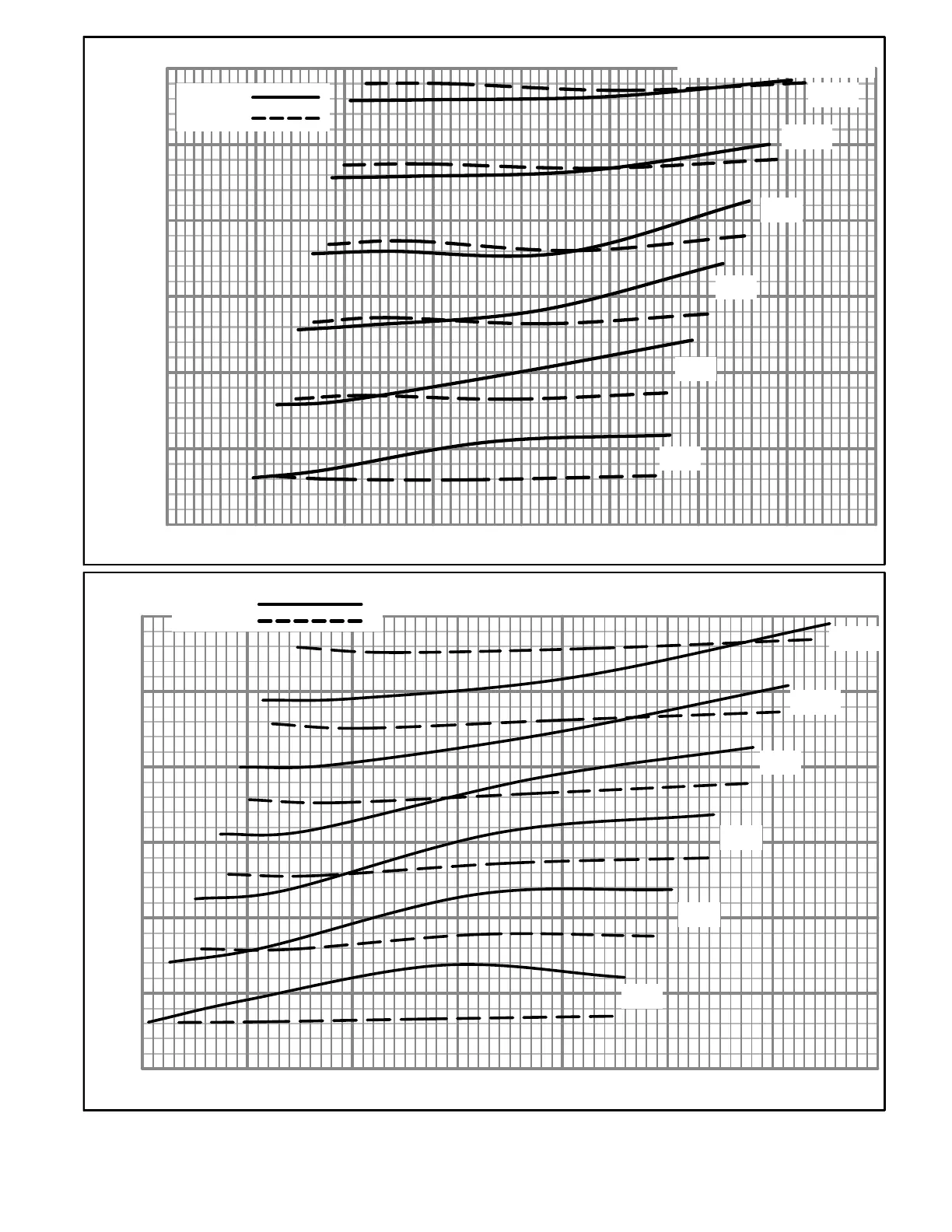

LGH/LCH092H4 Charging Curves - All-Aluminum - TXV
LGH/LCH102H Charging Curves - All-Aluminum - TXV
60
70
80
90
100
110
120
Suction Pressure (psig)
Liquid Temperature ( ° F)
115°
105°
95°
85°
75°
65°
110 120 130 140 150 160 170 180
Outdoor Temperature (°F)
Circuit 1
Circuit 2

Lennox LGH120H4M Specifications

General

Brand	Lennox
Model	LGH120H4M
Category	Air Handlers
Language	English
