Lennox LGH150H

Page 27
Suction Pressure (psig)
115°
105°
95°
85°
75°
65°
60
70
80
90
100
110
120
130
100 110 120 130 140 150 160 170 180
Liquid Temperature (° F)

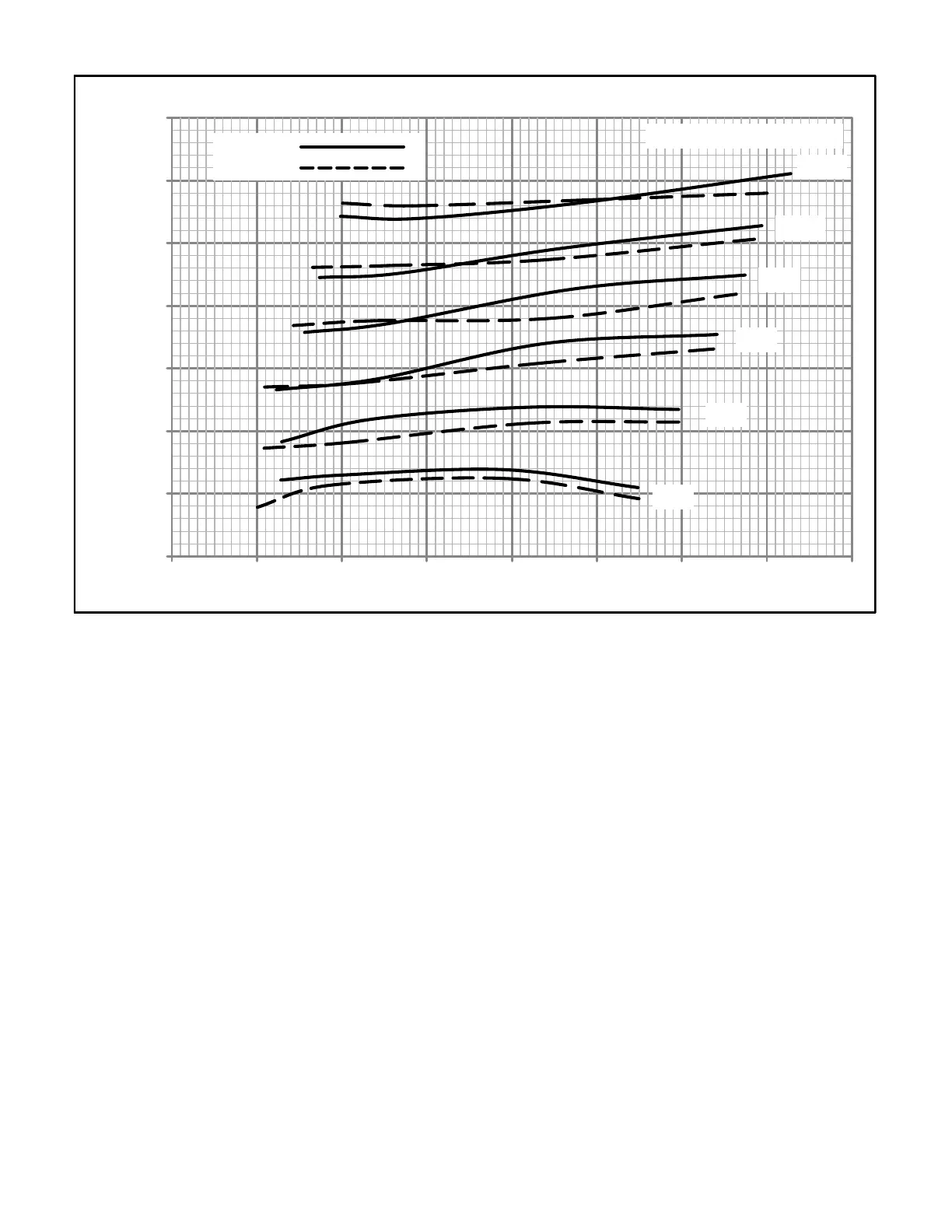

LGH/LCH120H Charging Curves - All-Aluminum - TXV
Circuit 1
Circuit 2
Outdoor Temperature (°F)
580447-02
