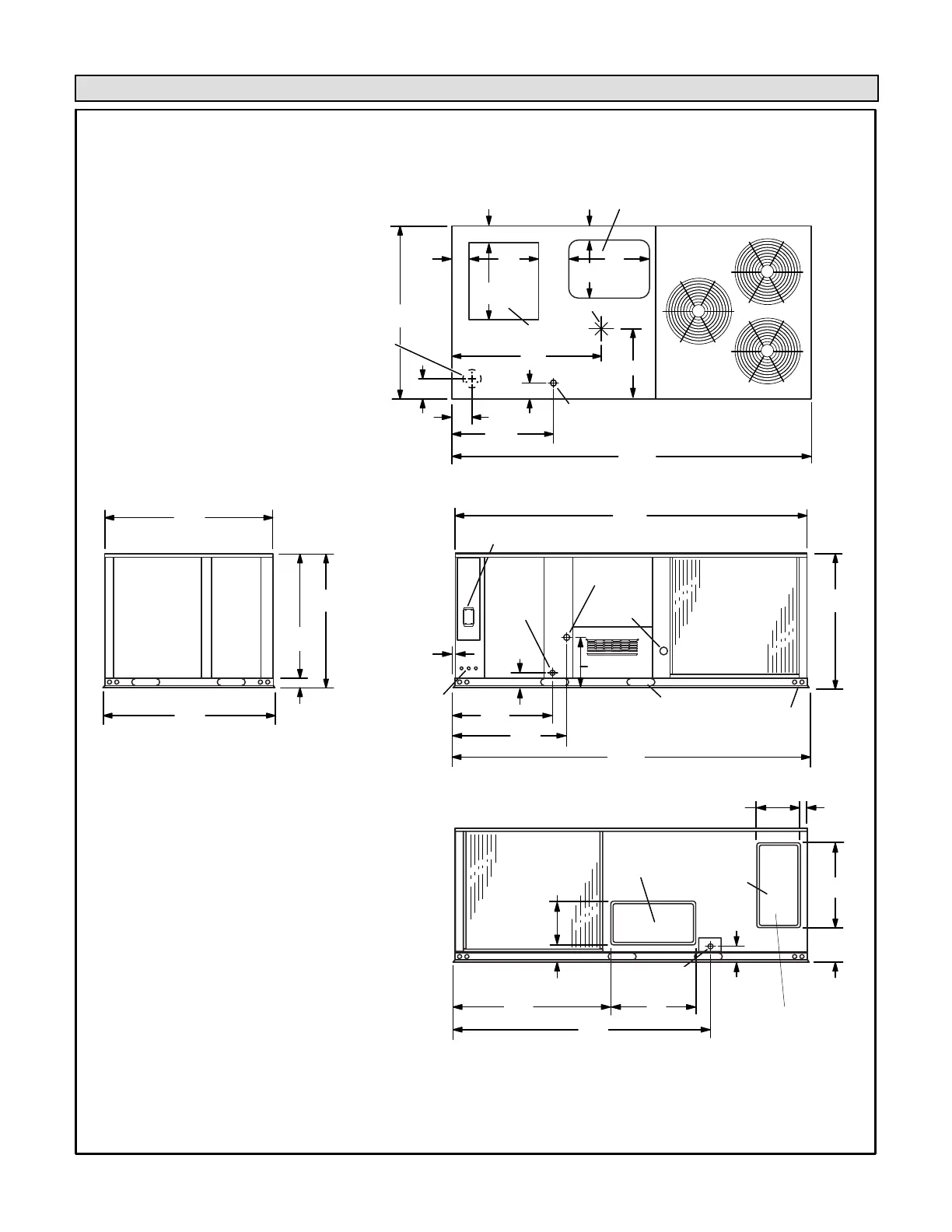

LGH/LCH094, 122, & 152 DIMENSIONS - GAS HEAT SECTION SHOWN
END VIEW
60-1/8
(1527)
58-1/8
46-7/8
(1191)
3-1/2
(89)
43-3/8
(1102)
(1476)
SIDE VIEW
(Horizontal Openings)
HORIZONTAL
RETURN AIR
OPENING
HORIZONTAL
SUPPLY AIR
OPENING
CONDENSATE
DRAIN (BACK)
5-3/8
(137)
6-1/8
(156)
12-1/8
(308)
1-5/8
(41)
54-5/8
(1387)
89-1/2
(2273)
(762)
(762)
(394)
15-1/2
(394)
30
15-1/2
30
BASE
60-1/8 (1527)
CENTER OF
GRAVITY
TOP VIEW
BOTTOM RETURN
AIR OPENING
24
(610)
5-5/8
(143)
6-1/8
(156)
6-1/8
(156)
6-5/8
(168)
28
(711)
27
(686)
20
(508)
AA
DD
EE
FF
BOTTOM
CONDENSATE
124-3/8
(3159)
BB
CC
BOTTOM SUPPLY
AIR OPENING
34-7/8
(886)
BASE
(273)
10-3/4
7 (178)
7 (178)
BOTTOM
POWER ENTRY
5-1/2 (140)
Diameter
SIDE VIEW
LIFTING HOLES
(FOR RIGGING)
124-3/8
(3159)
123-1/8
(3127)
OPTIONAL DISCONNECT
(FACTORY OR FIELD INSTALLED)
5/8
(16)
34-7/8
(886)
5-3/8
(137)
46-7/8
(1191)
FORKLIFT SLOTS
(BOTH SIDES)
CONDENSATE
DRAIN (FRONT)
ELECTRIC
INLETS
GAS SUPPLY
INLET
FLUE
OUTLET
39-7/8
(1013)
18-1/2
(470)
Important - Do not install
horizontal economizers
on this opening. Refer to
economizer instructions
for proper installation.
