107
Installation and Maintenance
Service Manual
a
c
b
a

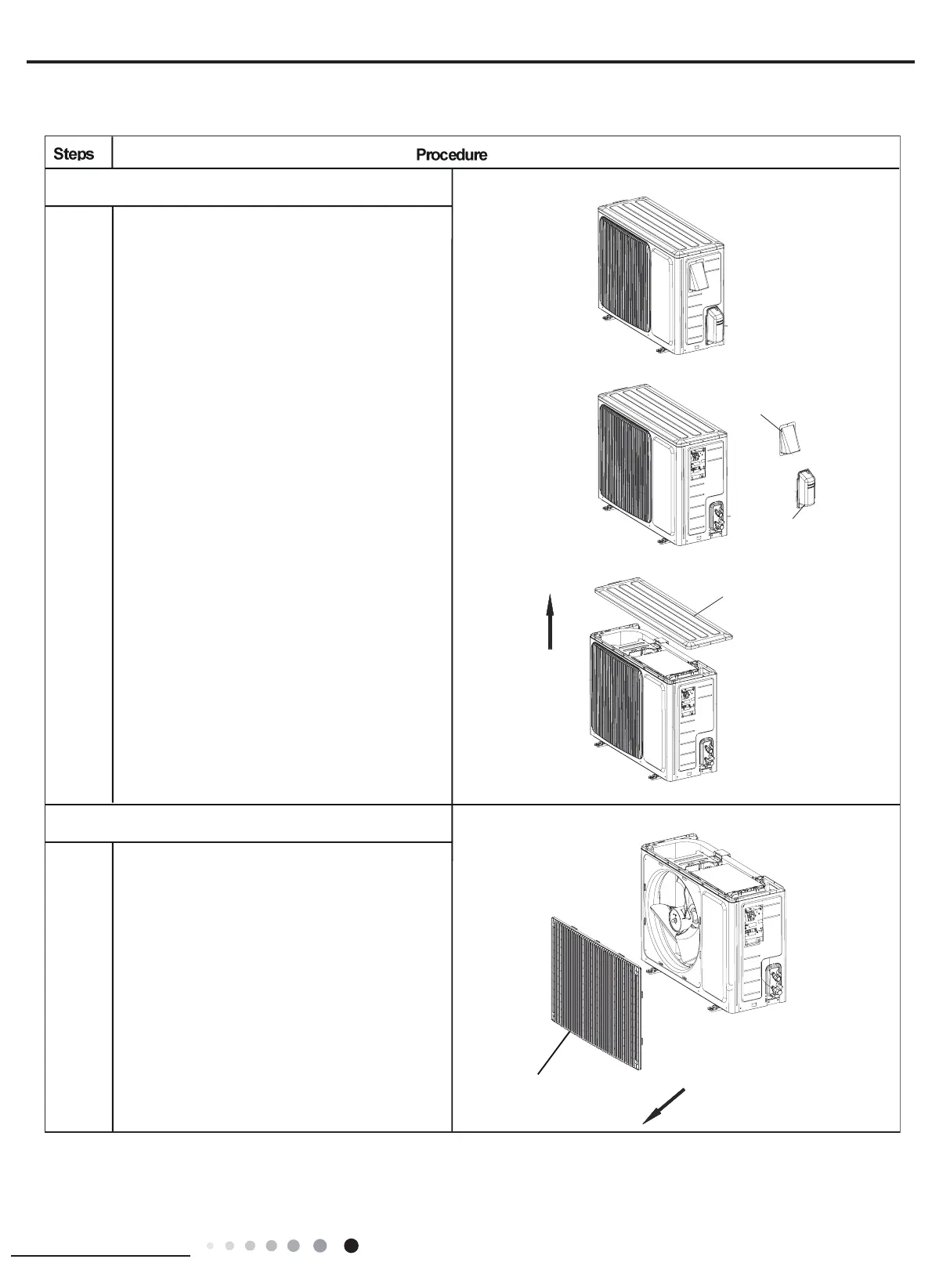

Remove the 3 scre ws connecting the to p
pa nel wi th the front pa nel and the right side
plate, and then remove the top pa nel.
2. Remove grille and p anel
Remove the 2 scr ew s connecting the grille
and the panel, and then remove the grille.
grille
.
Top panel
1.Remove cable cross plate 2 and valve cover
and top panel
Before disassamble.
Remove 3 connection screw fixing cable cross
plate 2 and then remove the Cable cross plate 2.
Remove 1 connection screw fixing valve cover
and then remove the valve cover.
Cable cross plate 2
Valve Cover
Before disassamble.
LI018CO-170P432-1
NOTE: This models haven’t 4-way valve assy.
