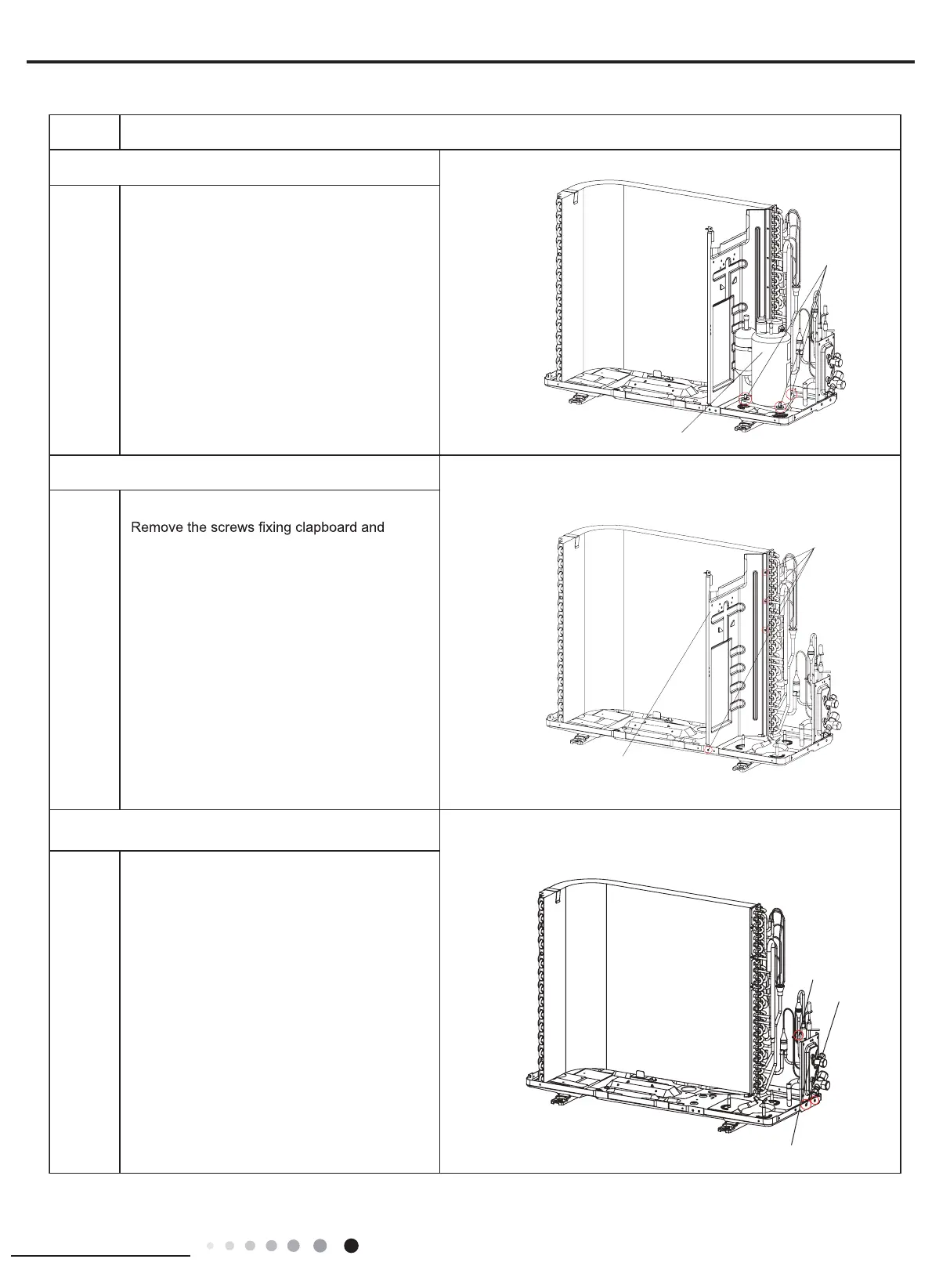

Installation and Maintenance
Service Manual
Foot nuts
Compressor
Remove 3 foot nuts on compressor, and
then remove the compressor.
Note:
Protect the ports of discharge pipe and
suction pipe to avoid foreign objects to
enter it.
10.Remove compressor
Procedure
Step
11.Remove clapboard
Screw
Clapboard
then remove the clapboard.

Remove Valve support sub-assy
Foot nuts
Screw
Valve Support Sub-Assy
Screw off the screws that are locking the
valve support sub-assy. Then remove it.
