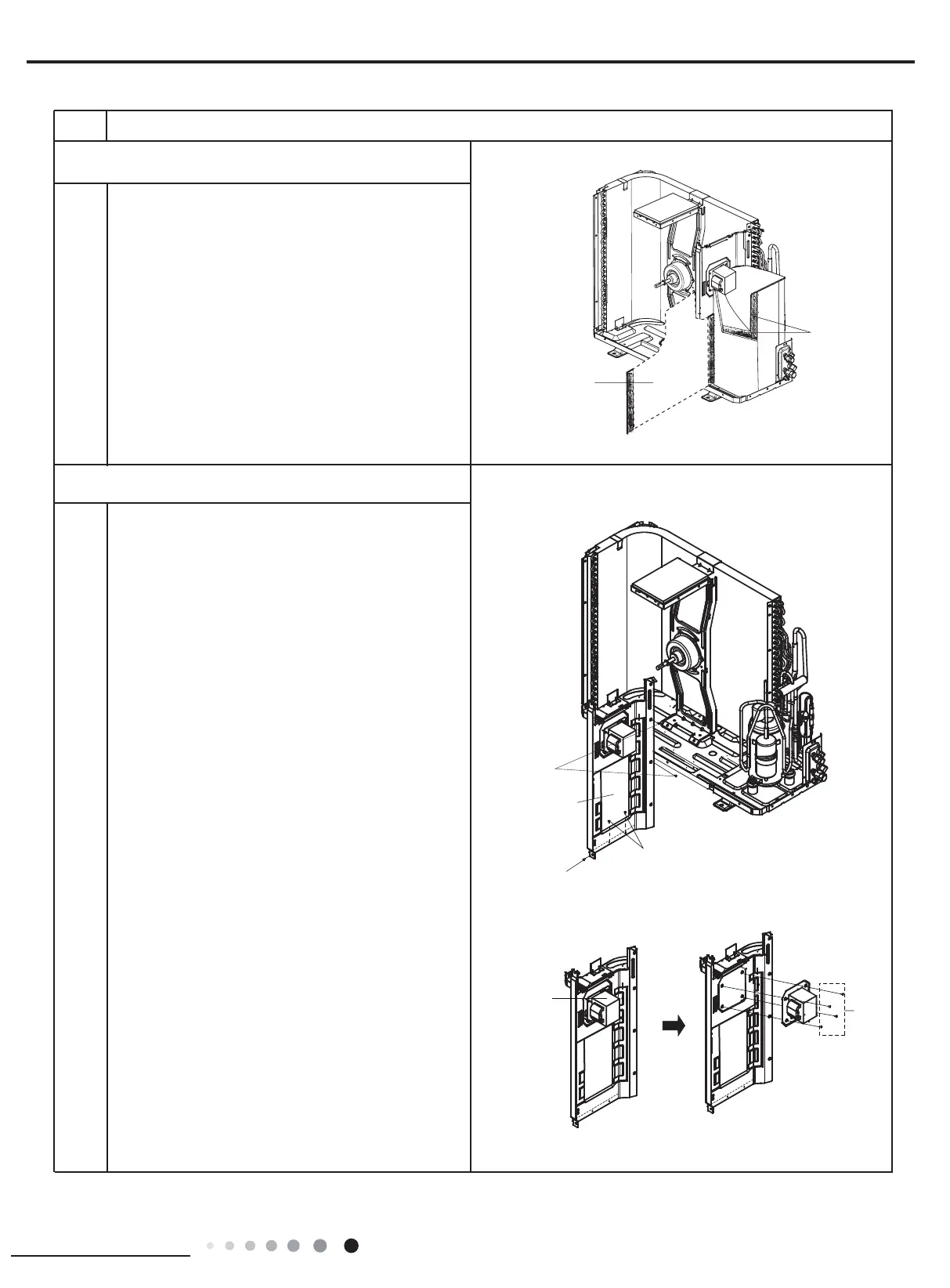

sponge
7.remove the isolation plate and reactor
Remove the 2 screws connecting the isolation
plate and condenser side plate; remove the
3 screws connecting the isolation plate and
chassis, and then remove the isolation plate.
Remove the 4 screws connecting the reactor
and isolation plate, and then remove the reactor
reactor
isolation plate
a
b
screw
screw(Note: these two screws are
at the side of motor support)
screw
screw
6.remove the soundproof sponge.
Tear off the sticking stripe and then remove the
soundproof sponge.
