Lennox Mini-Split Service Manual / Page 245

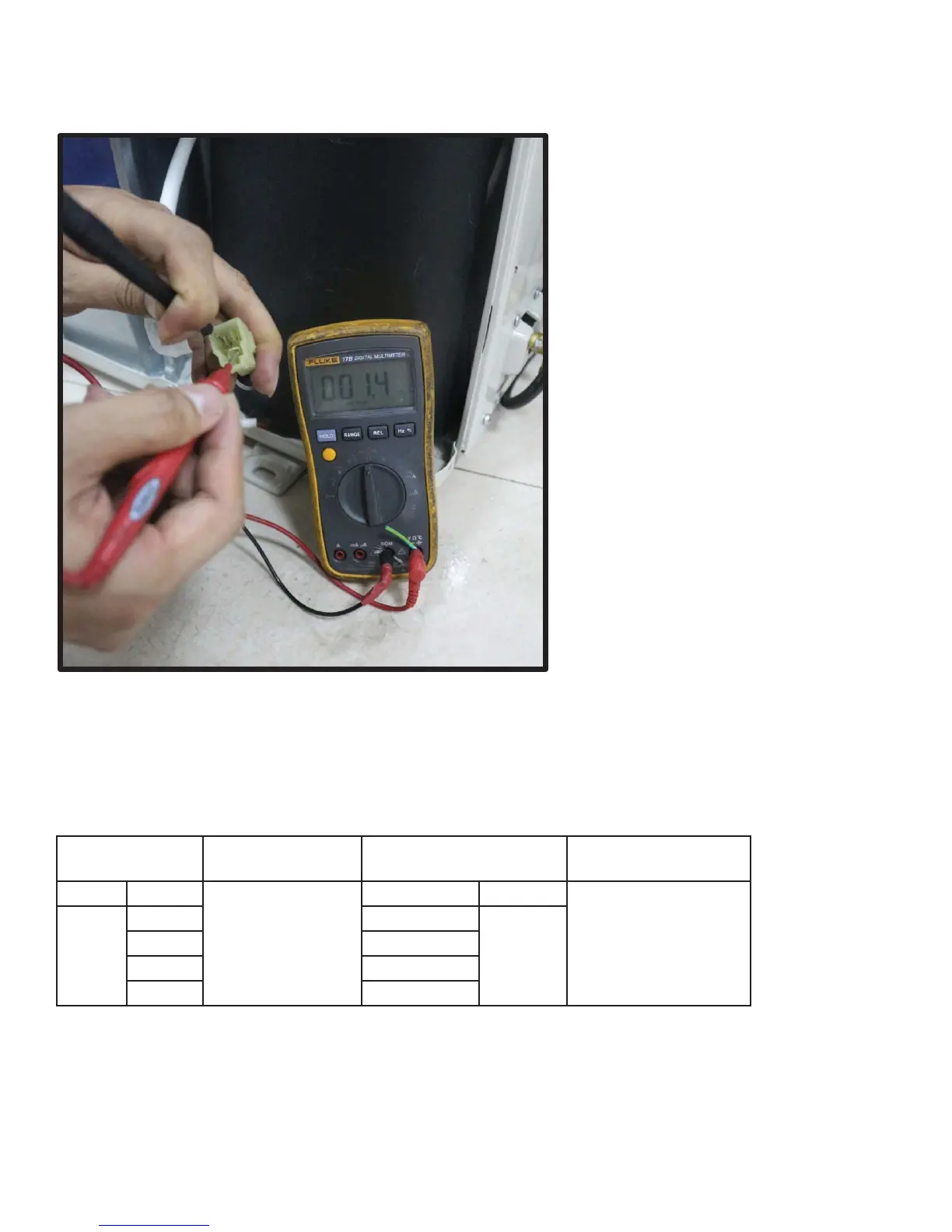

IPM Check

Measure the resistance value of each winding by using the tester.

Turn off the power, let the large capacity electrolytic capacitors discharge completely, and dismount the IPM.

Use a digital tester to measure the resistance between P and UVWN; UVW and N.

Digital Tester

Normal

Resistance Value

Digital Tester

Normal Resistance

Value

(+)Red (-)Black

∞

(Several MΩ)

(+)Red (-)Black

∞

(Several MΩ)

W (+)Red
