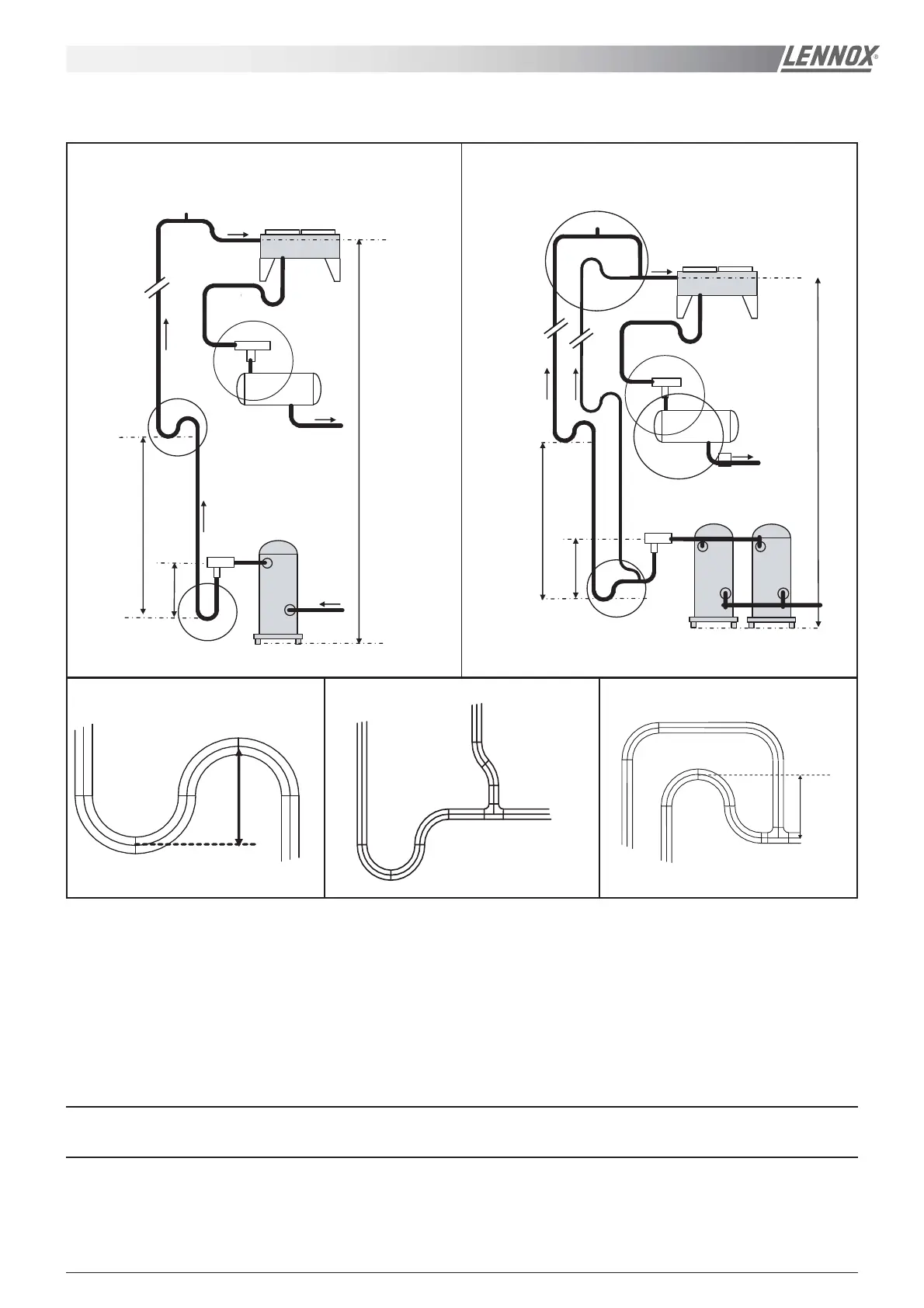

UNITS WITH REMOTE CONDENSER
Unit with remote condenser
without capacity control
Unit with remote condenser
with capacity control
H3
H
1
3
4
H
2
2
2
H4
3
4
H4
H1 : 15 m. maxi
H2 : 5 m. maxi
H3 : 0,3 m. maxi
H4 : 0,15 m. maxi
1 - Lower trap with single tube
2 - Clode coupled trap
3 - Lower trap with double tubes
4 - Higher trap with double tubes
If receiver option : PED declaration class 3
If no receiver option : PED declaration class 1
A
A
WARNING : The liquid level between the condenser and the check valve A must compensate the check valve
pressure drop
