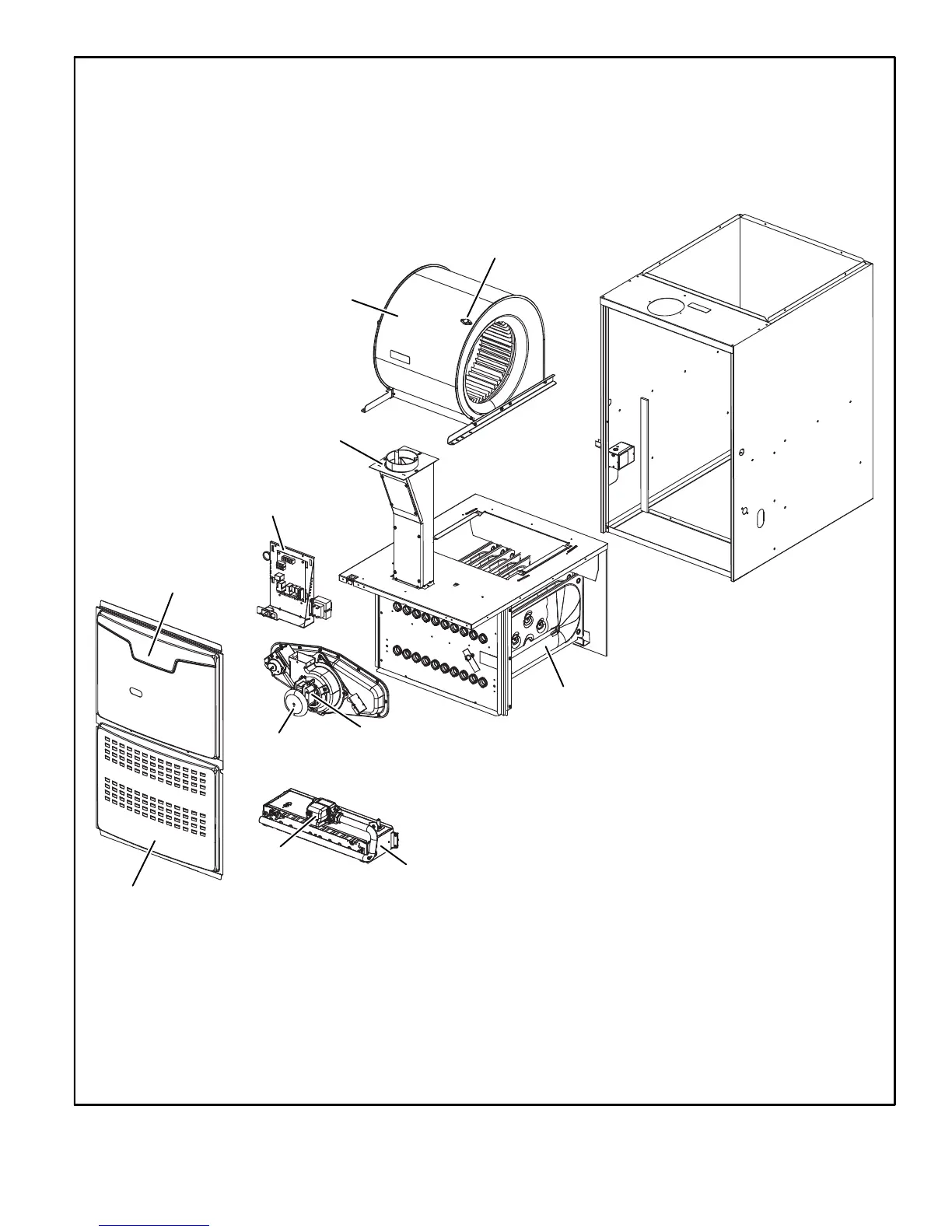

ML180DF PARTS ARRANGEMENT
FIGURE 1
Primary Limit
(under combustion
air inducer)
Control Box
(includes integrated control,
interlock switch and transformer)
Gas Valve
Burner Box
(includes sensor, ignitor
and rollout switches)
Combustion
Air Inducer
Blower Access Panel
Heating Compartment
Access Panel
Heat Exchanger
Flue Chase
Blower Assembly
Secondary Limit
