OPERATION
TIMER
DEF./FAN
ALARM
Temporary button
Operation lamp
Timer indicator
Infrared signal receiver
Alarm indicator
PRE-DEF indicator(cooling and heating type)
or fan only indicator(cooling only type)
MANUAL
Display digital tube
ION indication lamp (optional function): This lamp illuminates when Clean Air
feature is activated.
DEFROST indication lamp (For cooling & heating models only): Lights up
when the air conditioner starts defrosting automatically or when the warm air control
feature is activated in heating operation.
OPERATION indication lamp: This lamp illuminates when the air conditioner is in
operation.
TIMER indication lamp: Lights up during Timer operation.
Temperature indicato
: Displays the temperature settings when the air conditioner
is operational. Displays the malfunction code.

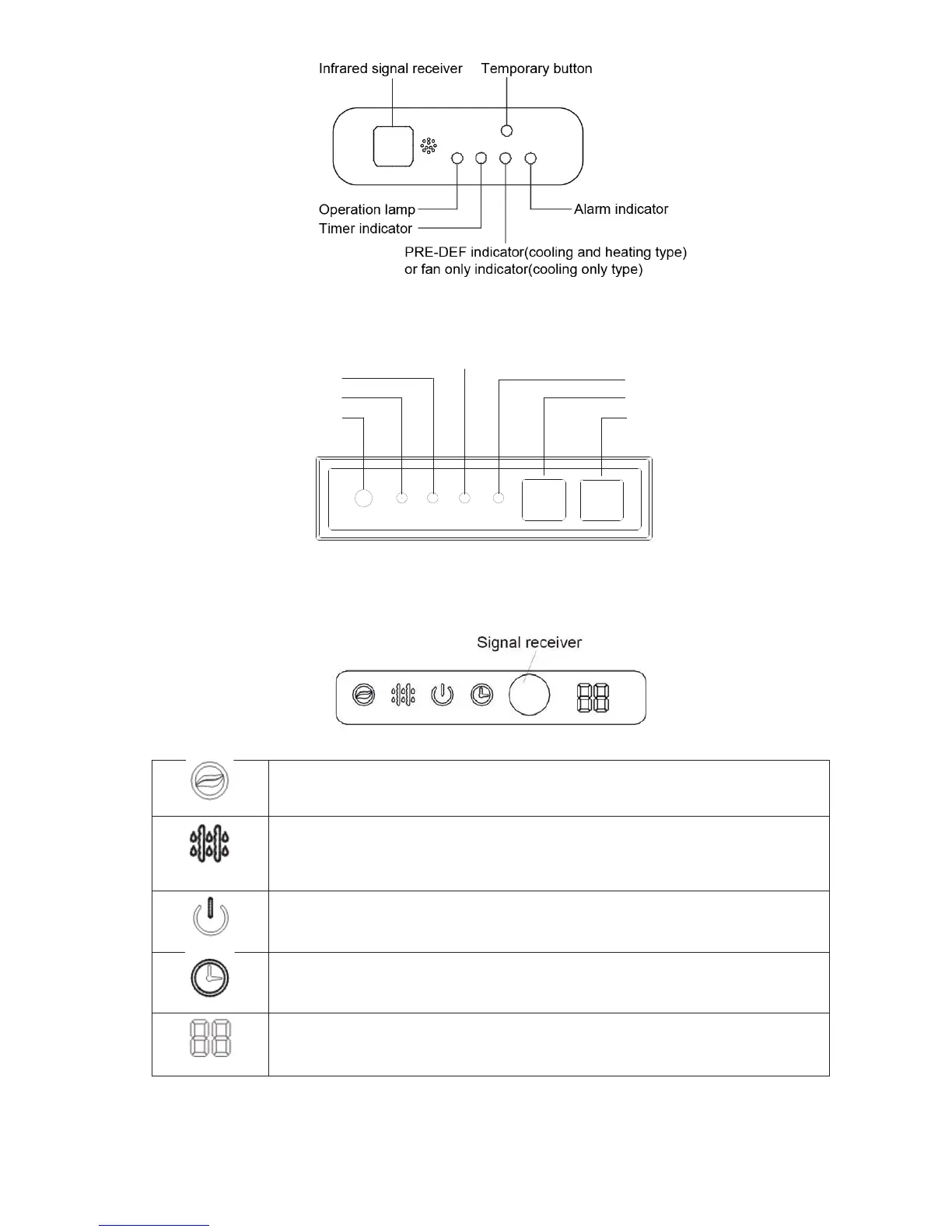

Cassette Unit Display
Ducted Unit Display
Wall-Mounted Unit
