Lennox MMDA036S4-1P - MPA018 S4 M Dimensions

Lennox Mini-Split Service Manual / Page 45

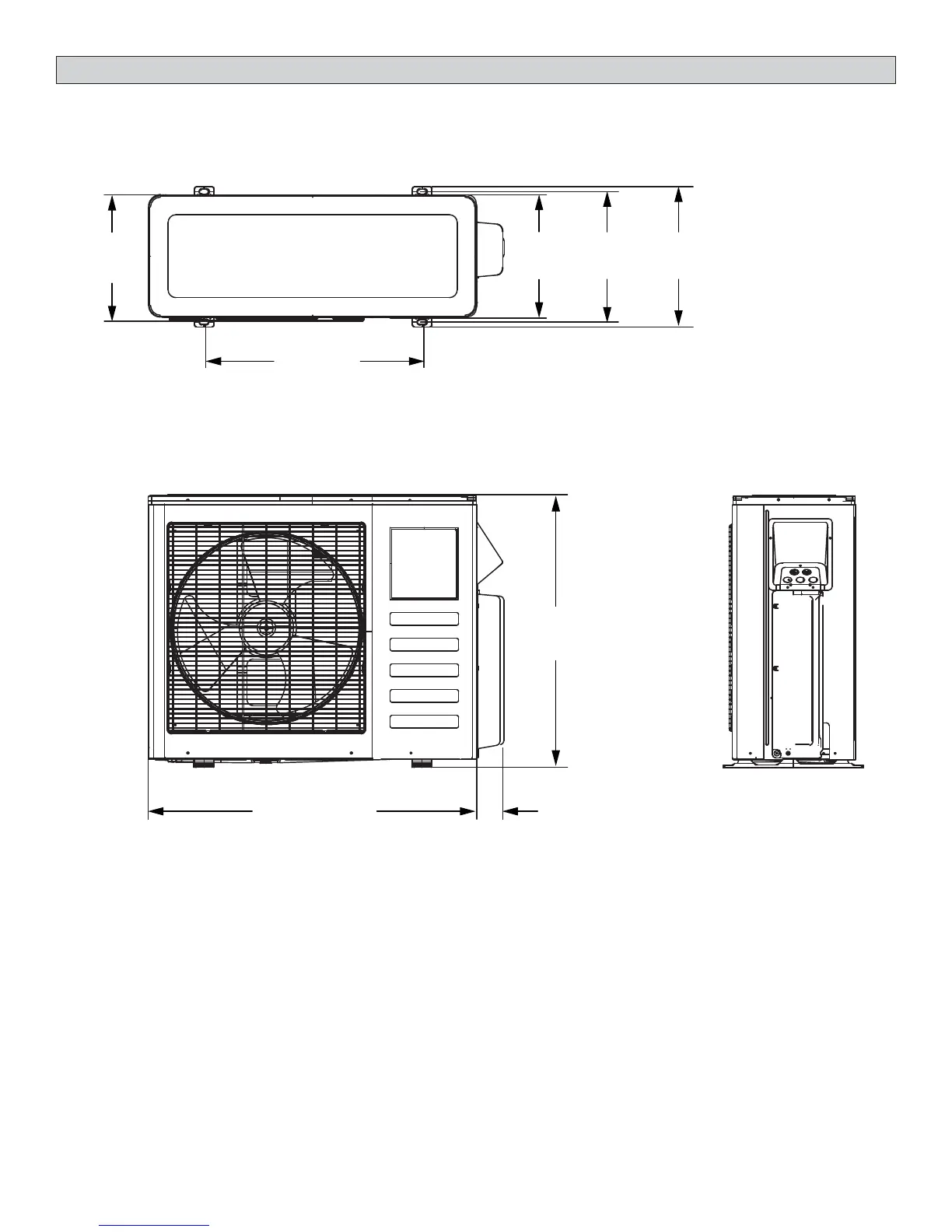

MPA018S4M Dimensions
TOP VIEW
FRONT VIEW SIDE VIEW
MPA018S4M
12-1/4
(312)
27-3/8
(695)
13-1/8
(333)
14-1/8
(359)
12-3/4
(324)
22 (559)
33-1/8 (841) 2-3/4 (70)
