Lennox Mini-Split Service Manual / Page 61

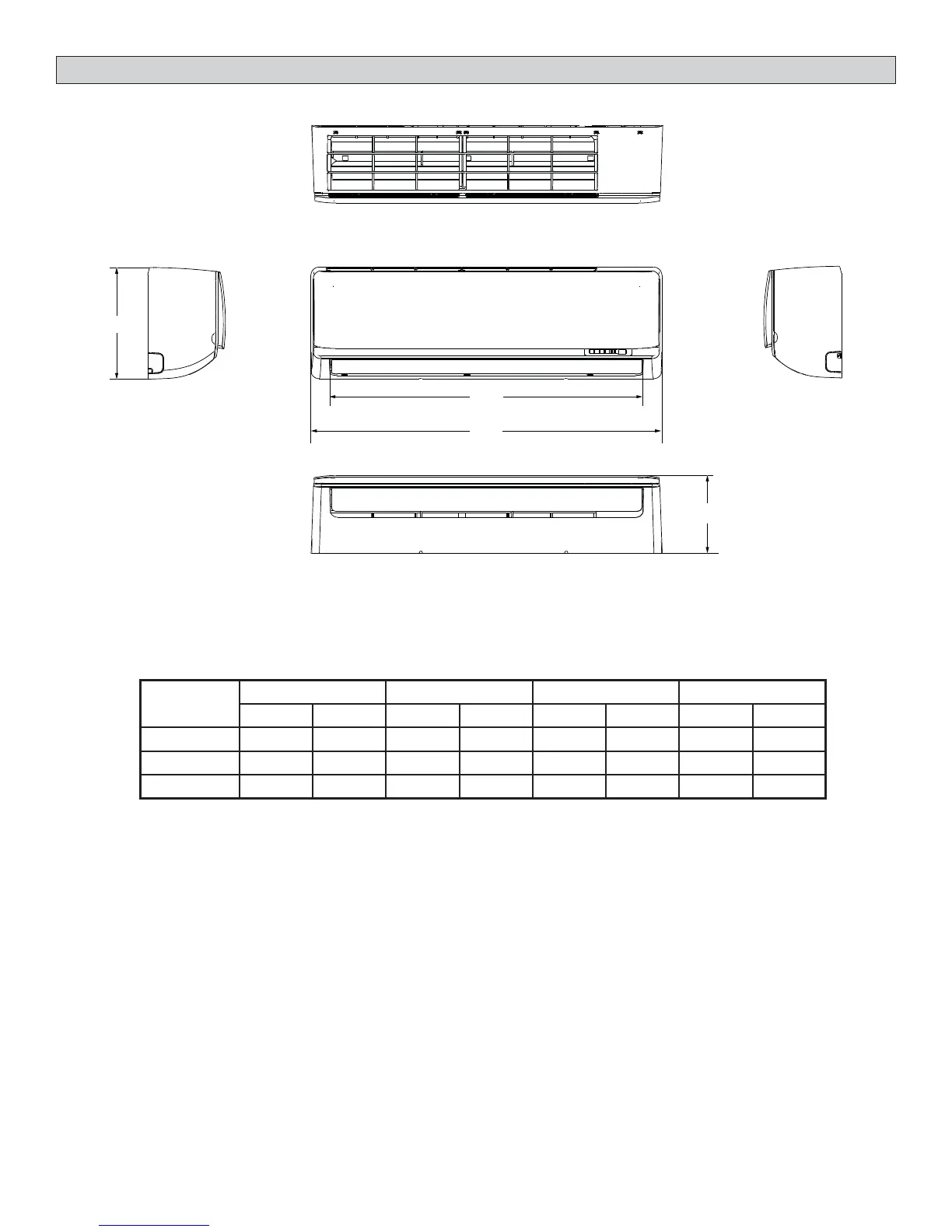

MWMA Indoor Units Dimensions
TOP VIEW
BOTTOM VIEW
SIDE VIEWSIDE VIEW
C
A
B
D
Size
ABCD
in. mm in. mm in. mm in. mm
009, 012 32-7/8 835 11 279 29-1/4 743 7-7/8 200
018 39 991 12-3/8 314 34-3/4 883 8-5/8 219
024, 030 46-3/4 1187 13-1/2 343 42-1/2 1080 10-1/4 260
MWMA009SA, MWMA012S4, MWMA018SA, MWMA024S4, MWMA030S4
