IPM Check

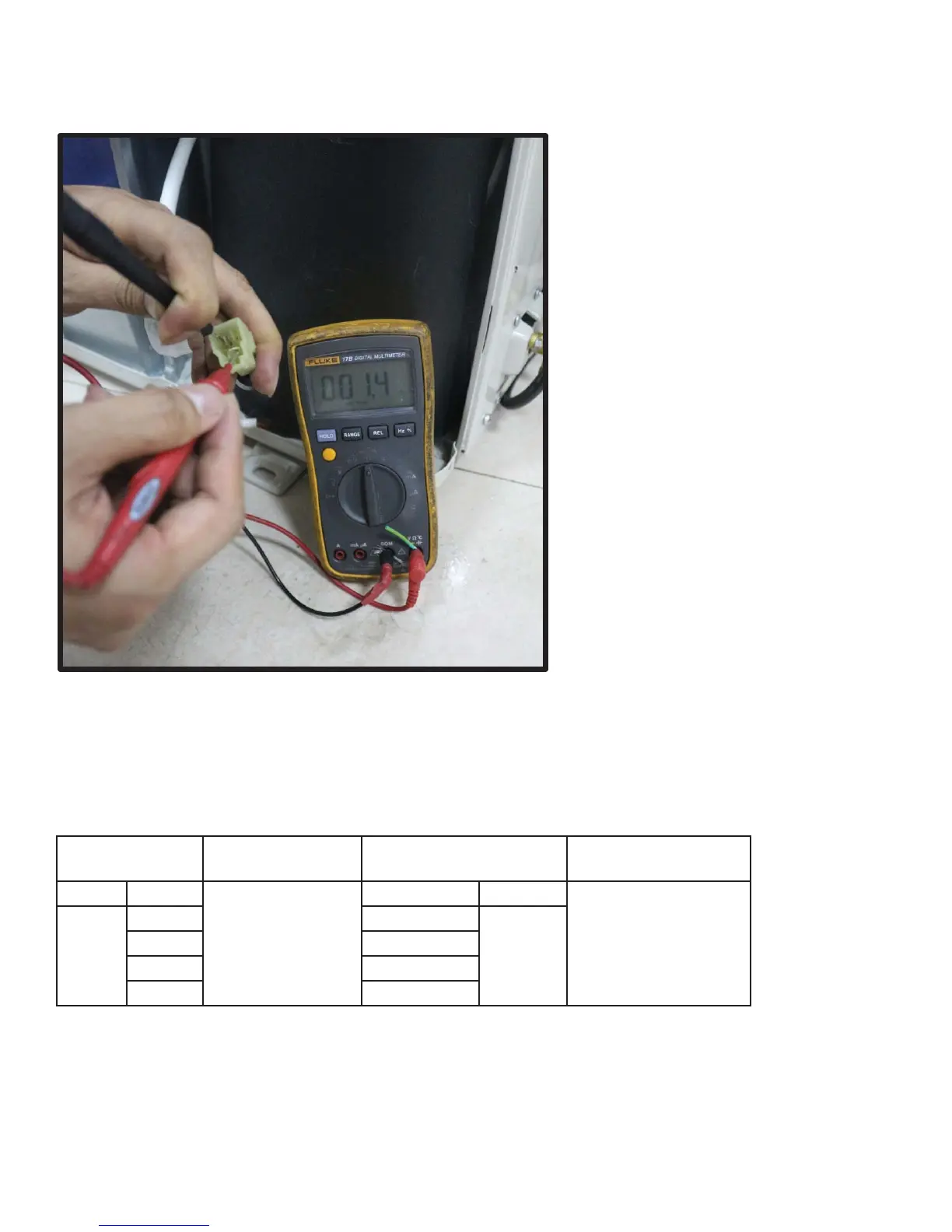

Measure the resistance value of each winding by using the tester.
Turn off the power, let the large capacity electrolytic capacitors discharge completely, and dismount the IPM.
Use a digital tester to measure the resistance between P and UVWN; UVW and N.
Digital Tester
Normal
Resistance Value
Digital Tester
Normal Resistance
Value
(+)Red (-)Black
∞
(Several MΩ)
(+)Red (-)Black
∞
(Several MΩ)
P
NU
N
UV
VW
W (+)Red
