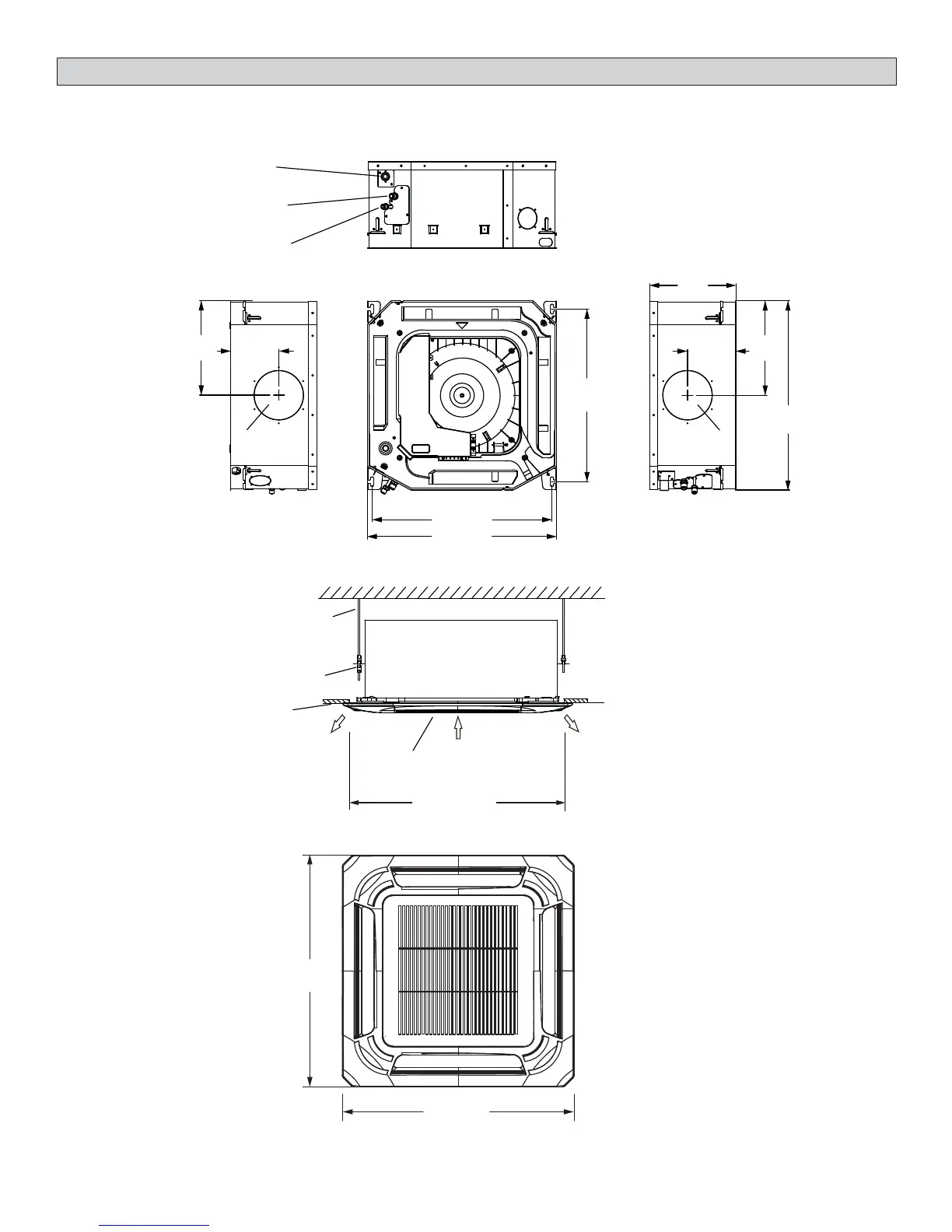

M22A Indoor Cassette Units Dimensions
M22A009S4, M22A012S4, M22A018S4
SIDE VIEW
LEFT SIDE VIEW
RIGHT SIDE VIEW
BOTTOM VIEW (Body)
DRAIN
CONNECTION
LIQUID
PIPE
GAS
PIPE
22-1/2 (572)
21-1/2 (546)
20-5/8
(524)
6 in. (152 mm)
Diameter
5-3/4
(146)
11-1/4
(286)
22-1/2
(572)
10-3/8
(264)
6 in. (152 mm)
Diameter
5-3/4
(146)
11-1/4
(286)
23-5/8 (600)
(Ceiling Opening)
INSTALLATION
HANGERS
LEVELING
ADJUSTMENT
NUT (4)
CEILING
DIFFUSER
PANEL
AIR
OUTLET
AIR
OUTLET
AIR
INLET
SIDE VIEW
BOTTOM VIEW (Panel)
25-1/2
(648)
25-1/2 (648)
