Lennox Mini-Split Service Manual / Page 59

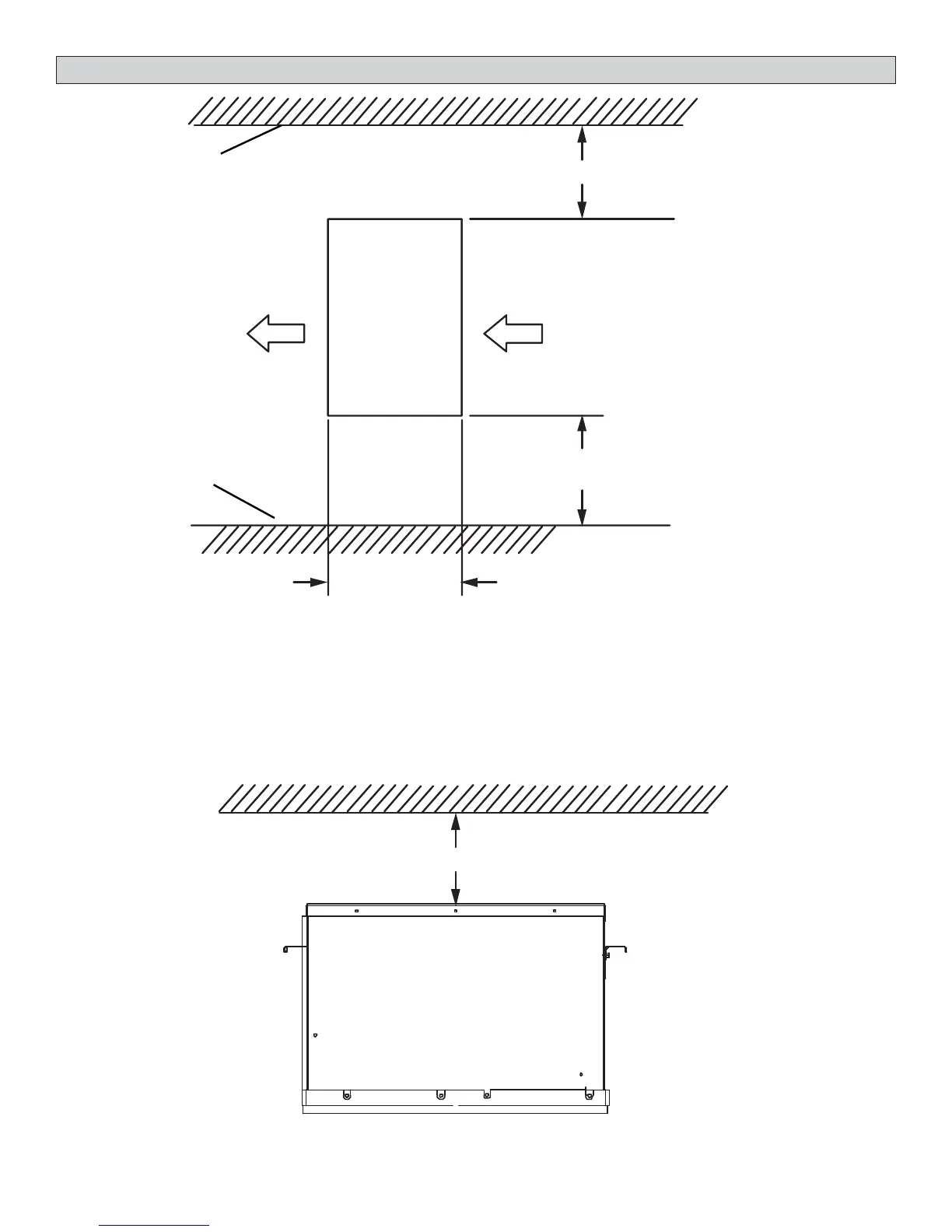

MMDA Indoor Units Clearances

20” (508) Minimum Service Clearance

24” (610) Minimum Service Clearance

Air

Flow

24” (610)

Minimum

Service

Clearance

TOP VIEW

DUCTED

UNIT

SIDE VIEW

1” (25 mm) Minimum Clearance

Ceiling

Wall
