Lennox Mini-Split Service Manual / Page 64

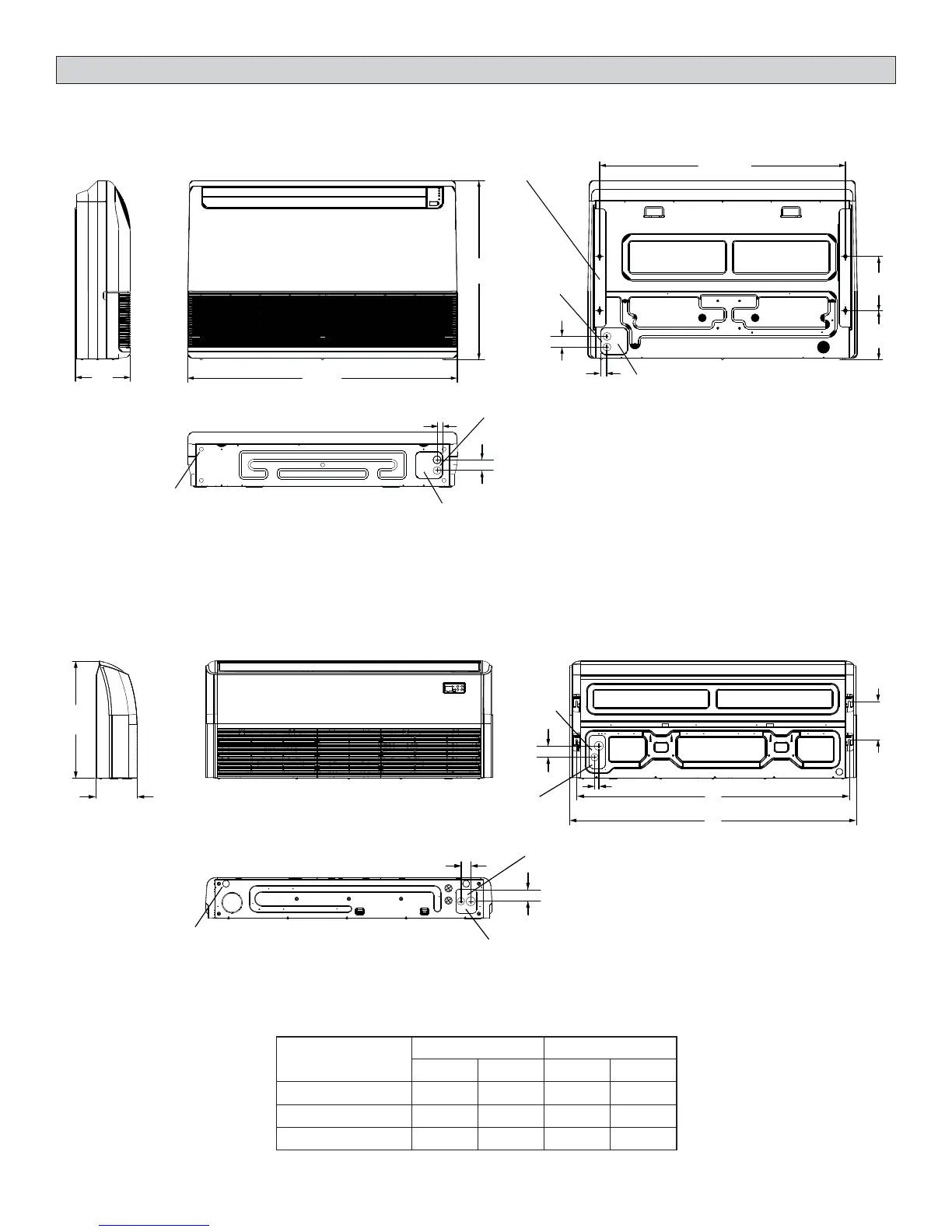

MCFA Indoor Units Dimensions
Model No.
AB
in. mm in. mm
024 42-1/8 1070 39 991
036 50-5/8 1286 47-3/8 1203
048 65 1651 61-3/4 1568
FRONT VIEW
SIDE VIEW
BOTTOM VIEW
BACK VIEW
MCFA012S4, MCFA018S4
8
(203)
26
(660)
35-3/4 (908)
7-7/8
(200)
7-1/8
(181)
39 (991)
Mounting Brackets (2)
(Furnished,
Field Installed)
1-5/8 (41)
3/4 (19)
Refrigerant
Piping
Refrigerant
Piping Opening
4 x 4 (100 x 100)
1-5/8 (41)
3/4 (19)
Refrigerant
Piping
Refrigerant
Piping
Opening
4 x 4 (100 x 100)
Condensate Drain
Outlets (4) each corner
FRONT VIEW
BOTTOM VIEW
SIDE VIEW
BACK VIEW
A
B
8-3/4
(222)
9-1/4
(235)
26-5/8
(676)
MCFA024S4, MCFA036S4, MCFA048S4
2-1/4 (57)
2 (51)
Refrigerant
Piping
Refrigerant
Piping Opening
4-3/4 x 5-1/2 (121 x 140)
Condensate Drain
Outlets (2) each side
Refrigerant
Piping Opening
3-1/2 x 7-1/4 (89 x 184)
2-3/8 (61)
3-1/2 (89)
Refrigerant
Piping
